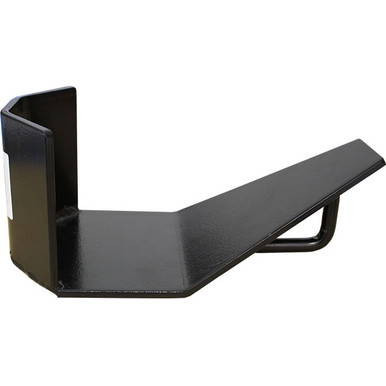

4" Raize It! Plate

4'' Raize It! Plate for Faster, Safer Pole Tent Installation

The 4'' Raize It! Plate is a compact, heavy-duty lifting sled designed to simplify and speed up the process of raising pole tent center and quarter poles. Used in conjunction with a winch system (not included), this plate allows professional installers to raise large tent poles quickly, safely, and with minimal manpower.

Engineered for efficiency, the Raize It! Plate can reduce the time required to raise a single pole to as little as 90 seconds. It is an ideal solution for small to mid-sized tent companies looking to improve installation speed while reducing physical strain on crews.

Why Use a Raize It! Plate?

Raising center and quarter poles is one of the most physically demanding steps in pole tent installation. The Raize It! Plate acts as a stable pulling base, allowing the pole to be lifted vertically from the base rather than pushed into position. This controlled lifting method greatly reduces the risk of pole slippage, especially in wet, muddy, or rainy conditions.

With proper setup, a single installer can safely raise pole tents measuring 30' wide and larger, making this tool a major labor-saving upgrade.

Key Benefits

• Reduces pole lifting time to as little as 90 seconds
• Allows one-person pole tent installation
• Improves safety by eliminating pole slippage
• Ideal for wet, muddy, or challenging ground conditions
• Compact and easy to transport
• Perfect for small and growing tent rental companies

Primary Applications

• Raising pole tent center poles
• Raising pole tent quarter poles
• Large pole tent installations (30' wide and larger)
• Installations requiring reduced labor and faster setup

Specifications

• Plate Diameter Compatibility: Poles up to 4'' (101.6 mm)
• Maximum Lift Capacity: 1,000 lbs (453.6 kg)
• Weight: 20 lbs (9.07 kg)

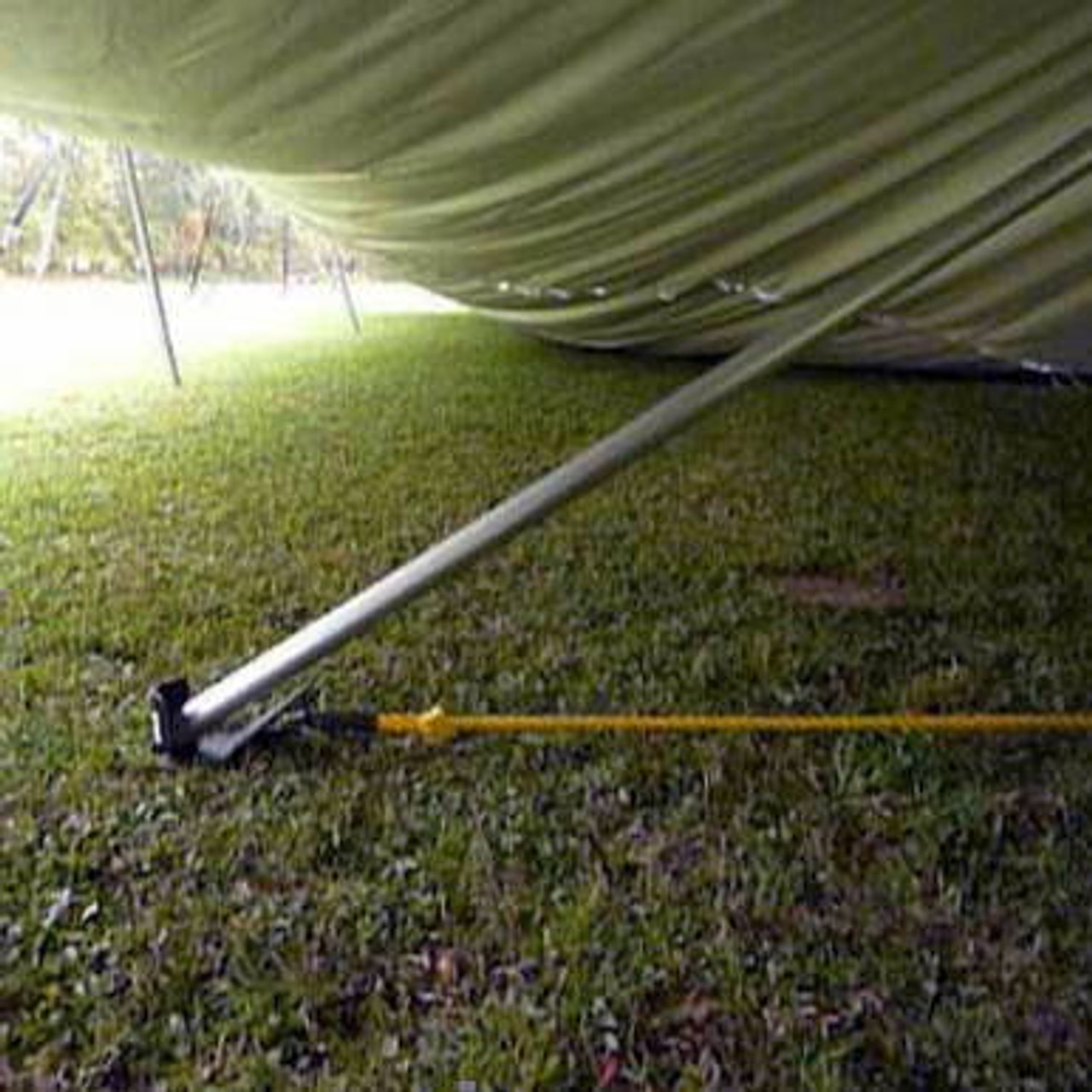

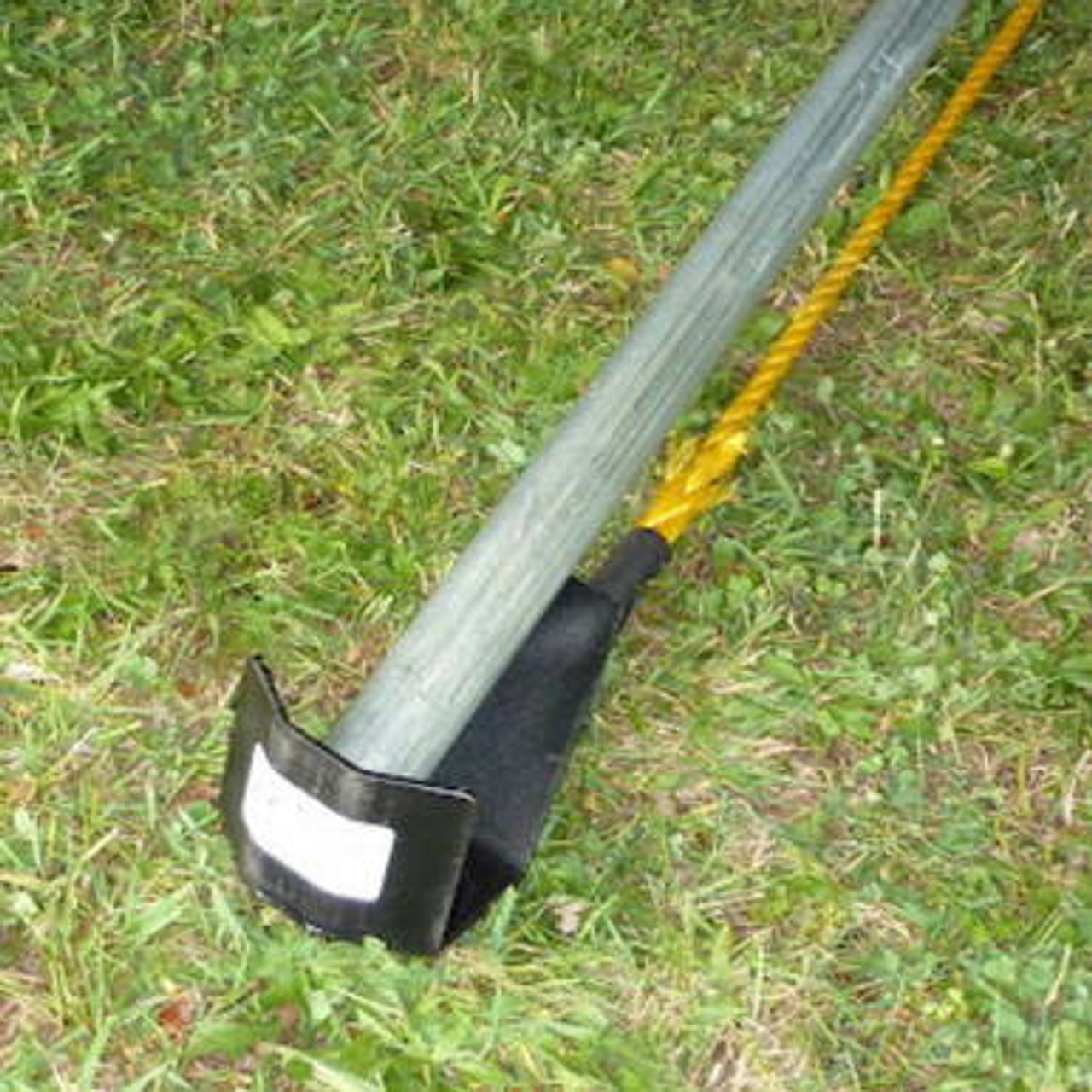

How the Raize It! Plate Is Used

Step 1: Position the Plate

Place the Raize It! Plate at the base location of the center or quarter pole.

Step 2: Attach Winch System

Connect a compatible winch system (not included) to the plate and the pole.

Step 3: Lift the Pole

Use the winch to pull the pole upward in a controlled, vertical motion.

Step 4: Secure the Pole

Once raised, secure the pole into its final position before releasing tension.

Ideal For

• Pole tent rental companies
• Professional tent installation crews
• Single-operator or small crew installations
• Wet or uneven installation environments

Compatibility Notes

• Designed for use with poles up to 4'' in diameter
• Requires a separate winch system for operation
• Not intended as a standalone lifting device

What Is Included

• One 4'' Raize It! Plate

The 4'' Raize It! Plate is a powerful time-saving tool that improves safety, efficiency, and control during pole tent installations. For crews looking to reduce labor demands while maintaining professional results, this plate is an essential addition to any pole tent setup kit.
