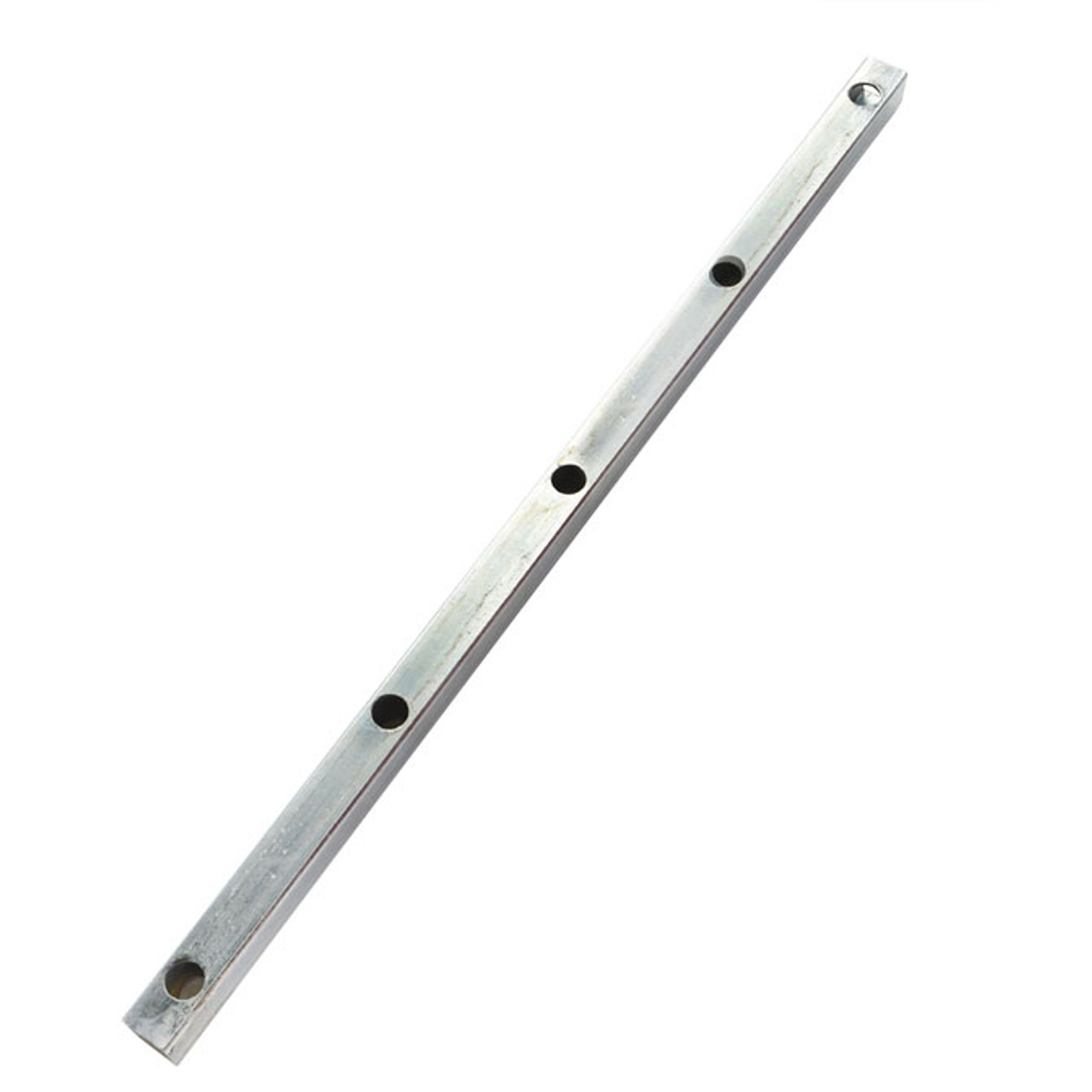

48" Stake Bar

48 inch stake bar for maximum tent anchoring

48 inch Stake Bar is a heavy-duty tent anchoring accessory designed to deliver maximum holding power at a single anchoring point. Built for demanding tent installation conditions, this stake bar allows crews to significantly increase anchoring strength where soil quality, weather exposure, or load requirements demand more than standard staking methods.

For event rental companies and installation crews, the 48 inch stake bar supports more stable tent installations by distributing load across multiple stakes. It is especially useful when working in areas with exceptionally poor soil conditions or where weather effects require additional anchoring confidence during event setup and throughout the rental period.

Why it matters for high-demand installations

Tent stability starts at the ground. The 48 inch stake bar allows multiple stakes to work together at a single anchoring point, creating greater resistance against pullout forces. By increasing total holding power without changing the overall tent layout, crews can adapt to challenging site conditions while maintaining consistent installation workflows.

Key features

• Maximum anchoring capacity at a single tent anchoring point
• Five stake holes for flexible anchoring configurations
• Can be used with three stakes (one at each end and the center position)
• Can be used with all five holes filled for the most holding power
• Designed for exceptionally poor soil or weather-affected installations

How to use and best practices

Step 1: Position the stake bar

Place the 48 inch stake bar at the designated anchoring point along the tent perimeter or anchoring layout. Ensure the bar is aligned to support the intended load direction before driving stakes.

Step 2: Select the stake configuration

Each bar has five holes. Crews can install three stakes using one at each end and the center position, or fill all five holes with stakes to achieve maximum tent anchoring. Choose the configuration based on soil conditions, weather exposure, and installation requirements.

Step 3: Drive stakes evenly

Drive stakes through the selected holes using standard stake driving procedures. Even spacing and consistent depth help distribute load across the entire stake bar, supporting a more stable tent installation.

Step 4: Connect to the tent anchoring system

Once stakes are installed, connect the anchoring point to the tent using your standard anchoring method. Maintaining consistent placement across multiple installations can improve efficiency during event setup and simplify teardown.

Specifications

• Dimensions: 48 inch L x 2 inch W x 2 inch H (1.2 m x 5.1 cm x 5.1 cm)
• Hole diameter: 1 1/4 inch (3.2 cm)
• Weight: 23.4 lbs (10.6 kg)

Ideal for

• Event rental companies requiring maximum anchoring strength
• Tent installation in areas with poor or unstable soil conditions
• Installations exposed to higher weather-related loads
• Crews standardizing heavy-duty anchoring solutions across large events
• Situations where distributing load across up to five stakes improves overall stability
