7" Raize It! Plate

7'' Raize It! Plate for Efficient Pole Tent Lifting

The 7'' Raize It! Plate is a compact, heavy-duty lifting aid designed to simplify the process of raising large pole tent center and quarter poles. Used together with a winch system (not included), this plate allows a single installer to safely and efficiently raise poles measuring between 4'' and 7.5'' in diameter.

Built for professional tent crews and rental companies, the Raize It! system can lift up to 1,000 lbs, making it possible for one person to raise tents 30' wide or larger with controlled precision and reduced physical strain.

Why the 7'' Raize It! Plate Is Essential

Raising large-diameter poles is one of the most demanding aspects of pole tent installation. The 7'' Raize It! Plate provides a stable pulling base that allows poles to be winched vertically into position rather than pushed manually. This greatly reduces the risk of slippage and improves safety—especially in wet, muddy, or rainy conditions.

Its compact size also makes it easy to transport and store, making it a practical solution for crews working across multiple job sites.

Key Benefits

• Allows one-person lifting of large pole tent poles
• Supports poles from 4'' to 7.5'' in diameter
• Reduces installation time and labor requirements
• Improves safety by minimizing pole slippage
• Ideal for wet or challenging ground conditions
• Compact, portable, and easy to store

Primary Applications

• Raising pole tent center poles
• Raising quarter poles on large pole tents
• Single-operator tent installations
• Large pole tent setups (30' wide and larger)

Specifications

• Compatible Pole Diameters: 4'' to 7.5'' (101.6 mm to 190.5 mm)
• Maximum Lift Capacity: 1,000 lbs (453.6 kg)
• Weight: 20 lbs (9.07 kg)

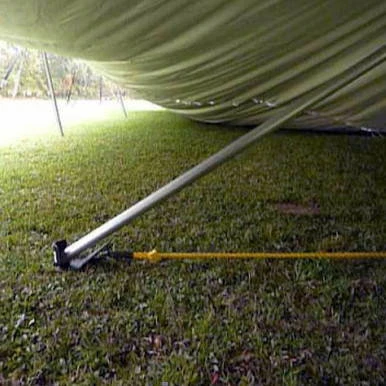

How the Raize It! Plate Is Used

Step 1: Insert the Pole Pin

Insert the pole pin into the tent top as required for the installation.

Step 2: Position the Plate

Place the base of the pole onto the Raize It! Plate at the correct ground location.

Step 3: Attach the Winch

Connect a compatible winch system (not included) to the plate and pole.

Step 4: Winch the Pole Into Position

Use the winch to raise the pole smoothly and vertically into place.

Ideal For

• Pole tent rental companies
• Professional installation crews
• Large-diameter pole tent systems
• Installations requiring reduced labor

Compatibility Notes

• Requires a winch system for operation (not included)
• Designed for large pole tent center and quarter poles
• Not intended for use without proper lifting equipment

What Is Included

• One 7'' Raize It! Plate

The 7'' Raize It! Plate is a reliable, labor-saving solution for safely lifting large pole tent poles. By improving control, safety, and efficiency, it helps crews complete installations faster while maintaining professional results—even in difficult weather or ground conditions.
