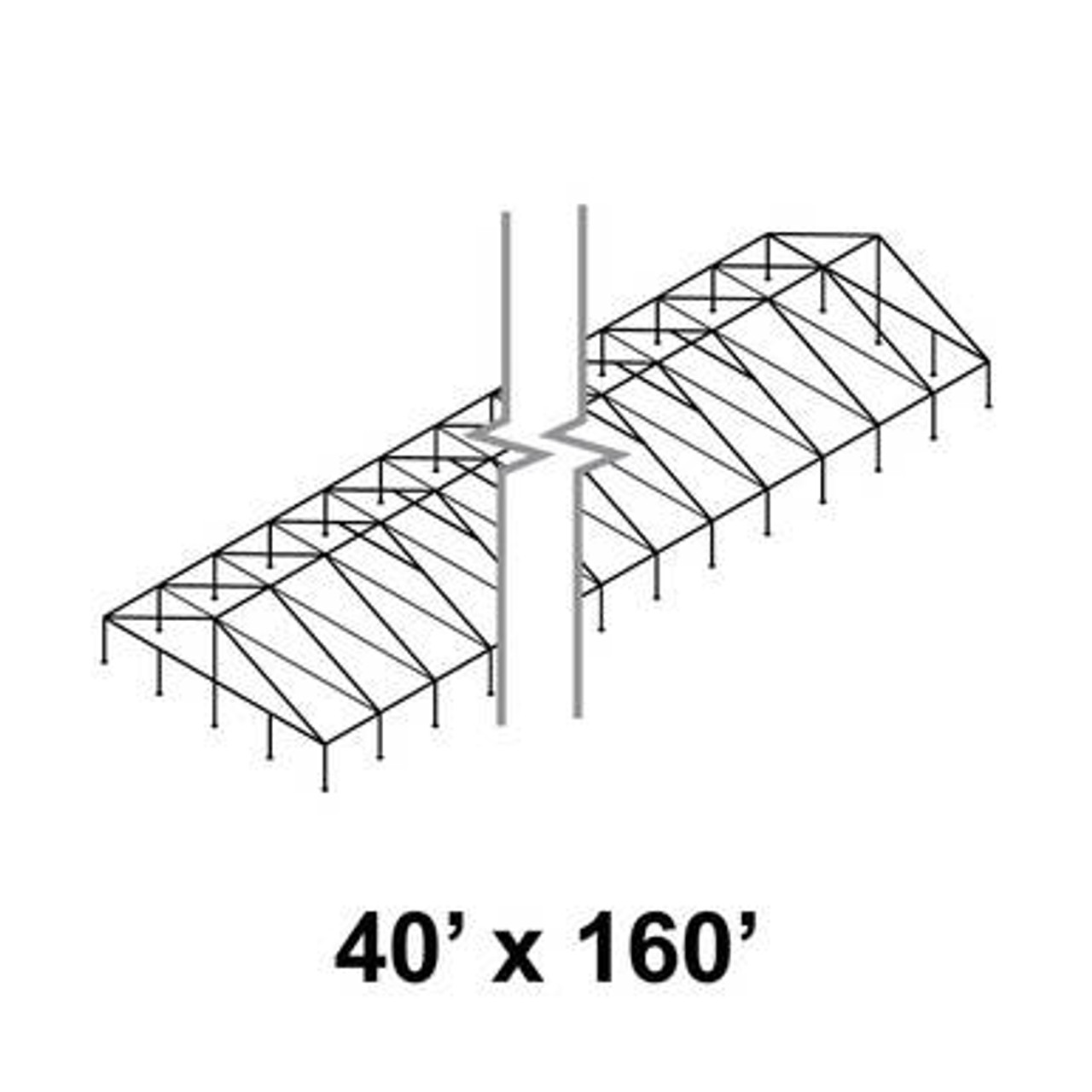

The 40' x 160' Gable Series Frame is an ultra-heavy-duty commercial hardware system designed to support a massive 6,400-square-foot "house-style" canopy. For rental companies and industrial event planners, this frame serves as the essential structural skeleton for an expansive, high-capacity gable-ended shelter. Unlike traditional hip-roof frames that slope on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a professional, seamless architectural connection between distant permanent structures. This kit includes all the necessary aluminum rafters, spreaders, and reinforced steel fittings required to maintain a rigid 160-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the entire 160-foot length. Because this is a frame-supported system, it does not require center poles, maximizing the 6,400 square feet of usable space for massive banquet dining, multi-zone corporate events, or large-scale industrial storage. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and high-capacity rental operations.

Why the 40' x 160' Gable Series Frame Matters

The 40' x 160' Gable Series Frame matters because it offers a high-capacity functional solution for exceptionally long, wide-span spaces. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 40-foot width provides massive interior depth, making it ideal for double-sided banquet seating, large equipment storage, or sheltered vehicle access. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for specialized linear events.

Key Features

• Clear-Span Elongated Design: Provides a completely open 40' x 160' interior with no center poles, maximizing space for large equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over an immense 160-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Large-Scale Hospitality Pavilions: Perfect for creating wide, weather-protected areas for thousands of guests at major festivals or corporate retreats.
• Industrial Logistics Shelters: Provides a professional, "built-in" look for long-term storage or loading dock extensions in high-capacity environments.
• Massive Exhibition Tunnels: The gable ends and 160-foot length create a high-impact "walk-through" experience for trade shows or product launches.
• Temporary Municipal Shelters: Ideal for creating large, open-span areas for community events or emergency response centers.

Compatibility and Inclusions

The 40' x 160' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 160-foot gable inventory.
