6'8" - Aluminum Double Tube
6'8" - Aluminum Double Tube
Write a Review
Write a Review
6'8" - Aluminum Double Tube
View Description & Specifications
sku: 2ADT80
- SKU:
- 2ADT80
- Weight:
- 12.00 LBS
- Tent Series:
- Frame Tents
Choose Options
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
Overview
Product Description

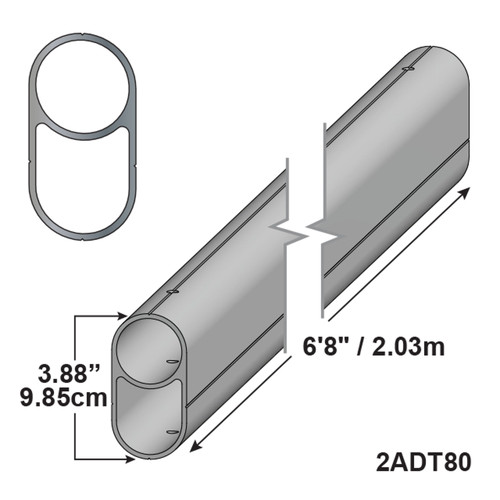

CELINA's West Coast aluminum double tube is constructed from a custom extrusion which measures 2.0" x 3.875". The tubing measures 1.750" (Inside Diameter) with a wall thickness of 0.125" or 1/8". The aluminum has a strength of 35,000 PSI. This tubing is drilled to accept West Coast frame tent fittings which are pinned in place using R-Pins, Pin & Bail, or bolts. This tubing is color coded for easy identification. The color painted inside this tubing is brown.
| Aluminum Double Tube Specifications | ||
| Outside Diameter | 2" x 3.875" | |
| Inside Diameter | 1.75" | |
| Wall Thickness | 0.125" Custom Extrusion | |
| Weight | 1.759 lbs/ft | |
| Strength | 35000 PSI | |
Specifications
Width
15ft. / 4.5m
Length
15ft. / 4.5m
Area
225 ft² / 20 m²
Eave Height
7' / 2.13m | 8' / 2.4m
Overall Height
11'4" / 3.45m | 12'4" / 3.8m
Pitch
3'6" / 1.07m
Complete Weight Aluminum
210 Lbs. / 95 Kg. | 215 Lbs. / 98 Kg.
Complete Weight Galvanized
232 Lbs. / 105 Kg. | 238 Lbs. / 108 Kg.
Series / Brand
Classic
Class
Pole
Center Pole
Yes
Style / Shape
Traditional
Expandable
No
Custom Printing Available
Yes
Fabric Material
PVC Coated Polyester
Fabric Material Weight
16 oz. / yd2 / 540 gsm
Fabric Translucency
Blockout
Water Repellency
Waterproof
Flame Resistant
Yes
UV Resistant
Yes
Mold and Mildew Resistant
Yes
Frame / Pole Material
Aluminum OR Galvanized
Longest Component
7'10"/ 2.4m | 8'10" / 2.7m
Persons required for setup
2
Occupancy
23 Sit Down Dinner - 38 Cathedral Seating
Literature
Warranty
CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
If a printing option is chosen. The following warranty will apply to printing:
Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
