Gable Right Corner Fitting

Gable Right Corner Fitting for Classic Frame Tents

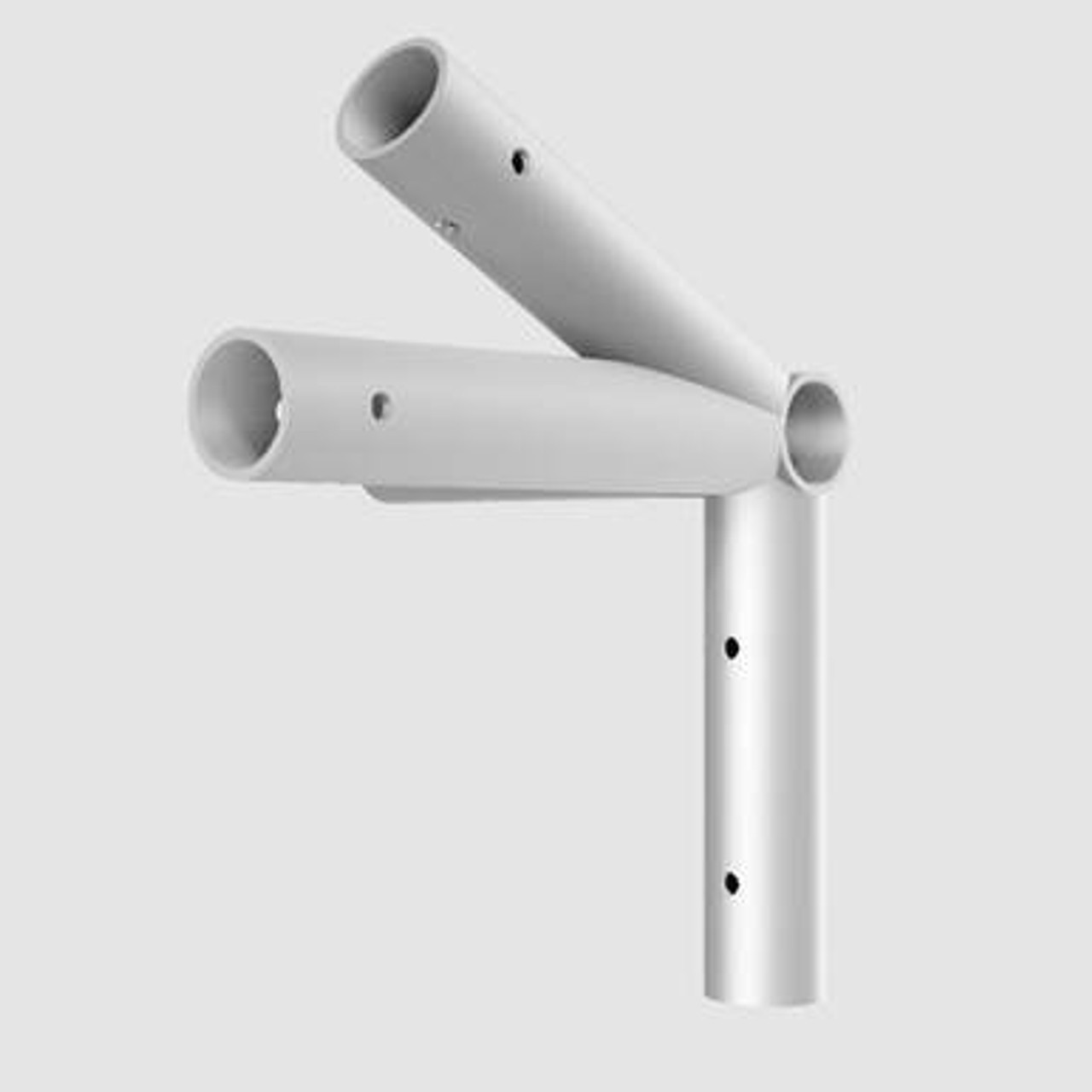

The Gable Right Corner Fitting is a specialized structural component designed for Classic Frame gable-style tent systems. Built for West Coast style frame tents, this fitting is used at the gable end of the structure to connect key frame elements and create the distinct peaked gable design. It is a required component for proper assembly and alignment in gable frame tent configurations.

For event rental companies and installation crews, this fitting ensures that the gable end of the tent maintains its shape and structural integrity during setup, use, and teardown. It is specifically designed to work in tandem with the matching left-side fitting, making it essential for complete and accurate frame assembly.

Why This Gable Right Corner Fitting Matters

In gable frame tent systems, each corner plays a critical role in supporting the overall structure. The gable right corner fitting is engineered to handle multiple connection points at the end of the tent, helping distribute load evenly and maintain proper frame alignment. Because gable corners are directional, using the correct right-side fitting ensures proper assembly and prevents misalignment during tent installation.

Using the correct fitting also improves installation efficiency by allowing crews to assemble the frame without adjustments or forced connections, resulting in a more stable and professional setup.

Key Features

• Designed for West Coast style Classic Frame gable tents
• Used specifically on the right side of the gable end for proper orientation
• Works in conjunction with a gable left corner fitting for complete assembly
• Connects rafters, spreaders, and perimeter tubing at the gable end
• Manufactured from 1.25" schedule 40 steel pipe for durability
• Zinc-plated finish helps resist corrosion and weather exposure
• Supports consistent alignment and load distribution across the frame
• Designed for repeated use in rental and event environments

How to Use and Install

1. Identify the Gable End

Locate the gable end of the tent frame where the fitting will be installed. Ensure you are using the correct right-side fitting based on orientation.

2. Attach to Rafters

Slide the rafters onto the protrusions of the fitting. Align the tubing with the connection points to ensure proper fit.

3. Connect Perimeter Spreaders

Attach spreaders and perimeter tubing to the remaining connection points. Proper alignment ensures even load distribution across the frame.

4. Secure with Pins

Insert pin fasteners through aligned holes to lock each connection in place. Ensure all pins are fully secured before proceeding.

5. Complete Frame Assembly

Continue assembling the remaining frame components and proceed with standard tent installation, including anchoring and tensioning.

Specifications

• Product Type: Gable right corner fitting
• Compatibility: West Coast style Classic Frame gable tent systems
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc-plated for corrosion resistance
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Weight: 5.0 lbs
• Strength: 45,000 PSI
• SKU: F14GRC

Compatibility and Important Notes

• Used only on the right side of gable frame tent ends
• Requires a matching gable left corner fitting for proper installation
• Typically two right and two left fittings are required per tent
• This is a replacement or individual component, not a complete frame system
• Ensure compatibility with existing tubing and fittings before installation

Ideal For

• Event rental companies maintaining gable frame tent inventory
• Frame tent assembly and repair projects
• Large-scale gable tent installations
• Install crews focused on accurate and efficient setup workflows
• Applications requiring reliable gable end connections
