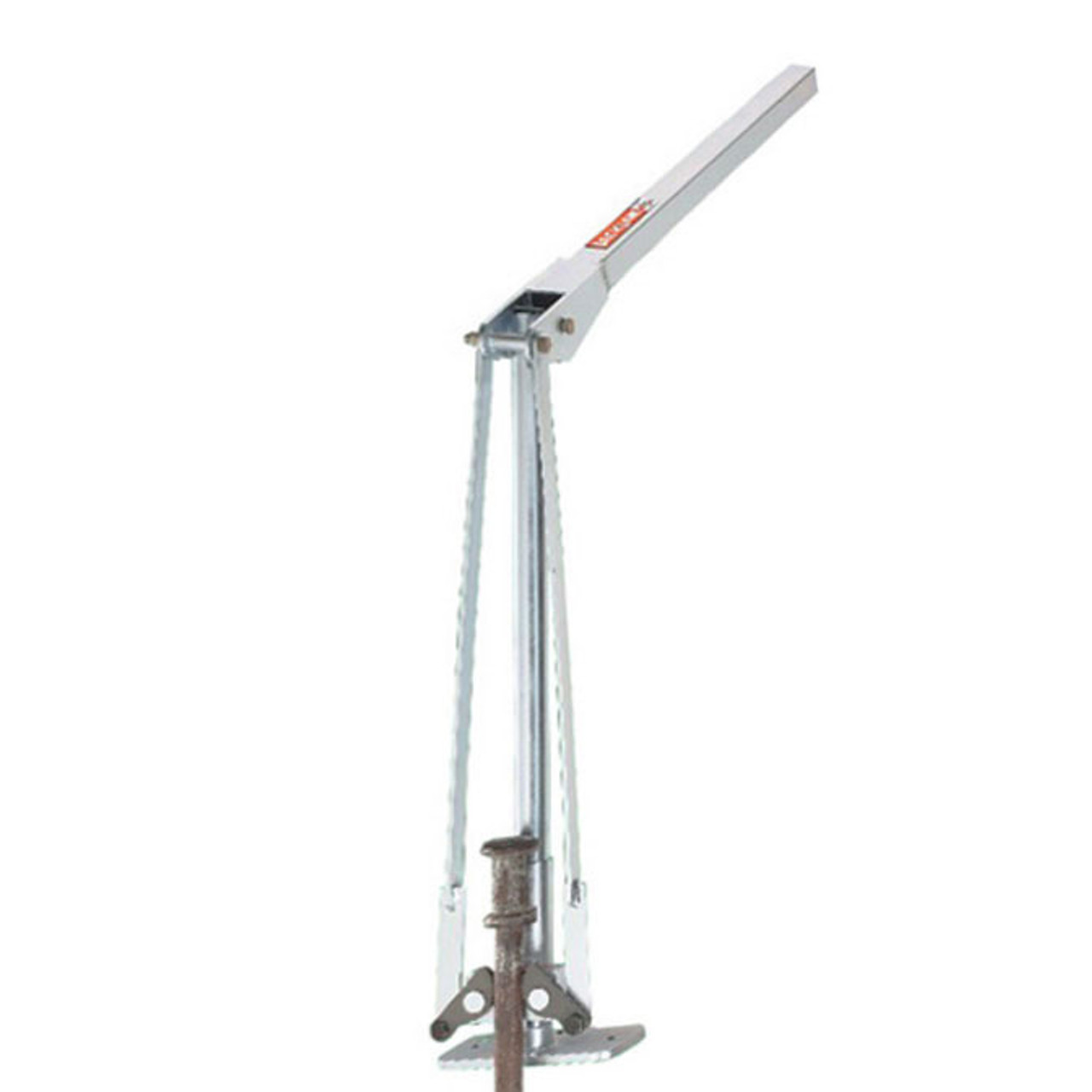

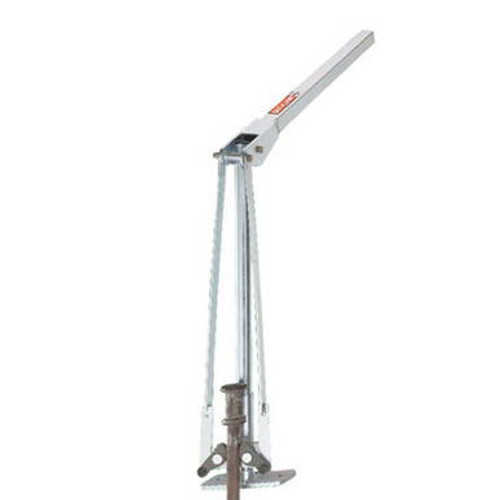

JackJaw 302 Stake Puller

JackJaw 302 Stake Puller for Fast and Safe Tent Teardown

JackJaw 302 Stake Puller is a professional-grade tool designed to remove tent stakes or rebar with diameters ranging from 3/4 inch (19.05 mm) to 1 1/4 inch (31.75 mm). Built for speed, safety, and efficiency, this stake puller is widely used by tent rental professionals and install crews who need consistent performance during teardown. At only 26 lbs (11.79 kg), it offers a balance of portability and pulling power for demanding field conditions.

The sturdy lever arm delivers a 16-to-1 mechanical advantage, allowing operators to generate significant lifting force with controlled downward pressure. Its patented jaw mechanism provides a positive grip on the stake, helping prevent back and shoulder strain that can result from sudden release or whiplash common with other stake pullers.

Why the JackJaw 302 Matters

Stake removal can be one of the most physically demanding parts of tent teardown, especially when stakes are deeply set, angled, or flush with the ground. The JackJaw 302 is engineered to pull stakes straight out of the surface, reducing resistance, protecting reusable stakes from bending, and helping prevent damage to surrounding surfaces such as asphalt. This controlled extraction supports safer, faster teardown and more efficient workflow.

Key Features

• Removes tent stakes or rebar with diameters from 3/4 inch to 1 1/4 inch
• Lightweight design at 26 lbs (11.79 kg) for easier handling
• Provides a 16-to-1 mechanical advantage through lever operation
• Patented jaw mechanism delivers a secure, positive grip
• Designed to reduce back and shoulder strain during stake removal

How the JackJaw 302 Works

Step 1: Position the Puller

Place the JackJaw 302 over the exposed portion of the stake or rebar. For stakes driven at an angle, the puller can be leaned to align with the stake shaft.

Step 2: Engage the Jaws

Align the jaws around the stake. The patented mechanism grips firmly as force is applied, maintaining consistent contact throughout extraction.

Step 3: Apply Downward Force

Apply downward pressure on the handle. A 100 lb (45.36 kg) down force generates approximately 1600 lbs (725.75 kg) of upward pulling force and 3200 lbs (1451.5 kg) of gripping force on the stake.

Step 4: Extract the Stake

The stake is pulled straight out of the ground, helping prevent bending, surface damage, or sudden release.

Construction and Design

Each JackJaw 302 is manufactured from heavy gauge steel plate and tubing to withstand everyday professional use. The design allows the puller to remove stakes installed flush with the ground or used in stake bar systems, thanks to its built-in adjustable base. This versatility makes it a valuable tool for varied anchoring scenarios.

Compatibility and Options

• Equipped with an adjustable base for flush-installed stakes
• Capable of removing stakes used in stake bar systems
• Compatible with the optional Tent Stake Adapter for flat base plates used in clear span tents

Specifications

• Stake Diameter Range: 3/4 inch to 1 1/4 inch (19.05 mm to 31.75 mm)
• Weight: 26 lbs (11.79 kg)
• Mechanical Advantage: 16 to 1
• Force Output: 1600 lbs (725.75 kg) upward force from 100 lbs (45.36 kg) input
• Gripping Force: 3200 lbs (1451.5 kg)

Ideal For

• Professional tent rental companies
• Event install and teardown crews
• Removing angled, flush, or gang-staked anchoring
• Reducing physical strain during tent teardown

Usage Notes

The JackJaw 302 Stake Puller is intended for professional tent installation and teardown operations. Always ensure the jaws are properly engaged before applying force and inspect the tool regularly for wear. Using controlled, lever-based extraction helps protect operators, preserve stakes, and support safer, more efficient teardown across repeated events.
