1'' x 193'' Ratchet Bottom

1'' x 193'' Ratchet Bottom Strap for Tent Anchoring Systems

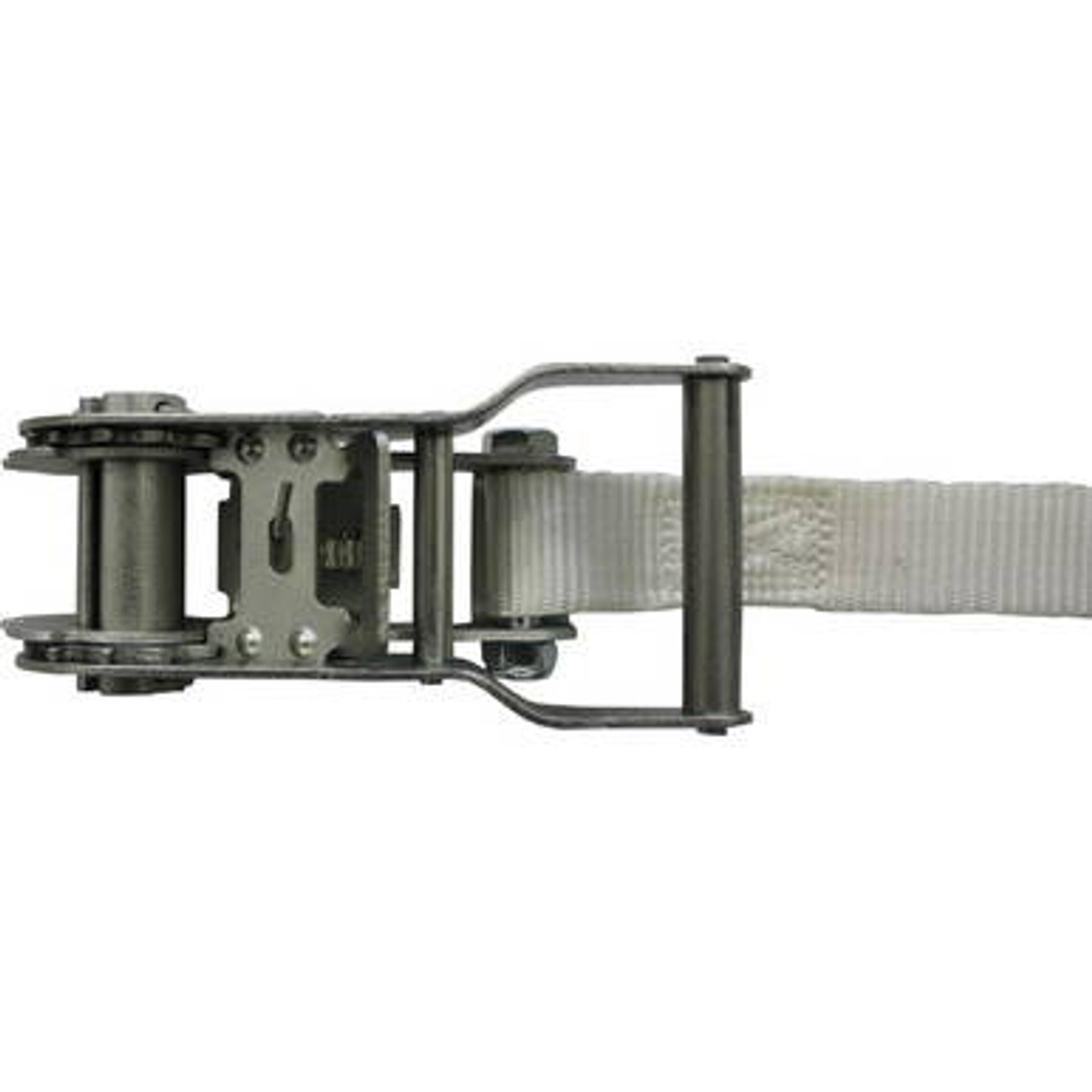

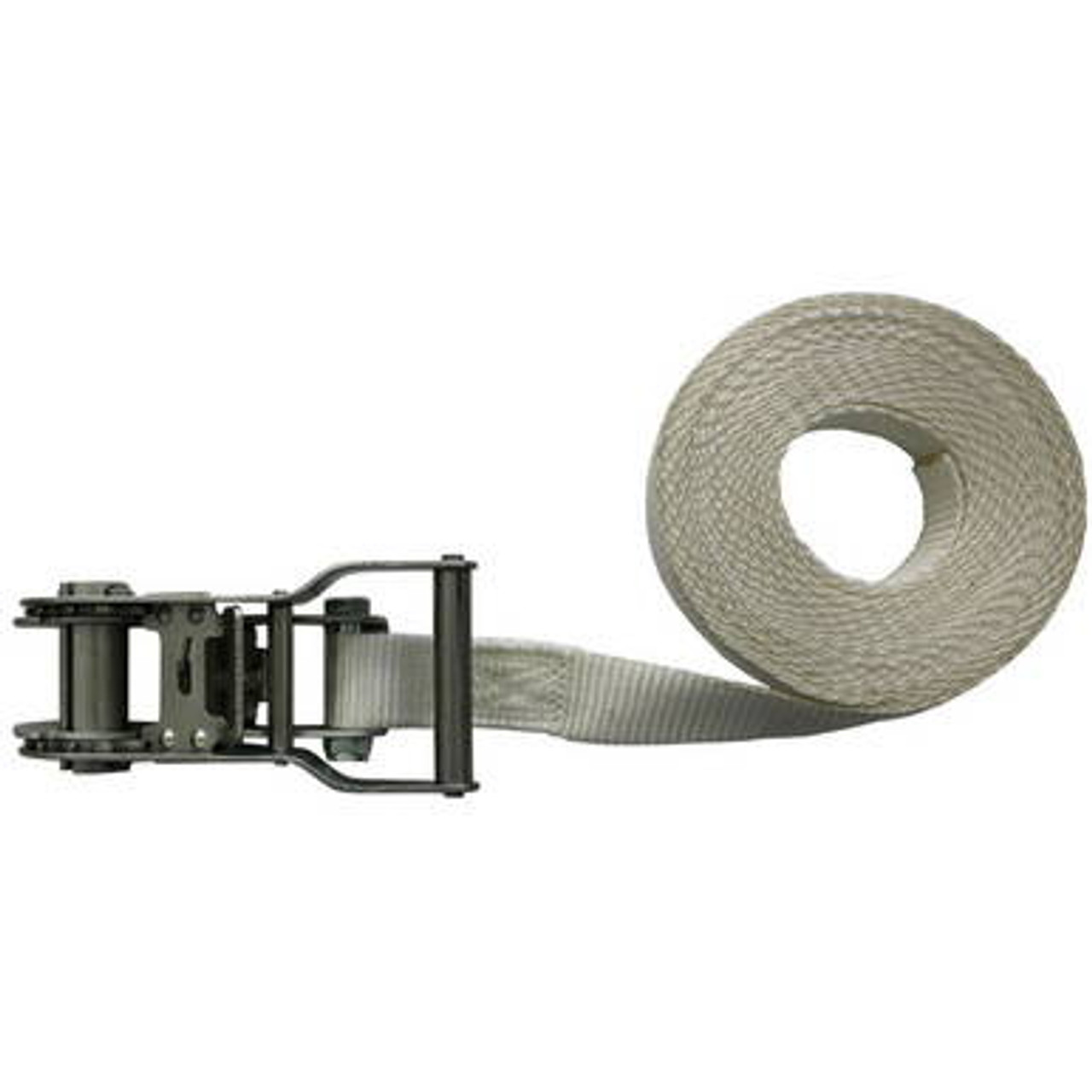

The 1'' x 193'' Ratchet Bottom Strap is a long-format tensioning component used in ratchet-based tent anchoring systems. Built with durable 1'' webbing and a 1'' ratchet buckle sewn to one end, this strap allows installers to apply controlled, repeatable tension between the tent and the ground anchor. Its extended length supports flexible layouts where anchors must be positioned farther from the tent perimeter.

This ratchet bottom strap is intended for professional event and rental use and is commonly paired with a compatible strap top to form a complete anchoring assembly. It is designed for cross-brand compatibility and is not supplied with standard CELINA products.

Why a Long Ratchet Bottom Strap Matters

Anchoring conditions vary by site. Wide setbacks, obstacles, uneven terrain, or manufacturer-specific layouts often require additional strap length to achieve proper geometry and tension. A longer ratchet bottom strap keeps the ratchet mechanism accessible near the anchor while providing the reach needed for consistent setup across different installations.

Using a ratchet assembly improves workflow by enabling precise tensioning during setup and easy release during teardown, supporting safety and efficiency for installation crews.

Key Features

• 1'' webbing with an integrated 1'' ratchet buckle
• Extended length for flexible anchoring layouts
• Controlled tensioning for stable tent installations
• Suitable for repeated professional use
• Designed for compatibility with non-CELINA tent systems

Specifications

• Strap Width: 1'' (25.4 mm)

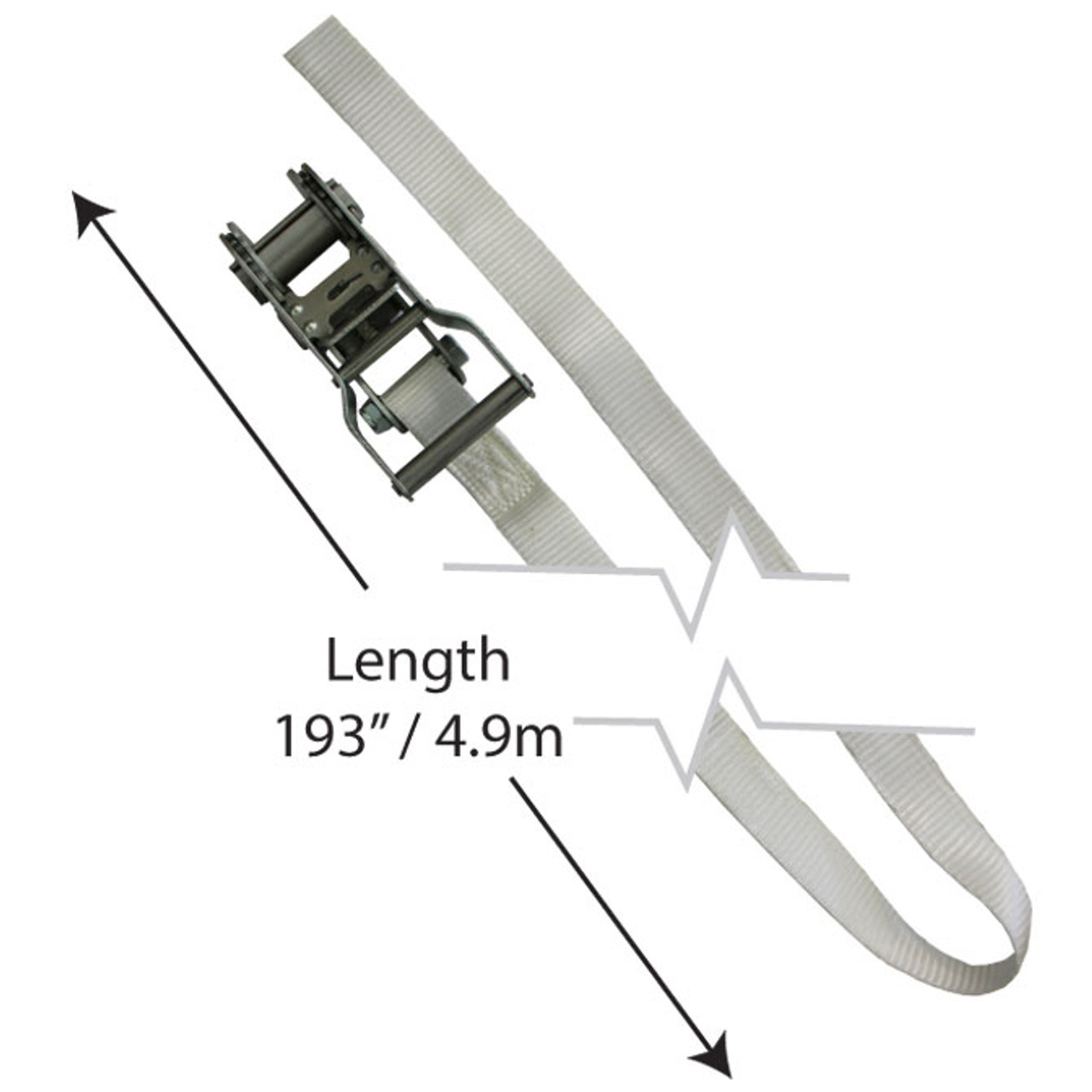

• Overall Length: 193'' (4.9 m)
• Weight Rating: 4,000 lbs (1,814.37 kg)

How to Use the Ratchet Bottom Strap

Step 1: Secure the Ratchet End

Attach the ratchet end to the designated ground anchor, plate, or approved hardware according to the tent system requirements.

Step 2: Thread the Strap Top

Feed the compatible strap top through the ratchet, ensuring the webbing is flat and properly aligned.

Step 3: Apply Tension

Operate the ratchet to apply controlled tension until the tent is anchored per installation guidelines. Avoid over-tightening.

Step 4: Inspect Before Use

Confirm the ratchet is fully engaged and the anchoring system is secure prior to opening the tent to use.

Ideal Applications

• Ratchet-based tent anchoring systems
• Event rental and professional installations
• Frame tents and pole tents requiring longer runs
• Sites with wide setbacks or obstructions

Compatibility Notes

• Designed to pair with a compatible 1'' strap top
• Not supplied with standard CELINA products
• Intended for use with other tent manufacturers' systems
• Not a complete anchoring system on its own

What Is Included

• One 1'' x 193'' Ratchet Bottom Strap

The 1'' x 193'' Ratchet Bottom Strap provides extended reach and reliable tensioning for professional tent anchoring. When paired with a compatible strap top, it supports safe, efficient setups across a wide range of event and site conditions.
