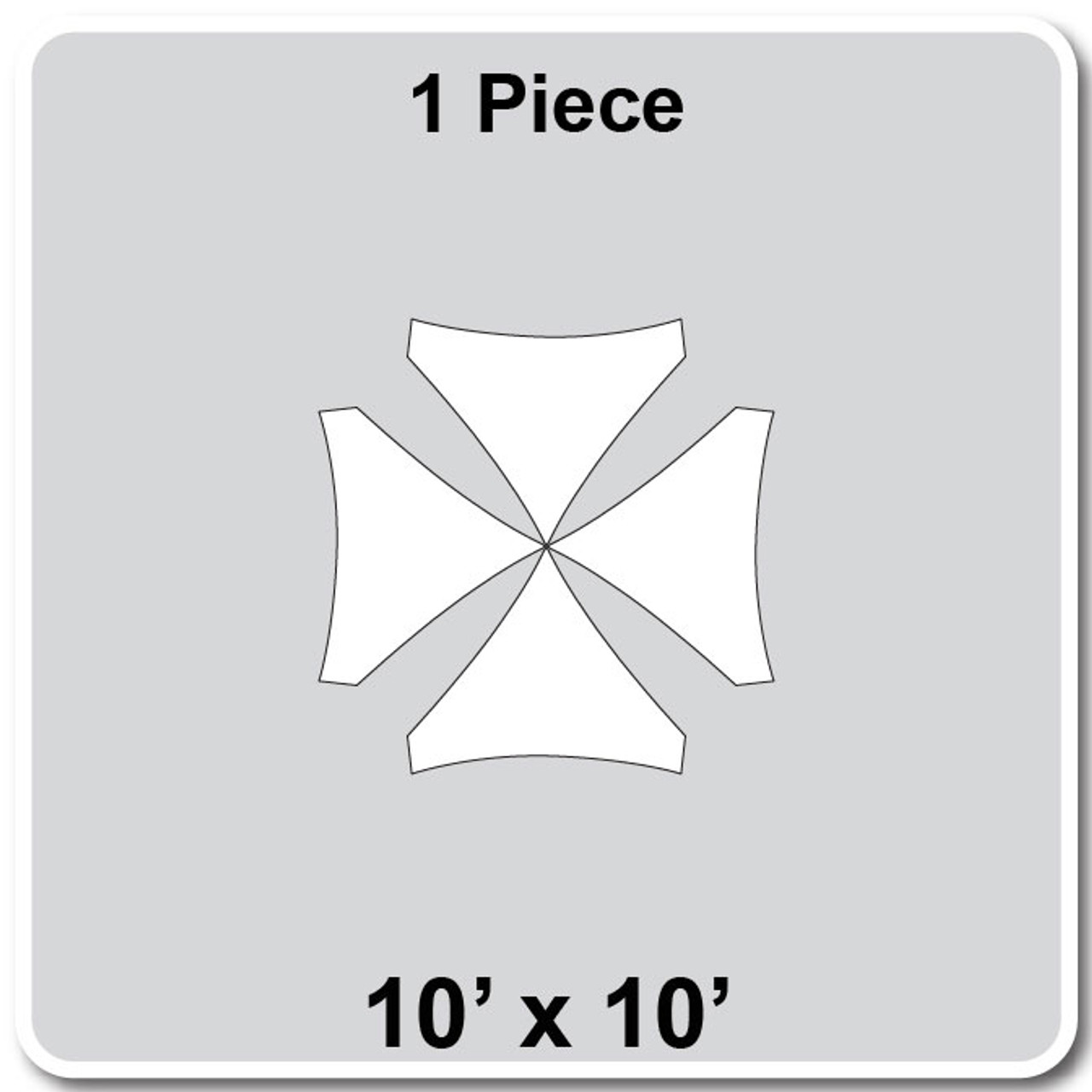

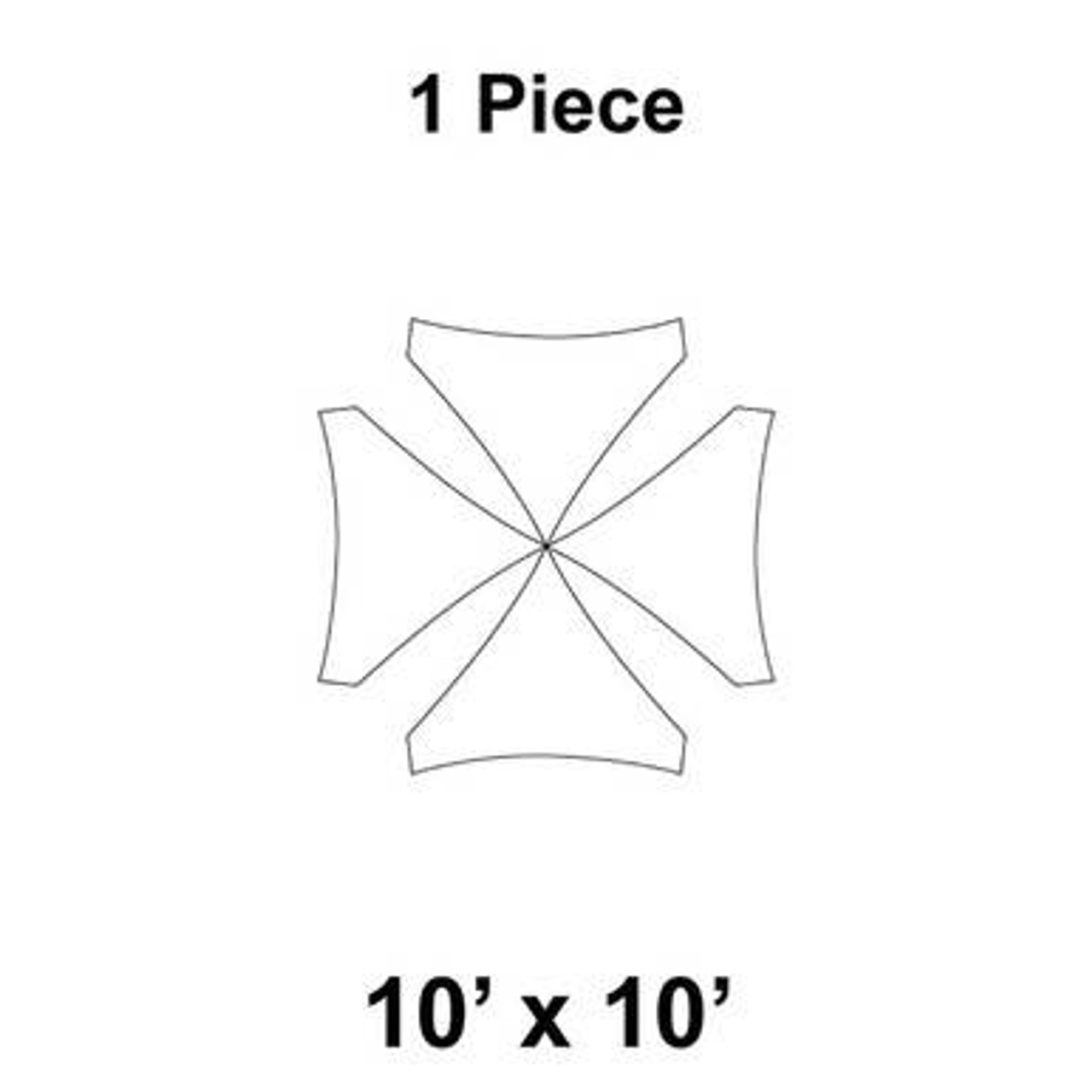

10' x 10' 16 oz. White Pinnacle Series Cross Cable Top

10' x 10' 16 oz White Pinnacle Series Cross Cable Top

The 10' x 10' 16 oz White Pinnacle Series Cross Cable Top is a high peak tent top designed specifically for Pinnacle Series cross cable frame systems. Built for event rental companies and professional installation crews, this top delivers a clean, elevated appearance while maintaining durability and efficiency across repeated event setups.

Constructed from 16 oz blockout PVC coated polyester, this tent top is engineered for long-term use in demanding environments. The Pinnacle Series design utilizes a cross cable support system, which allows the center mast to be elevated without interior support poles. This creates a completely open interior space, maximizing usability while delivering the signature high peak profile that stands out at upscale events.

Why This Pinnacle Cross Cable Top Matters

Unlike traditional frame tent tops, the Pinnacle Series cross cable design eliminates interior obstructions while maintaining structural strength. This allows for a fully usable 100 square foot footprint, making it ideal for compact setups where space efficiency is critical.

The high peak silhouette enhances visual impact, making this top a strong choice for premium event environments such as weddings, corporate functions, and branded activations. Combined with a ratchet-based tensioning system, the top maintains a tight, smooth surface that improves water runoff and overall presentation during use.

Key Features

• Designed for 10' x 10' Pinnacle Series cross cable frame systems
• High peak design delivers a premium, elevated appearance
• Cross cable system supports the center mast without interior poles
• Provides a clear-span interior for maximum usable space
• Constructed from 16 oz blockout PVC coated polyester for durability
• Ratchet tension system ensures tight, even surface tension
• Solid white finish offers a clean, versatile event aesthetic
• Resistant to water, UV exposure, mold, and mildew

How to Use and Install

1. Assemble the Frame and Cross Cables

Set up the Pinnacle Series frame and connect the cross cables between opposing corners. These cables provide the structural tension needed to support the tent top and center mast.

2. Position the Tent Top

Lay the tent top over the assembled frame, ensuring proper alignment with all corners and connection points before securing.

3. Install the Center Mast

Position the center mast at the intersection of the cross cables. The cable tension will support the mast and create the high peak profile.

4. Attach Ratchet Straps

Secure the ratchet straps to the base plates or anchoring points. Feed the straps through the ratchet assemblies and prepare for tensioning.

5. Apply Even Tension and Anchor

Tighten all ratchets evenly to achieve a smooth, wrinkle-free surface. Complete the installation by anchoring the structure using stake driving or weighted systems appropriate for the site conditions.

Specifications

• Size: 10' x 10' (3.0 m x 3.0 m)
• Coverage Area: 100 sq ft (9 m2)
• Compatibility: Pinnacle Series cross cable frame systems
• Material: 16 oz PVC coated polyester blockout vinyl
• Color: Solid white
• Top Style: High peak cross cable design
• Center Pole: Not required (cross cable supported)
• Water Resistance: Waterproof
• UV Resistance: Yes
• Mold and Mildew Resistance: Yes
• SKU: 010010CCD5050

Compatibility and Important Notes

• This is a tent top only, not a complete tent system
• Requires a compatible 10' x 10' Pinnacle Series cross cable frame
• Designed specifically for high peak cross cable configurations
• Frame, cross cables, center mast, and anchoring equipment are not included
• Proper anchoring is required for safe installation and operation

Ideal For

• Event rental companies offering premium high peak tent solutions
• Weddings, corporate events, and upscale outdoor gatherings
• Vendor booths, registration areas, and VIP setups
• Install crews focused on efficient, professional tent installation
• Applications requiring clear-span interiors and strong visual impact
