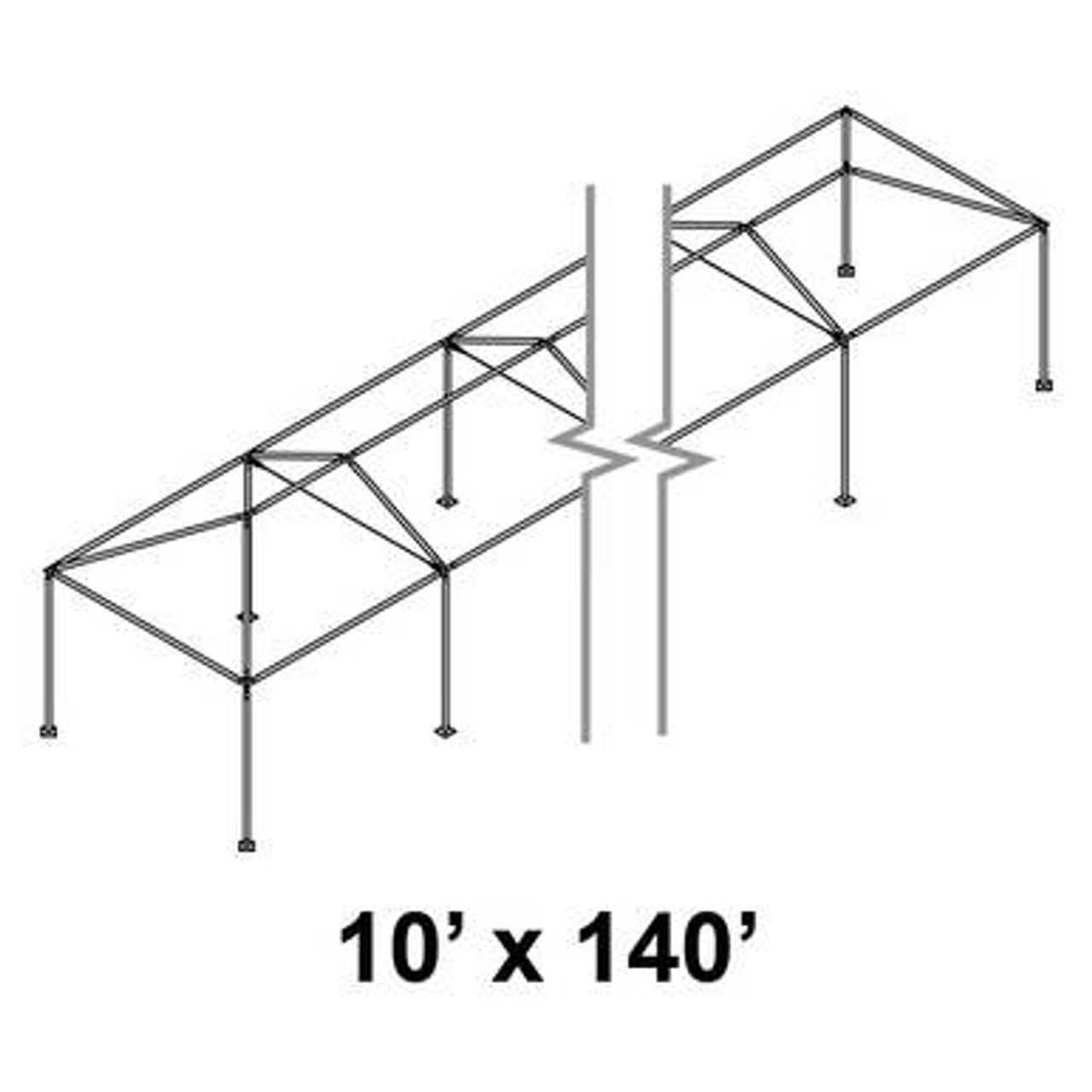

10' x 140' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

10' x 140' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

The 10' x 140' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is a specialized structural solution engineered for the most demanding linear coverage requirements. Providing a massive 1,400 square feet of covered area, this kit is an indispensable asset for any rental company managing large-scale national festivals, major construction projects, or expansive sporting events. The single-tube aluminum construction ensures the frame remains manageable during transport while providing the rigidity needed for a commercial-grade system. The standard 7-foot leg height offers a traditional profile that is easy to manage during the lifting process while providing a reliable eave height for high-traffic environments.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 10' x 140' footprint is specifically engineered for sites with severe lateral space restrictions where an extreme amount of length is required. Whether you are creating a weather-protected entrance for a major convention or performing an industrial tent installation for long-term inventory protection, this single-tube kit offers the durability required for repeated professional use.

Why the 140-Foot Single Tube System Matters

Maintaining structural integrity and perfect alignment over a 140-foot span is a significant engineering feat. The 10' x 140' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is engineered to stay square and secure, preventing the sagging or "snaking" often seen in long-format structures. For a professional event setup, this translates to a clean, continuous canopy line that inspires client confidence over an incredible distance. The modular nature of the West Coast Style frame also allows for efficient teardown and organized storage, ensuring these high-capacity units can be moved and reinstalled quickly between event sites.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 7-Foot Eave Height: Standard leg height provides a professional profile and comfortable interior clearance.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Ultra-Long 1,400 Sq. Ft. Footprint: Designed for massive linear queues, catering corridors, and narrow-access areas.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 140-foot-long frame requires precise alignment and a large, coordinated crew to ensure a safe tent installation.

Step 1: Inventory and Site Layout

Clear the installation path and lay out all rafters, spreaders, and 7-foot legs on a protective drop cloth. Organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly

Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. For a 140-foot length, verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the long frame from bowing or shifting during the lift.

Step 3: Vinyl Top Placement

While the frame is still low to the ground, pull your 10' x 140' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the only safe method to manage the massive amount of fabric before the frame is lifted.

Step 4: Raising the Frame

With a coordinated crew of at least 18 to 22 people, lift one 140-foot side of the frame and insert the 7-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints over the extreme span.

Step 5: Critical Anchoring

Ultra-long structures are highly susceptible to lateral wind forces. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 10' x 140' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 7-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Massive Event Registration: The premier solution for managing high-volume crowds and extreme queues at national-scale festivals or transit hubs.
• Extended Catering Corridors: Provides a professional, covered area for massive buffet setups or modular bar stations.
• Grand Entrance Corridors: Creates a long, protected architectural path for guests moving between multiple distant venues or parking hubs.
• Industrial Site Protection: A reliable solution for covering extensive paths, construction zones, or monitoring rows during maintenance.
