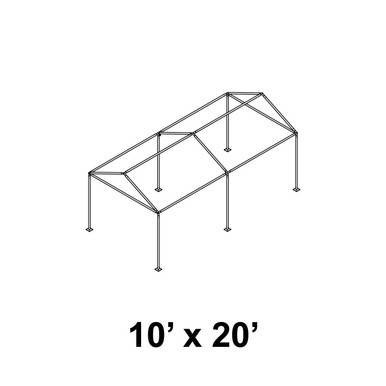

10' x 20' Gable Series Frame

10' x 20' Gable Series Frame

The 10' x 20' Gable Series Frame is a specialized commercial-grade hardware system designed to create a distinct architectural profile for professional events. Unlike traditional hip-roof frames, the Gable Series features a peaked roof with vertical ends, providing a "house-shaped" aesthetic that is highly valued for its clean lines and increased interior volume. For rental companies and event planners, this 200-square-foot frame serves as the essential structural skeleton for high-visibility applications, such as prominent entryways, stage covers, or specialized vendor booths. Engineered for durability and ease of use, this frame ensures a rigid, professional event setup that can withstand the logistical demands of frequent deployment.

The Gable design is particularly effective for logistics and venue branding, as the flat, vertical ends (gables) provide a superior surface for signage or decorative fabric treatments compared to sloped-end tents. This 10' x 20' configuration is optimized for tent installation on various surfaces, including concrete and asphalt where staking may be restricted, provided appropriate weighted anchors are used. By utilizing a high-strength aluminum pipe system, the frame offers a balance of manageable weight for field crews and the structural integrity required for a commercial-grade rental industry asset.

Why the 10' x 20' Gable Series Frame Matters

The 10' x 20' Gable Series Frame matters because it provides a unique functional and aesthetic alternative to standard "square-peak" frames. The gable ends allow for a more open, airy feel at the entrance and exit points, making it ideal for high-traffic walkthroughs or as a transition piece between larger structures. From a maintenance perspective, the Gable Series hardware is designed for longevity, using corrosion-resistant components that ensure a long service life. For rental companies, adding a Gable Series frame to your inventory allows you to offer clients a "custom" look using standardized, reliable hardware that integrates seamlessly with existing West Coast Style components.

Key Features

• Distinctive Gable Profile: Features vertical ends that provide a classic house shape, maximizing interior space and branding opportunities.
• Interchangeable Componentry: Designed to be compatible with most West Coast Style frame systems, simplifying logistics and warehouse management.
• High-Strength Aluminum Tubing: Constructed from 6061-T6 aluminum to provide maximum structural rigidity while remaining lightweight for transport.
• Corrosion-Resistant Fittings: Utilizes heavy-duty steel fittings that are zinc-plated or powder-coated to prevent rust during outdoor exposure.
• Rapid Assembly: Engineered for intuitive setup, allowing field crews to achieve a professional event setup in a minimal amount of time.
• Clean Interior Lines: The frame-supported design eliminates the need for center poles, providing a completely unobstructed 200-square-foot floor plan.

Specifications

Ideal for / Best Uses

• Grand Entryways: Creates a formal, house-shaped "foyer" for weddings or gala events.
• Stage and DJ Covers: Provides an unobstructed view and significant vertical clearance for performers and equipment.
• Trade Show Booths: The vertical gable ends are perfect for showcasing oversized banners and high-impact branding.
• Walkway Extensions: Ideal for connecting buildings to main tents, providing a continuous, sheltered path for guests.

Compatibility and Inclusions

The 10' x 20' Gable Series Frame is designed for use specifically with Gable Series vinyl tops. While the pipe and many fittings may be compatible with West Coast Style systems, the specialized gable-end rafters and crowns are unique to this series. Please note that this product includes the metal frame and fittings only; it does NOT include the vinyl tent top, ground stakes, ratchets, or ropes. For a secure event setup, it is essential to follow all anchoring requirements, especially when installing on hard surfaces. During teardown, ensure all pins and fasteners are collected to maintain the readiness of your Gable Series inventory.
