Celina Tent
10' x 20' Pinnacle Series High Peak Frame Tent / Cross Cable Marquee, Complete
View Description & Specifications
sku: C08Y10X20
Pinnacle High Peak Cross Cable tents are designed with a high peak tube supported by cross cables extending from each corner tube, maximizing the usable space underneath while at the same time eliminating the need for interior frames or support poles. The …
- SKU:
- C08Y10X20
- Weight:
- 0.00 LBS
- option|Fabric Top:
- {"010020CC50":1,"010020CCDP":1,"010020CCDPL":1}
- option|Eave Height & Tube Material/Type:
- {"KITCC01002008":1}
- option|Stake Size (Includes Ratchet Assemblies):
- {"ACTS3611":{"ACTS3611":6,"AC05SGR":6,"AC08SPGR":6,"HWOPO6":6},"ACTS4211":{"ACTS4211":6,"AC05SGR":6,"AC08SPGR":6,"HWOPO6":6}}
- option|Sidewalls|Eave Height & Tube Material/Type:KITCC01002008:
- {"ACSW810CC50":6,"ACSW810CC50W":6,"ACSW810CCCLR":6,"ACSW810CCMEWH":6,"ACSW810CCDP1":6}
- downloadable Series Overview:
- https://gettent.com/product_images/pdf/003-0026-rent-pinnacle-series-tent-flyer.pdf
- downloadable Product Manual:
- https://gettent.com/product_images/pdf/C08Y10X20-10-x-20-pinnacle-series-high-peak-frame-tent-1-pc-manual.pdf
- downloadable Tent Care:
- https://gettent.com/product_images/pdf/tent-care-cleaning-and-storage.pdf
- downloadable Event Layout:
- https://gettent.com/product_images/pdf/event-&-party-layout-frame-tent-10-x-20.pdf
- downloadable Art Guidelines:
- https://gettent.com/product_images/pdf/artwork-submission-guidelines.pdf
- downloadable Print Template:
- https://gettent.com/product_images/pdf/C08Y10X20-10-x-20-pinnacle-template.pdf
- Tent Series:
- Pinnacle Series High Peak Frame Tent
- Tent Width:
- 10 ft. / 3.0m
- Tent Length:
- 20 ft. / 6.1m
Choose Options
Warranty
-
Printing Warranty
If a printing option is chosen. The following warranty will apply to printing: Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
-
1 Year Warranty
CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
Overview
Product Description

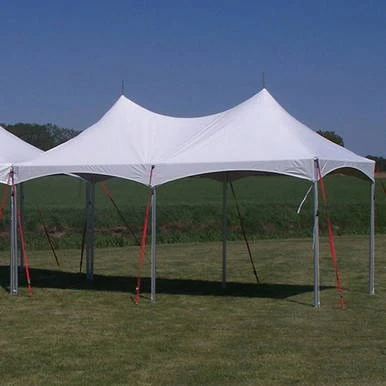

Pinnacle High Peak Cross Cable tents are designed with a high peak tube supported by cross cables extending from each corner tube, maximizing the usable space underneath while at the same time eliminating the need for interior frames or support poles. The simple design allows for easy transportation, storage, and installation involving only two people due to the reduced amount of hardware in comparison to other frame or pole tents.
Specifications
Width
10 ft. / 3.0m
Length
20 ft. / 6.1m
Area
200 ft / 18.3 m²
Eave Height
8' / 2.4m
Overall Height
13'8" / 3.9m
Pitch
4'8" / 1.4m
Complete Weight Aluminum
349 Lbs. / 158 Kg.
Series / Brand
Pinnacle
Class
Cross Cable
Center Pole
No
Style / Shape
High Peak
Expandable
No
Custom Printing Available
Yes
Fabric Material
PVC Coated Polyester
Fabric Material Weight
16 oz. / yd2 / 540 gsm
Fabric Translucency
Blockout
Water Repellency
Waterproof
Flame Resistant
Yes
UV Resistant
Yes
Mold and Mildew Resistant
Yes
Frame / Pole Material
Aluminum
Longest Component
9'3" / 2.8m
Persons required for setup
2-3
Occupancy
40 Sit Down Dinner - 67 Cathedral Seating
