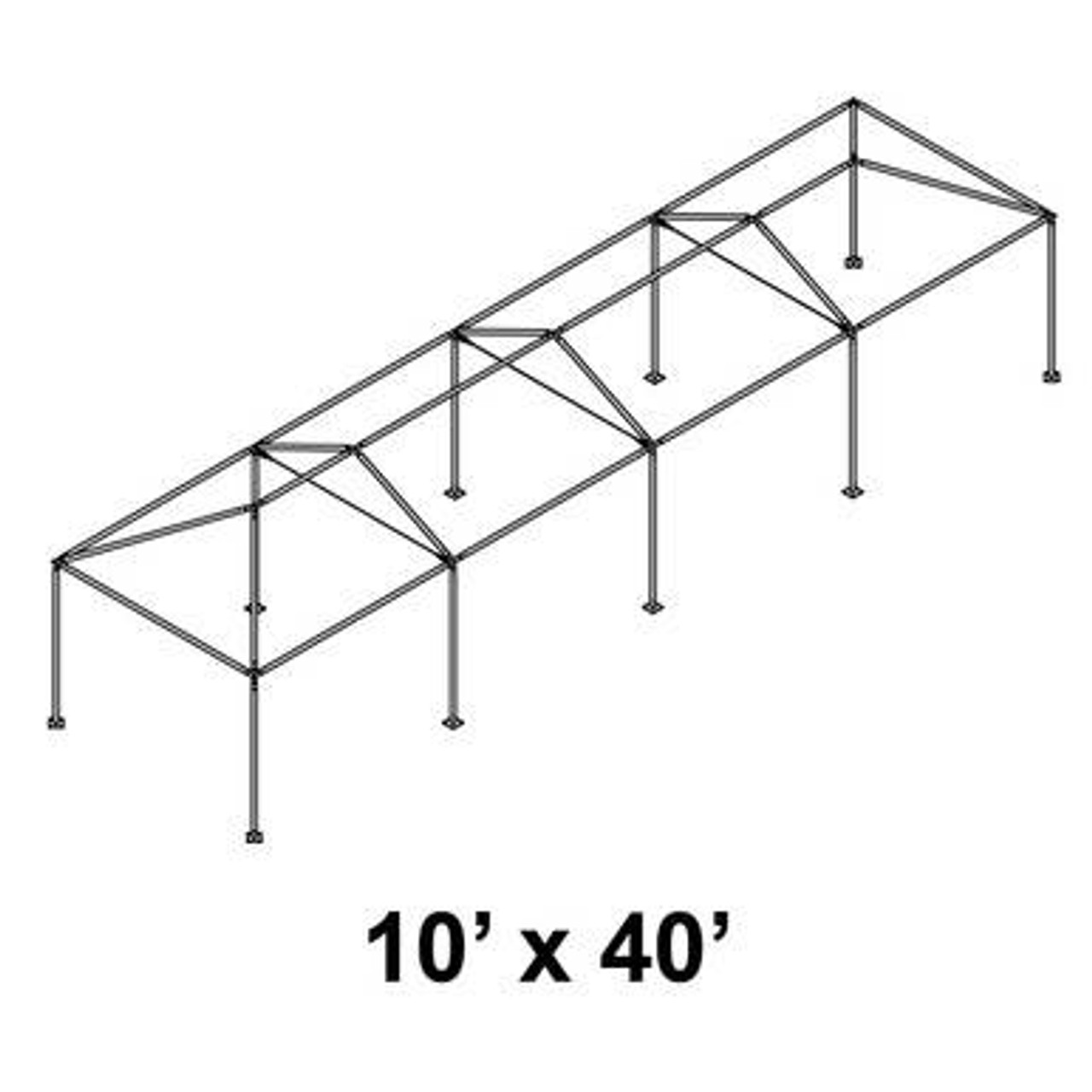

10' x 40' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

10' x 40' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

The 10' x 40' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is a professional-grade structural solution designed for extended rectangular footprints. Providing 400 square feet of covered area, this kit is an essential asset for any rental company requiring durable setups for long registration lines, linear food service stations, or narrow hospitality corridors. By utilizing high-strength single-tube aluminum construction, the frame remains lightweight for manageable transport while providing the rigidity of a commercial-grade system. The traditional 7-foot leg height offers a professional profile and comfortable eave height while remaining easy to deploy in high-traffic event environments.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and fleet flexibility. The 10' x 40' size is particularly effective for creating defined walkways or long vendor rows where lateral space is limited but high capacity is required. Whether you are setting up a weather-protected entrance for a wedding or performing an industrial tent installation for localized inventory protection, this single-tube kit provides the durability required for repeated professional use.

Why the 40-Foot Single Tube System Matters

In the event industry, maintaining structural integrity over a 40-foot span is critical. The 10' x 40' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is engineered to stay square and secure, preventing the "snaking" or sagging often seen in lower-quality long-format frames. For a professional event setup, this translates to a clean, high-end appearance that inspires confidence. The modular nature of the West Coast Style frame also allows for efficient teardown and organized storage, making it a high-utility asset for any rental fleet or corporate event inventory managing large-scale logistics.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 7-Foot Eave Height: Standard leg height provides a professional profile and comfortable interior clearance.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Extended 400 Sq. Ft. Footprint: Specifically designed for long-format concessions, registration corridors, and narrow-access areas.
• Fast Assembly: Simplified component list allows for rapid deployment by a small crew.

How to Use / Installation Best Practices

Assembling a 40-foot-long frame requires careful alignment to ensure the structure remains perfectly straight throughout the tent installation.

Step 1: Inventory and Site Layout

Clear the installation path and lay out all rafters, spreaders, and 7-foot legs on a protective drop cloth. Organize the components to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly

Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. For a 40-foot length, verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the long frame from shifting.

Step 3: Vinyl Top Placement

While the frame is still low to the ground, pull your 10' x 40' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the safest method to manage the fabric before the frame is lifted.

Step 4: Raising the Frame

With a coordinated crew, lift one 40-foot side of the frame and insert the 7-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints over the long span.

Step 5: Anchoring

Long, narrow structures are susceptible to lateral wind forces. Use stake driving equipment to secure the base of each leg and attach heavy-duty ratchet straps. Tension the straps evenly to ensure the structure remains stable and the vinyl top is drum-tight.

Specifications

• Width: 10 ft (3.0m)
• Length: 40 ft (12.2m)
• Total Area: 400 sq. ft. (37.2 sq. m)
• Leg Height: 7 ft (2.1m)
• Peak Height: 11.5 ft (3.5m)
• Frame Material: 2" Anodized Aluminum Single Tube
• Fitting Material: Zinc-Plated Welded Steel
• Longest Pipe Component: 9 ft 4 in (2.8m)
• Approximate Frame Weight: 295 lbs (133.8 kg)
• Compatibility: Standard West Coast Style Frame Systems

Compatibility and Inclusions

This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 10' x 40' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 7-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Extended Catering Lines: Provides a professional, covered area for long buffet setups or bar stations.
• Registration & Information Corridors: Ideal for managing large crowds at festivals, fairs, or sporting events.
• Linear Vendor Stations: Perfect for specialized merchandise or product displays requiring significant counter space.
• Industrial Walkway Protection: A reliable solution for covering long paths or monitoring rows during maintenance.
