  • 10' x 40' Classic Frame Tent, 1 Piece, 16 oz. Ratchet Top Replacement
  • 10' x 40' Classic Frame Tent, 1 Piece, 16 oz. Ratchet Top Replacement
  • 10' x 40' Classic Frame Tent, 1 Piece, 16 oz. Ratchet Top Replacement
  • 10' x 40' Classic Frame Tent, 1 Piece, 16 oz. Ratchet Top Replacement
  • 10' x 40' Classic Frame Tent, 1 Piece, 16 oz. Ratchet Top Replacement
  • 10' x 40' Classic Frame Tent, 1 Piece, 16 oz. Ratchet Top Replacement

Have a Question?

Our Support Team has the Answers! From orders to product details, we’re here to help — contact us today!

Write a Review

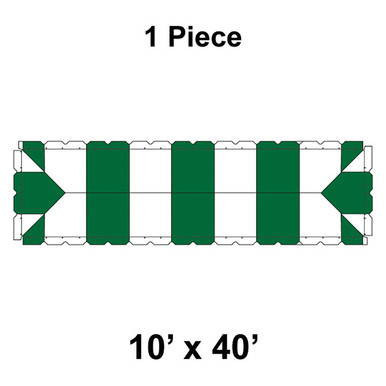

10' x 40' Classic Frame Tent, 1 Piece, 16 oz. Ratchet Top Replacement

Write a Review

View Description & Specifications

sku: T06Y10X40

SKU:
T06Y10X40
Weight:
0.00 LBS
option|Replacement Fabric Top - choose one:
{"010040CF1A5050":1,"010040CF1A5051":1,"010040CF1A5052":1,"010040CF1A5053":1,"010040CF1ADP":1,"010040CF1ADPL":1}
Tent Series:
Classic Series Frame Tent

Choose Options

Adding to cart… The item has been added
$933.39

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

Overview

Product Description

Renew your 10x40 Classic Frame Tent with this premium 16 oz single-piece ratchet top replacement. Engineered for durability and weather resistance, it ensures long-lasting performance and a perfect fit for your frame tent. Made from blockout vinyl, the replacement top is designed to withstand wear and tear, making it an excellent choice for commercial use, event planning, or rental operations. Compatible with West Coast Style Frame systems, it simplifies maintenance while maintaining the tent's structural integrity. Upgrade your tent today with a reliable replacement from GetTent, a CELINA company.

Tent Construction:

  • Constructed with 16 oz. blockout, flame resistant, mold & mildew resistant vinyl
  • All panels are bonded with 1” heat sealed overlapped seams
  • 7/32” Polyester sidewall rope line held in with 1” polyester webbing sewn approximately every 15” around perimeter of tent top
  • Sidewall rope line is replaceable if ever needed
  • Multi-layered reinforcements at crown locations
  • Scalloped valances bound with vinyl binding
  • 95% of tent top is bonded with HEAT SEALED construction
  • Stock colors and custom printing available by special order

Specifications

Width

15ft. / 4.5m

Length

15ft. / 4.5m

Area

225 ft² / 20 m²

Eave Height

7' / 2.13m | 8' / 2.4m

Overall Height

11'4" / 3.45m | 12'4" / 3.8m

Pitch

3'6" / 1.07m

Complete Weight Aluminum

210 Lbs. / 95 Kg. | 215 Lbs. / 98 Kg.

Complete Weight Galvanized

232 Lbs. / 105 Kg. | 238 Lbs. / 108 Kg.

Series / Brand

Classic

Class

Pole

Center Pole

Yes

Style / Shape

Traditional

Expandable

No

Custom Printing Available

Yes

Fabric Material

PVC Coated Polyester

Fabric Material Weight

16 oz. / yd2 / 540 gsm

Fabric Translucency

Blockout

Water Repellency

Waterproof

Flame Resistant

Yes

UV Resistant

Yes

Mold and Mildew Resistant

Yes

Frame / Pole Material

Aluminum OR Galvanized

Longest Component

7'10"/ 2.4m | 8'10" / 2.7m

Persons required for setup

2

Occupancy

23 Sit Down Dinner - 38 Cathedral Seating

Literature

Warranty

CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.

If a printing option is chosen. The following warranty will apply to printing:

Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
