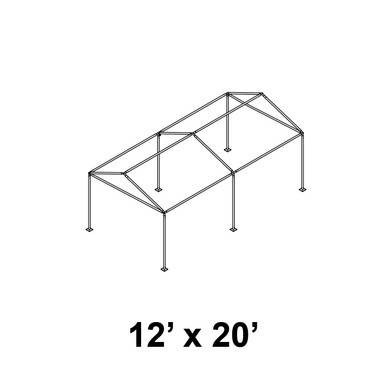

12' x 20' Gable Series Frame

12' x 20' Gable Series Frame

The 12' x 20' Gable Series Frame is a professional-grade hardware system designed to create a distinct, "house-style" architectural profile for mid-sized utility and event spaces. For rental companies and event planners, this frame serves as the essential structural skeleton for a 240-square-foot gable-ended canopy. Unlike traditional hip-roof frames that slope downward on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a clean, flush connection to existing structures. This kit includes all the necessary aluminum rafters, spreaders, and heavy-duty steel fittings required to maintain a rigid 12' x 20' footprint, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height that spans the entire length of the structure. Because this is a frame-supported system, it does not require center poles, maximizing the 240 square feet of usable space for registration lines, specialized vendor displays, or sheltered lounge areas. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be restricted. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, modern lines required for high-end logistics and rental operations.

Why the 12' x 20' Gable Series Frame Matters

The 12' x 20' Gable Series Frame matters because it offers a sophisticated visual and functional alternative to the standard "pyramid" look of traditional frame tents. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 12-foot width is ideal for narrower spaces like driveways or walkways where a standard 15-foot or 20-foot tent would be too wide. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for time-sensitive events.

Key Features

• Clear-Span Design: Provides a completely open 12' x 20' interior with no center poles, maximizing space for equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over the 20-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Driveway & Patio Extensions: The 12-foot width is perfect for residential or restaurant spaces requiring a "built-in" look.
• VIP Lounge Areas: Creates a sophisticated, "outdoor room" feel for upscale weddings or corporate hospitality.
• Branded Entrance Canopies: The vertical profile and 20-foot length make it an excellent choice for creating a grand entryway at major events.
• Specialized Vendor Booths: Provides a professional, branded presence at trade shows with extra depth for displays and client interaction.

Compatibility and Inclusions

The 12' x 20' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 20-foot gable inventory.
