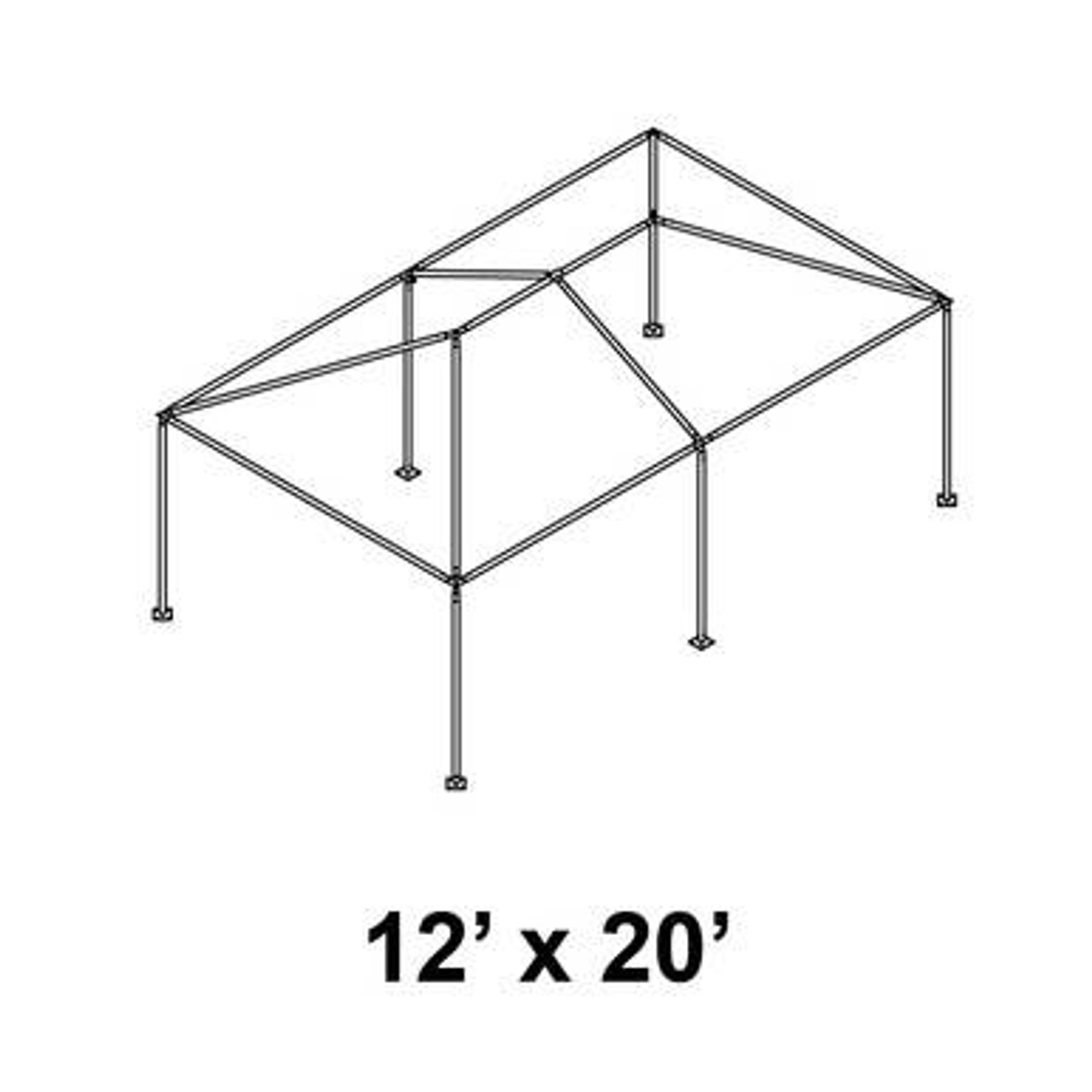

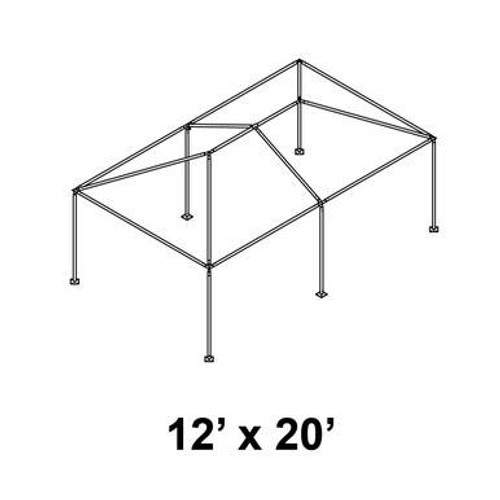

12' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

12' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

The 12' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is a highly adaptable structural foundation designed for professional event, commercial, and residential applications. Providing 240 square feet of covered area, this kit is an essential asset for any rental company managing mid-sized needs, such as long buffet lines, VIP lounge areas, or medium-capacity vendor spaces. By utilizing high-strength single-tube aluminum construction, the frame remains lightweight for manageable transport while providing the rigidity of a commercial-grade system. The traditional 7-foot leg height offers a professional profile and a reliable eave height that is easy to deploy in a variety of environments.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 12' x 20' footprint is specifically engineered for sites that require more length than a standard square tent but have limited lateral space. Whether you are providing weather protection for a narrow driveway event or performing a professional tent installation for a street fair, this single-tube kit offers the durability required for repeated professional use.

Why the 12' x 20' Single Tube System Matters

The 12' x 20' configuration is one of the most popular sizes for linear event layouts. The 12' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of consumer-grade shelters. For a professional event setup, this translates to a clean, taut canopy line that inspires client confidence. The modular nature of the West Coast Style frame also allows for efficient teardown and organized storage, ensuring these units can be quickly cycled between event sites during peak rental seasons.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 7-Foot Eave Height: Standard leg height provides a professional profile and comfortable interior clearance.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Versatile 240 Sq. Ft. Footprint: Ideal for long dining tables, registration rows, or protected walkways.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 12' x 20' frame is straightforward and can typically be managed by a crew of 2 to 4 people.

Step 1: Inventory and Site Layout

Clear the installation area and lay out the rafters, spreaders, and six 7-foot legs on a protective drop cloth. Organize the components to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly

Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement

While the frame is still low to the ground, pull your 12' x 20' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage ensures a tight fit and proper alignment once the frame is raised.

Step 4: Raising the Frame

With a coordinated crew, lift one 20-foot side of the frame and insert the 7-foot leg poles into the fittings. Repeat the process for the opposite side. It is important to lift in unison to avoid putting undue stress on the aluminum joints.

Step 5: Secure Anchoring

Proper anchoring is critical for safety. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance against wind forces.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 12' x 20' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 7-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Long Catering Rows: Provides a professional and protected area for buffet setups and food service.
• VIP Registration: An ideal size for creating a high-end check-in experience at sporting events or festivals.
• Covered Walkways: Can be used to create protected paths between buildings or larger tent installations.
• Backyard Dining: Perfect for covering long farm tables for outdoor weddings or family reunions.
