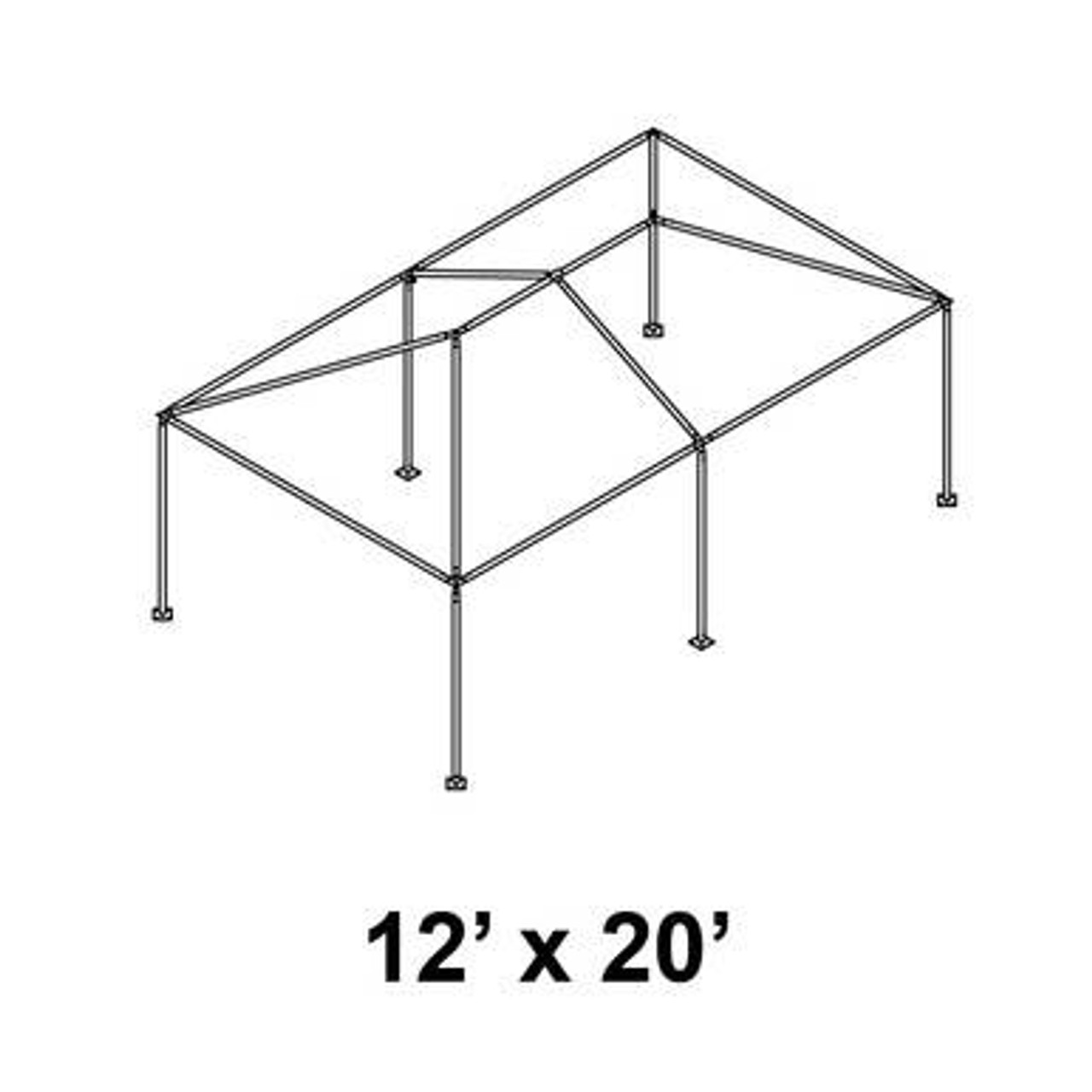

12' x 20' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit

12' x 20' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit

The 12' x 20' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit is a professional-grade structural foundation designed for event and commercial applications that require a mid-sized footprint with increased vertical clearance. Providing 240 square feet of covered area, this kit is an essential asset for any rental company managing long buffet lines, elevated VIP lounge areas, or high-end vendor spaces. By utilizing high-strength single-tube aluminum construction, the frame remains lightweight for manageable transport while providing the rigidity of a commercial-grade system. The 8-foot leg height offers a more spacious interior profile, improving airflow and visibility for high-traffic environments.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 12' x 20' footprint is specifically engineered for sites that require more length than a standard square tent but have limited lateral space. Whether you are providing weather protection for a corporate activation or performing a professional tent installation for a street fair, this single-tube kit offers the durability required for repeated professional use.

Why the 8-Foot Single Tube System Matters

In the professional event industry, the 8-foot leg height has become the preferred standard for creating a more open and inviting atmosphere. The 12' x 20' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of consumer-grade shelters. The additional head clearance is critical for accommodating taller equipment, signage, or overhead lighting without a cramped feeling. For a professional event setup, this translates to a clean, taut canopy line and a superior guest experience. The modular nature of the frame also allows for efficient teardown and organized storage, ensuring the unit can be cycled through high-volume rental seasons with ease.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 8-Foot Eave Height: Elevated leg height provides superior interior clearance and improved comfort for guests and staff.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Versatile 240 Sq. Ft. Footprint: Ideal for long dining tables, registration rows, or protected walkways.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 12' x 20' frame is straightforward and can typically be managed by a crew of 2 to 4 people.

Step 1: Inventory and Site Layout

Clear the installation area and lay out the rafters, spreaders, and six 8-foot legs on a protective drop cloth. Organize the components to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly

Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement

While the frame is still low to the ground, pull your 12' x 20' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage ensures a tight fit and proper alignment once the frame is raised to its full height.

Step 4: Raising the Frame

With a coordinated crew, lift one 20-foot side of the frame and insert the 8-foot leg poles into the fittings. Repeat the process for the opposite side. It is important to lift in unison to avoid putting undue stress on the aluminum joints.

Step 5: Secure Anchoring

Proper anchoring is critical for safety, especially with the higher wind profile of 8-foot legs. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance against lateral forces.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 12' x 20' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 8-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Premium Catering Rows: Provides a professional, high-clearance protected area for buffet setups and food service.
• VIP Registration: An ideal size for creating an elevated check-in experience at sporting events or corporate galas.
• Covered Walkways: Can be used to create high-clearance protected paths between buildings or larger tent installations.
• Valet Stations: Offers a professional-grade, high-visibility shelter for staff and equipment in upscale commercial areas.
