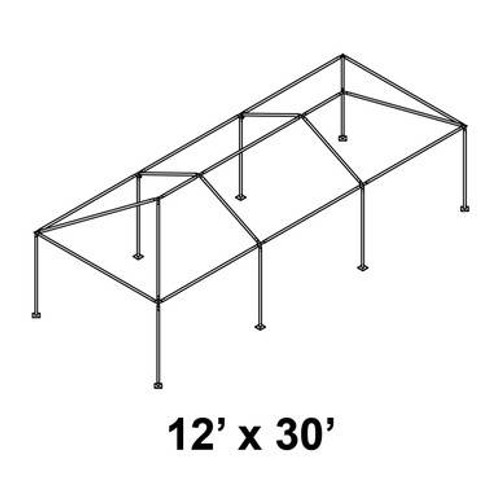

12' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit

12' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit

The 12' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit is an elite structural solution engineered for professional applications requiring a high-capacity, elongated footprint and maximum vertical clearance. Providing 360 square feet of covered area, this kit is an essential asset for any rental company managing high-end catering lines, industrial walkways, or spacious VIP corridors. By utilizing high-strength single-tube aluminum construction, the frame remains lightweight for manageable transport while providing the rigidity of a commercial-grade system. The 10-foot leg height offers a vastly more open interior profile, which is essential for maintaining airflow and high visibility in high-traffic environments across a substantial 30-foot span.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 12' x 30' footprint is specifically engineered for sites that require significant length and square footage without the massive width of larger structures. Whether you are providing weather protection for a major stadium thoroughfare or performing an industrial tent installation for long-term inventory protection, this single-tube kit offers the durability required for repeated professional use.

Why the 10-Foot Single Tube System Matters

In the professional event and industrial sectors, the 10-foot leg height is the premier choice for creating an airy, non-claustrophobic environment. The 12' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of standard consumer shelters. The superior head clearance is critical for accommodating large-scale signage, overhead climate control systems, or tall equipment without a "tunneled" feeling for guests. For a professional event setup, this translates to a clean, taut canopy line and an premium experience over a 30-foot span. The modular nature of the frame also allows for efficient teardown and organized storage.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 10-Foot Eave Height: Maximum leg height provides superior interior clearance and improved comfort for massive crowds.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Expansive 360 Sq. Ft. Footprint: Ideal for long dining tables, high-volume registration rows, or protected thoroughfares.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 12' x 30' frame with 10-foot legs requires precise alignment and a coordinated crew of 4 to 6 people to ensure a safe tent installation.

Step 1: Inventory and Site Layout

Clear the installation path and lay out the rafters, spreaders, and eight 10-foot legs on a protective drop cloth. Organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly

Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the 30-foot frame from shifting during the lift.

Step 3: Vinyl Top Placement

While the frame is still low to the ground, pull your 12' x 30' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the only safe method to manage the fabric before the frame is raised to its full 10-foot height.

Step 4: Raising the Frame

With a coordinated crew, lift one 30-foot side of the frame and insert the 10-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints over the long span.

Step 5: Critical Anchoring

Structures with 10-foot legs have a high wind profile and are highly susceptible to lateral forces. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 12' x 30' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 10-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• High-End Event Walkways: Perfect for creating high-clearance protected paths for gala entrances or stadium corridors.
• Industrial Site Protection: A reliable solution for covering extensive paths or monitoring rows during maintenance.
• Spacious VIP Corridors: Provides a professional, open-air environment for high-traffic registration or food service.
• Large-Scale Exhibit Rows: Ideal for displaying tall equipment or products at trade shows and festivals.
