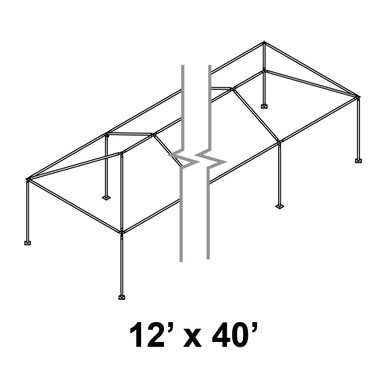

12' x 40' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit

12' x 40' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit

The 12' x 40' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit is an elite-level structural foundation engineered for professional applications requiring maximum linear coverage and superior vertical clearance. Providing 480 square feet of covered area, this kit is an essential asset for any rental company managing high-capacity pedestrian corridors, industrial thoroughfares, or expansive VIP hospitality rows. By utilizing high-strength single-tube aluminum construction, the frame remains manageable for transport while providing the rigidity of a commercial-grade system. The 10-foot leg height offers a vastly more spacious and airy interior profile, which is critical for maintaining airflow and high visibility in massive, high-traffic environments across a substantial 40-foot span.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 12' x 40' footprint is specifically engineered for sites with lateral space restrictions where an incredible amount of continuous length is required. Whether you are providing a weather-protected thoroughfare for a major stadium or performing an industrial tent installation for long-term inventory protection, this single-tube kit offers the durability required for repeated professional use.

Why the 10-Foot Single Tube System Matters

Maintaining structural integrity and perfect alignment over a 40-foot span is a significant engineering challenge. The 12' x 40' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit is engineered to stay square and secure, preventing the sagging or "snaking" often seen in long-format structures. The 10-foot legs provide superior head clearance, which is critical for such long, narrow structures to avoid a "tunneled" feeling for guests. For a professional event setup, this translates to a clean, continuous canopy line that facilitates the installation of overhead lighting, complex signage, and large-scale climate control systems across a significant distance. The modular nature of the frame also allows for efficient teardown and organized storage.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 10-Foot Eave Height: Maximum leg height provides superior interior clearance and improved comfort for massive crowds.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Elongated 480 Sq. Ft. Footprint: Designed for high-volume linear queues, catering corridors, and narrow-access areas.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 40-foot-long frame with 10-foot legs requires precise alignment and a coordinated crew of at least 4 to 6 people to ensure a safe tent installation.

Step 1: Inventory and Site Layout Clear the installation path and lay out all rafters, spreaders, and 10-foot legs on a protective drop cloth. Organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. For a 40-foot length, verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement While the frame is still low to the ground, pull your 12' x 40' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the only safe method to manage the fabric before the frame is raised to its full 10-foot height.

Step 4: Raising the Frame With a coordinated crew, lift one 40-foot side of the frame and insert the 10-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints over the long span.

Step 5: Critical Anchoring Structures with 10-foot legs have a high wind profile and are highly susceptible to lateral forces. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 12' x 40' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 10-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• High-End Event Walkways: Perfect for creating high-clearance protected paths for gala entrances or stadium corridors.
• Industrial Site Protection: A reliable solution for covering extensive paths or monitoring rows during maintenance.
• Spacious VIP Corridors: Provides a professional, open-air environment for high-traffic registration or luxury food service.
• Large-Scale Exhibit Rows: Ideal for displaying tall equipment or products at trade shows and outdoor festivals.
