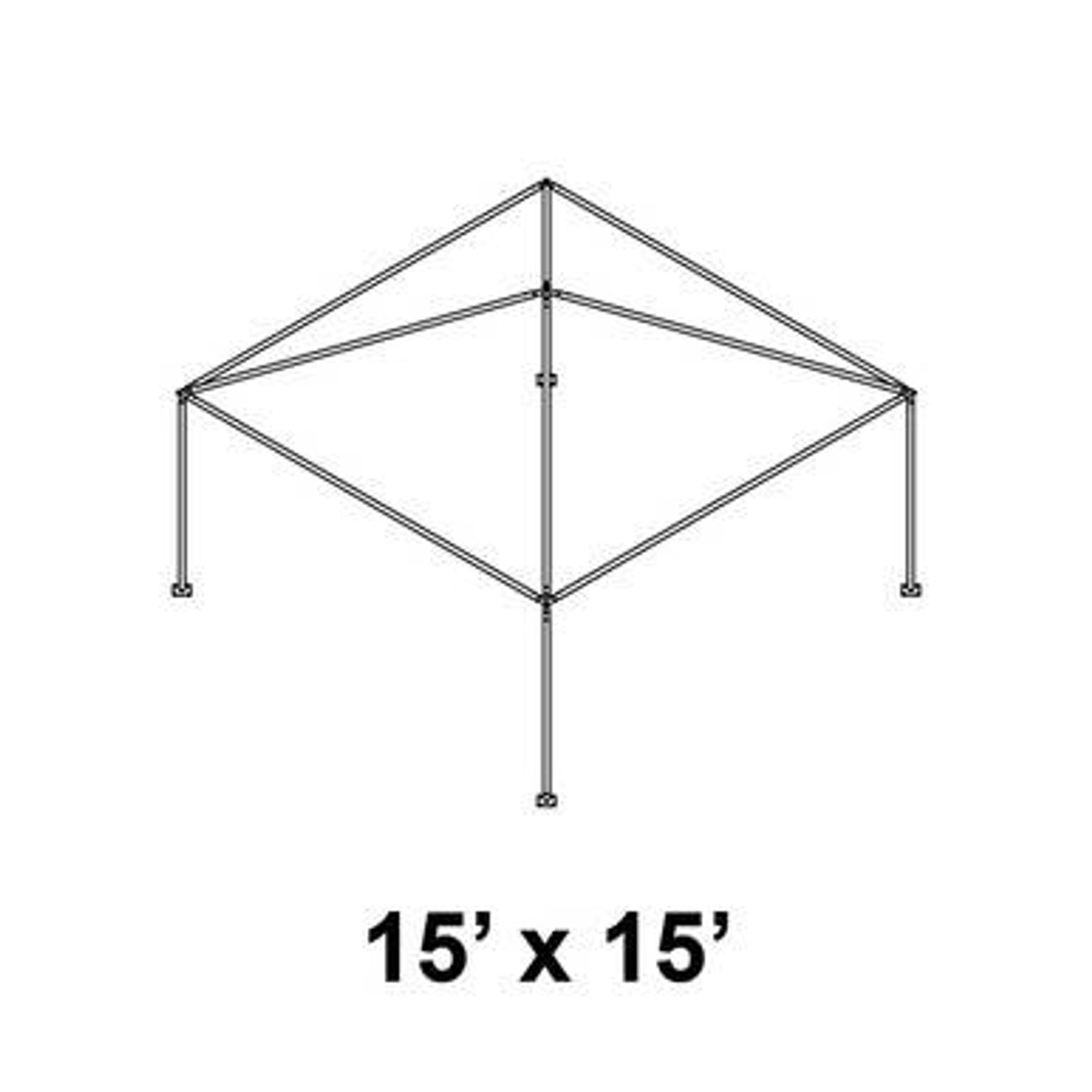

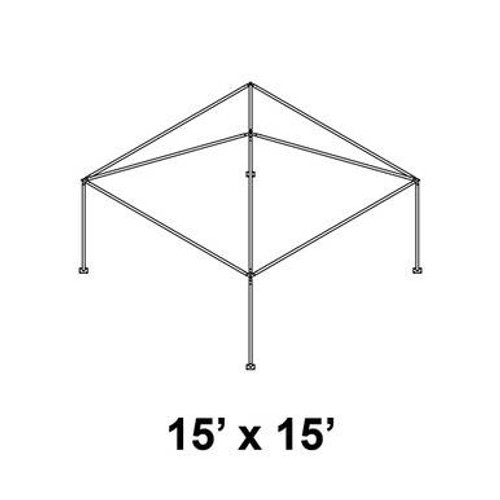

15' x 15' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit

15' x 15' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit

The 15' x 15' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit is an ultra-high-clearance structural solution engineered for professional applications that require a compact footprint with extreme vertical elevation. Providing 225 square feet of covered area, this kit is an essential asset for rental companies managing specialized installations such as grand gala entryways, high-profile media towers, or industrial equipment coverage. By utilizing high-strength single-tube aluminum construction, the frame remains manageable for transport while providing the rigidity of a commercial-grade system. The 12-foot leg height offers an exceptionally open interior profile, which is critical for maintaining maximum visibility and clearing large-scale obstacles in high-traffic environments.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 15' x 15' square footprint is specifically engineered for sites where horizontal space is limited but a commanding vertical presence is required. Whether you are providing weather protection for a high-end activation or performing a specialized industrial tent installation, this single-tube kit offers the durability required for repeated professional use at extreme heights.

Why the 12-Foot Single Tube System Matters

In the professional event and industrial sectors, a 12-foot leg height is the premier choice for clearing tall equipment or creating a monumental architectural presence. The 15' x 15' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of standard consumer shelters. The extreme head clearance is critical for accommodating oversized signage, hanging truss systems, or industrial machinery without a "cramped" feeling. For a professional event setup, this translates to a clean, taut canopy line and a superior aesthetic impact. The modular nature of the frame also allows for efficient teardown and organized storage.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 12-Foot Eave Height: Extreme leg height provides maximum interior clearance and high-profile visibility.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Compact 225 Sq. Ft. Footprint: Ideal for square high-clearance layouts, registration towers, or specialized equipment protection.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 15' x 15' frame with 12-foot legs requires precise alignment and a coordinated crew of 3 to 5 people to ensure a safe tent installation given the extreme height.

Step 1: Inventory and Site Layout Clear the installation area and lay out the rafters, spreaders, and four 12-foot legs on a protective drop cloth. Organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement While the frame is still low to the ground, pull your 15' x 15' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the only safe method to manage the fabric before the frame is raised to its full 12-foot height.

Step 4: Raising the Frame With a coordinated crew, lift one side of the frame and insert the 12-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints, especially given the high center of gravity and leverage of 12-foot legs.

Step 5: Critical Anchoring Structures with 12-foot legs have an extremely high wind profile and are highly susceptible to lateral forces. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is mandatory. Tension the straps evenly and consider secondary bracing or heavy-duty weights to ensure the structure remains stable and square.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 15' x 15' vinyl top and professional-grade anchoring hardware.

• Included: All aluminum rafters and spreaders, 12-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Architectural Entryways: Perfect for creating monumental, high-clearance entry points for major galas or corporate centers.
• Industrial Equipment Housing: An ideal solution for protecting tall machinery or outdoor control units during maintenance.
• Media and Camera Risers: Provides a professional-grade, high-elevation shelter for broadcasting equipment at sporting events.
• High-Impact Branding Towers: Offers a stable, high-visibility platform for hanging large-scale banners or promotional displays.
