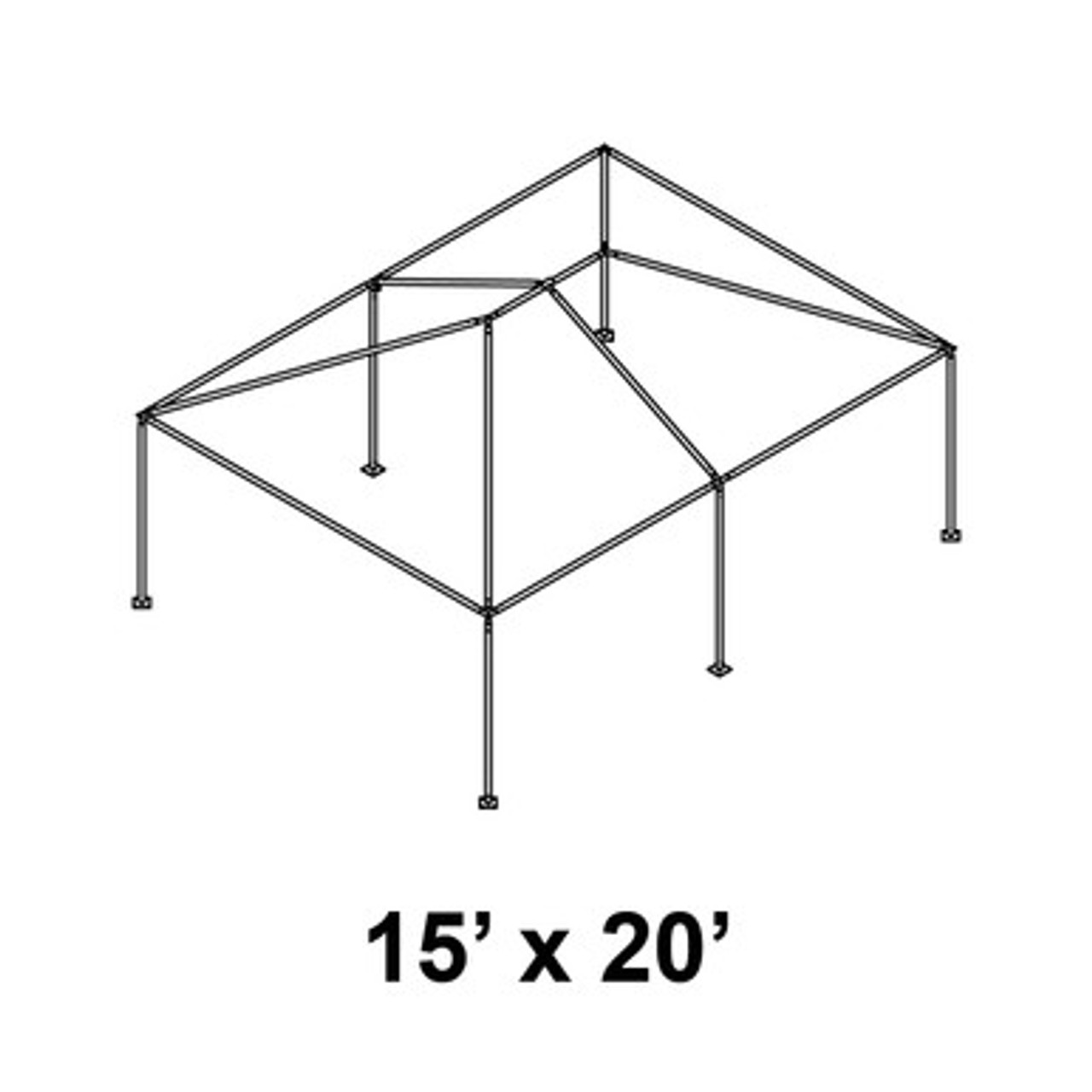

15' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

15' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

The 15' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is a versatile and heavy-duty structural foundation designed for professional event, commercial, and industrial applications. Providing 300 square feet of covered area, this kit is an essential asset for rental companies managing mid-sized garden parties, corporate hospitality suites, or high-traffic vendor spaces. By utilizing high-strength single-tube aluminum construction, the frame remains lightweight for manageable transport while providing the rigidity of a commercial-grade system. The 7-foot leg height offers a traditional profile that is efficient to deploy while providing a reliable eave height for a variety of outdoor environments.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 15' x 20' footprint is a "workhorse" size in the industry, specifically engineered for sites that require more depth than a standard 10-foot or 12-foot structure. Whether you are providing weather protection for a backyard wedding or performing a professional tent installation for a regional festival, this single-tube kit offers the durability required for repeated professional use.

Why the 7-Foot Single Tube System Matters

In the professional event industry, structural reliability is paramount. The 15' x 20' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of consumer-grade shelters. The 7-foot leg height provides a stable, low-profile center of gravity, which is advantageous in areas prone to moderate wind while still offering ample head clearance for guests and equipment. For a professional event setup, this translates to a clean, taut canopy line and a reliable structural footprint. The modular nature of the frame also allows for efficient teardown and organized storage, ensuring the unit can be cycled quickly through high-volume rental seasons.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 7-Foot Eave Height: Standard leg height provides a professional profile and efficient deployment for mid-sized event needs.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Versatile 300 Sq. Ft. Footprint: Ideal for dining layouts, registration hubs, or protected hospitality zones.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 15' x 20' frame is straightforward and can typically be managed by a crew of 2 to 4 people to ensure a safe tent installation.

Step 1: Inventory and Site Layout Clear the installation area and lay out the rafters, spreaders, and 7-foot legs on a protective drop cloth. Organize the components to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement While the frame is still low to the ground, pull your 15' x 20' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the most efficient way to manage the fabric before the frame is raised.

Step 4: Raising the Frame With a coordinated crew, lift one 20-foot side of the frame and insert the 7-foot leg poles into the fittings. Repeat the process for the opposite side. It is important to lift in unison to avoid putting undue stress on the aluminum joints.

Step 5: Secure Anchoring Proper anchoring is critical for safety. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance against lateral forces.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 15' x 20' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 7-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Mid-Sized Garden Parties: Provides a professional and protected area for outdoor dining or seating.
• Corporate Hospitality Suites: An ideal size for creating elite branded spaces at sporting events or festivals.
• High-Traffic Vendor Booths: Perfect for creating a professional-grade, high-depth display area at trade shows.
• Registration and Information Hubs: Offers a reliable, stable structure for managing guest services and queues.
