20' x 20' Gable Series Frame

20' x 20' Gable Series Frame

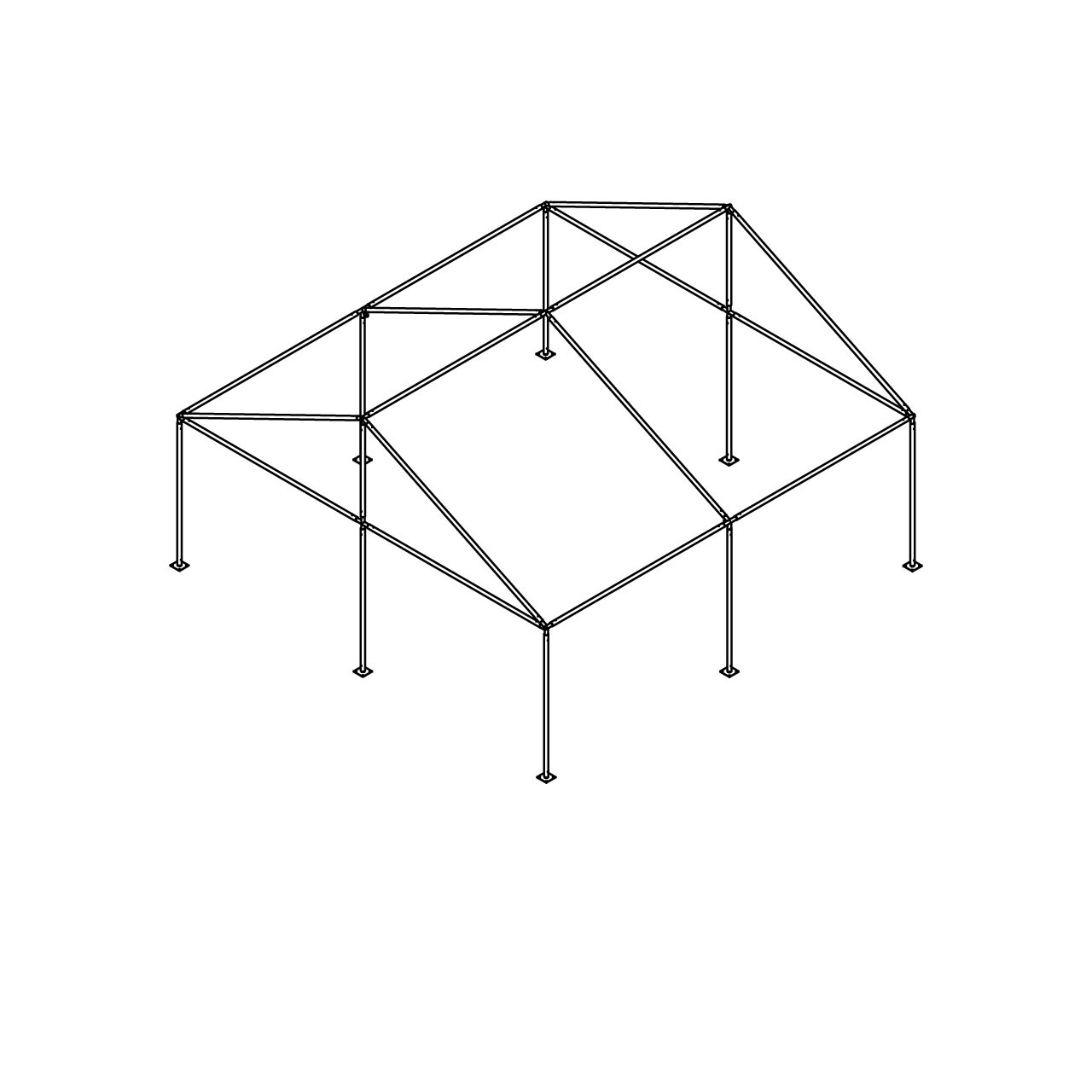

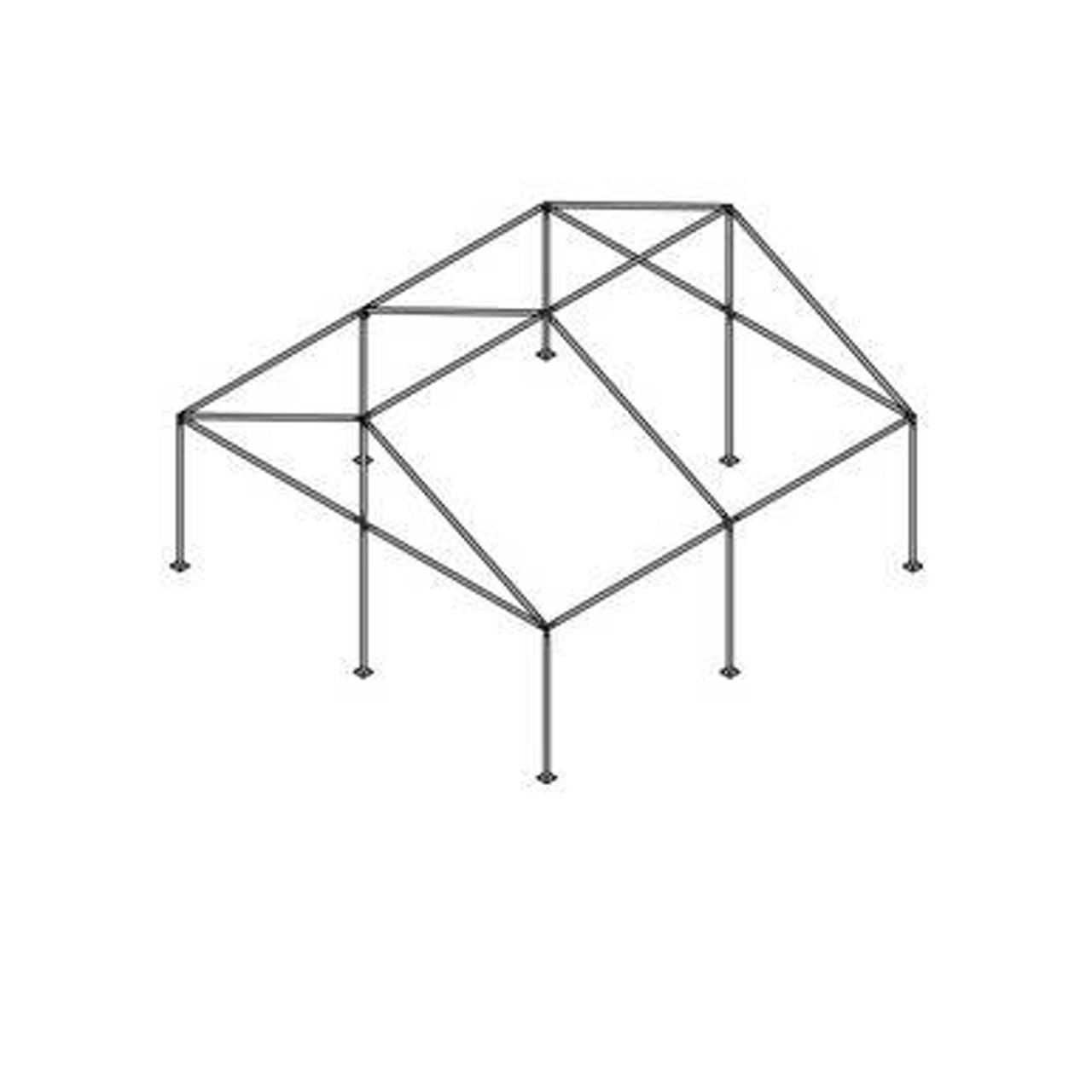

The 20' x 20' Gable Series Frame is a specialized commercial-grade hardware system designed to create a distinct "house-style" architectural profile for mid-sized event spaces. For rental companies and professional planners, this frame serves as the essential structural skeleton for a 400-square-foot gable-ended canopy. Unlike traditional hip-roof frames that slope downward on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a clean, flush connection to existing structures. This kit includes all the necessary aluminum rafters, spreaders, and heavy-duty steel fittings required to maintain a rigid 20-foot square footprint, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height that spans the entire length of the structure. Because this is a frame-supported system, it does not require center poles, maximizing the 400 square feet of usable space for banquet seating, dance floors, or sheltered lounge areas. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be restricted. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, modern lines required for high-end logistics and rental operations.

Why the 20' x 20' Gable Series Frame Matters

The 20' x 20' Gable Series Frame matters because it offers a sophisticated visual and functional alternative to the standard "pyramid" look of traditional frame tents. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the square 20-foot footprint is one of the most versatile sizes in the rental industry, serving as a standalone peak or as a modular component in larger configurations. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment.

Key Features

• Clear-Span Square Design: Provides a completely open 20' x 20' interior with no center poles, maximizing space for equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Corporate Brand Activations: The gable ends are perfect for high-impact logos and branding at trade shows and festivals.
• VIP Lounge Areas: Creates a sophisticated, "outdoor room" feel for upscale weddings or gala events.
• Patio & Deck Extensions: Ideal for restaurants and private residences looking to add a professional, house-like sheltered area.
• Branded Entrance Canopies: The vertical profile makes it an excellent choice for creating a grand entryway at major events.

Compatibility and Inclusions

The 20' x 20' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 20-foot gable inventory.
