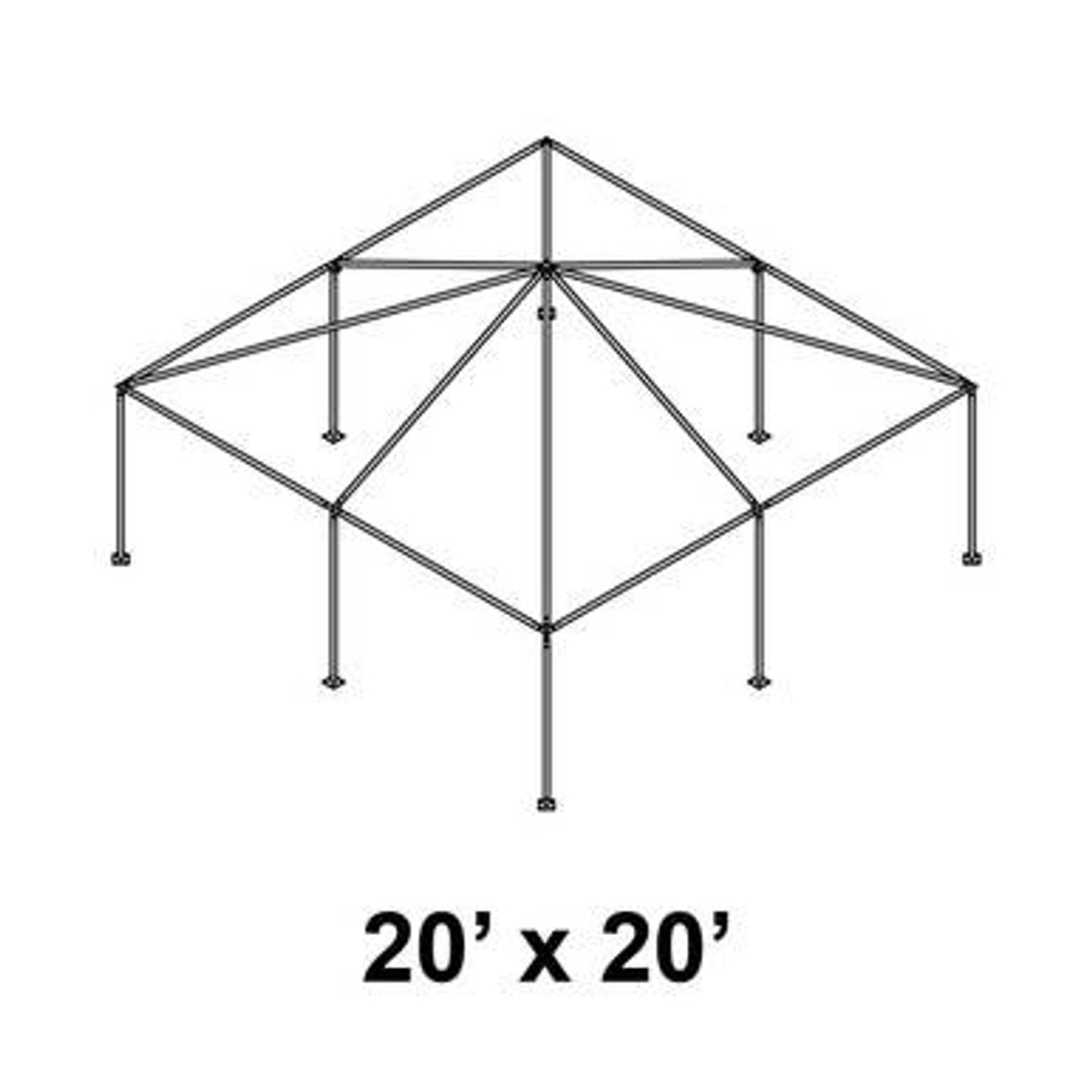

20' x 20' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit

20' x 20' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit

The 20' x 20' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit is a specialized, ultra-high-clearance structural solution engineered for professional applications requiring a standard square footprint with extreme vertical elevation. Providing 400 square feet of covered area, this kit is an essential asset for rental companies managing high-visibility VIP activations, grand architectural entryways, or industrial equipment coverage. By utilizing high-strength single-tube aluminum construction, the frame remains manageable for transport while providing the rigidity of a commercial-grade system. The 12-foot leg height offers a majestic interior profile, which is critical for maximizing airflow, visibility, and clearance for tall obstructions.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 20' x 20' footprint is a versatile industry standard, and when combined with 12-foot legs, it creates a commanding, tower-like presence for any event setup. Whether you are providing weather protection for a luxury brand activation or performing an industrial tent installation over existing structures, this single-tube kit offers the durability and height required for elite professional use.

Why the 12-Foot Single Tube System Matters

In the professional event and industrial sectors, a 12-foot leg height is the premier choice for clearing tall site obstacles, such as statues or machinery, or for creating an unmatched sense of volume. The 20' x 20' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of standard consumer shelters. The extreme head clearance is critical for accommodating large-scale hanging decor, tiered grandstand seating, or tall industrial exhaust systems without a "cramped" feeling. For a professional event setup, this translates to a clean, taut canopy line and a premium, high-impact experience. The modular nature of the frame also allows for efficient teardown and organized storage.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 12-Foot Eave Height: Ultra-high leg height provides maximum interior clearance and a prestigious profile for high-traffic zones.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Standard 400 Sq. Ft. Footprint: Ideal for boutique dining, registration hubs, or high-end hospitality zones.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 20-foot frame with 12-foot legs requires expert alignment and a coordinated crew of 2 to 4 people to ensure a safe tent installation.

Step 1: Inventory and Site Layout Clear the installation area and lay out the rafters, spreaders, and 12-foot legs on a protective drop cloth. Organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly Assemble the roof framework at ground level by connecting the crown to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement While the frame is still low to the ground, pull your 20' x 20' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the only safe method to manage the fabric before the frame is raised to its full 12-foot height.

Step 4: Raising the Frame With a coordinated crew, lift one side of the frame and insert the 12-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints, especially given the significant leverage and weight of 12-foot legs.

Step 5: Critical Anchoring Structures with 12-foot legs have an extremely high wind profile and are highly susceptible to lateral forces. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 20' x 20' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 12-foot aluminum legs, and all required steel fittings (corners and crown).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Majestic VIP Hospitality: Perfect for creating ultra-high-clearance, prestigious square spaces at major sporting events or festivals.
• Grand Architectural Entryways: An ideal size for creating a high-impact, covered arrival experience for large-scale events.
• Industrial Site Obstacle Clearance: A reliable solution for covering tall equipment or providing high-clearance workspaces during maintenance.
• High-Visibility Event Hubs: Offers a professional-grade, maximum-clearance shelter for high-traffic guest services in busy environments.
