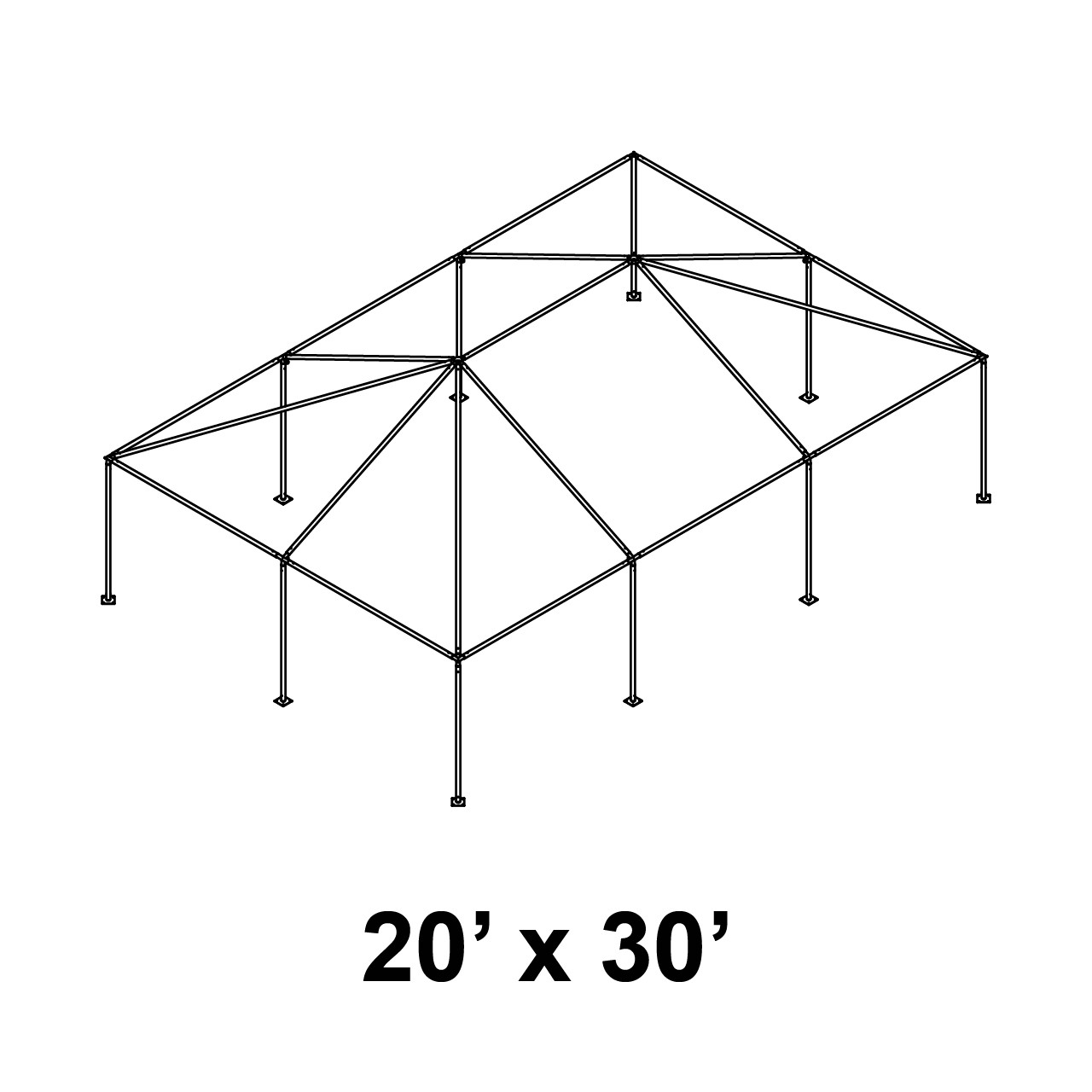

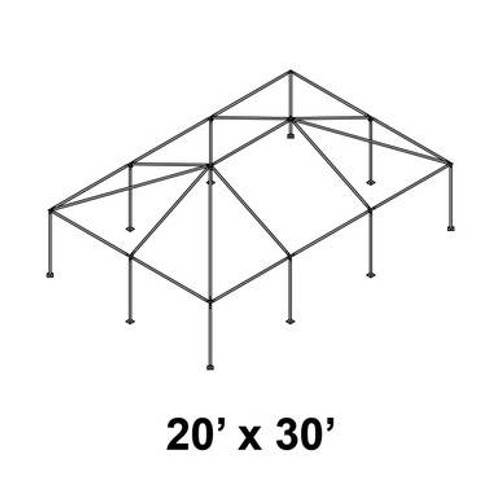

20' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit

20' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit

The 20' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit is a premium structural foundation engineered for professional applications requiring a large rectangular footprint with maximum vertical elevation. Providing 600 square feet of covered area, this kit is an essential asset for rental companies managing high-visibility VIP lounges, wedding receptions, or corporate exhibition spaces. By utilizing high-strength single-tube aluminum construction, the frame remains manageable for transport while providing the rigidity of a commercial-grade system. The 10-foot leg height offers a vastly more open interior profile, which is critical for maintaining airflow, improving sightlines, and creating a prestigious atmosphere in high-traffic environments.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 20' x 30' footprint is one of the most popular sizes in the industry, and when combined with 10-foot legs, it creates a commanding presence for any event setup. Whether you are providing weather protection for a luxury brand activation or performing a professional tent installation for a community gala, this single-tube kit offers the durability required for repeated professional use at significant heights.

Why the 10-Foot Single Tube System Matters

In the professional event and industrial sectors, a 10-foot leg height is the premier choice for creating an airy, high-end environment or clearing tall site obstacles. The 20' x 30' Classic Frame Aluminum Single Tube 10' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of standard consumer shelters. The superior head clearance is critical for accommodating large-scale signage, overhead climate control systems, or elaborate lighting rigs without a "cramped" feeling for guests. For a professional event setup, this translates to a clean, taut canopy line and a premium experience. The modular nature of the frame also allows for efficient teardown and organized storage.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 10-Foot Eave Height: Maximum leg height provides superior interior clearance and improved comfort for high-traffic zones.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Versatile 600 Sq. Ft. Footprint: Ideal for mid-to-large dining layouts, registration hubs, or high-end hospitality zones.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 20' x 30' frame with 10-foot legs requires precise alignment and a coordinated crew of 3 to 4 people to ensure a safe tent installation.

Step 1: Inventory and Site Layout Clear the installation area and lay out the rafters, spreaders, and 10-foot legs on a protective drop cloth. Organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement While the frame is still low to the ground, pull your 20' x 30' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the only safe method to manage the fabric before the frame is raised to its full 10-foot height.

Step 4: Raising the Frame With a coordinated crew, lift one long side of the frame and insert the 10-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints, especially given the added leverage of 10-foot legs.

Step 5: Critical Anchoring Structures with 10-foot legs have a high wind profile and are highly susceptible to lateral forces. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 20' x 30' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 10-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• High-End VIP Hospitality: Perfect for creating high-clearance, prestigious elongated spaces at major sporting events or festivals.
• Wedding Reception Dining: Provides a professional and protected area for guest seating with ample room for decor and lighting.
• Grand Event Entryways: An ideal size for creating a high-impact, covered arrival experience for large-scale galas.
• High-Visibility Exhibition Hubs: Offers a professional-grade, high-clearance shelter for trade shows or community information hubs in high-traffic environments.
