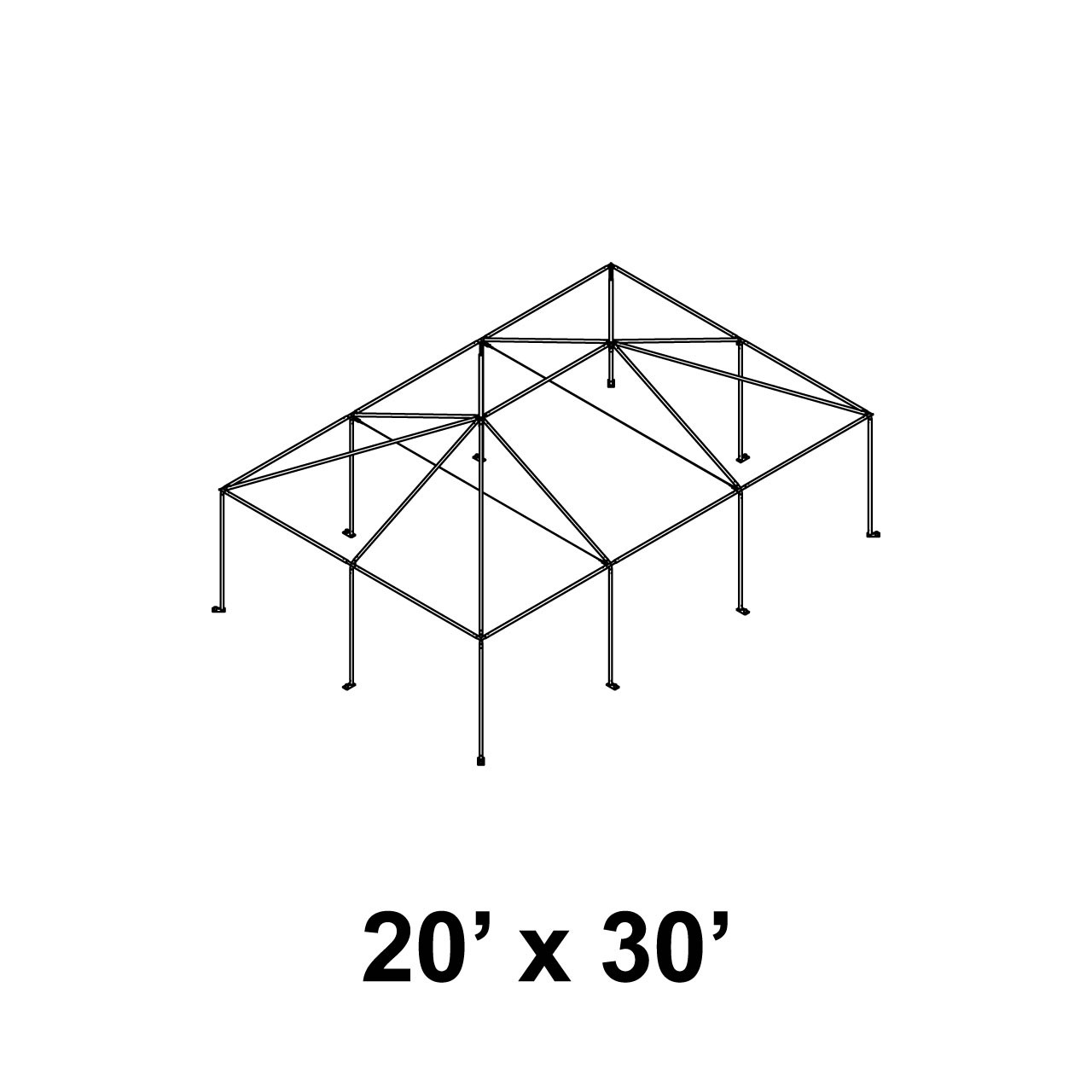

20' x 30' Master Series High Peak Frame

20' x 30' Master Series High Peak Frame tent frame kit

The 20' x 30' Master Series High Peak Frame is a commercial-grade tent frame hardware system engineered for event rental companies and install crews that require a sturdy and visually striking support structure. This frame creates a spacious 20' x 30' covered space with an elevated peak profile that pairs with compatible Master Series canopy tops and anchoring accessories, delivering reliable performance for weddings, festivals, trade shows, and other outdoor functions.

Designed for frequent installs and teardown workflows, the Master Series High Peak Frame offers interior flexibility, fast setup, and a professional look that enhances guest experience and venue presentation.

Why it matters

A high peak frame increases headroom, improves water runoff, and provides a classic silhouette that keeps guests comfortable and crews efficient. A durable frame improves installation speed, crew coordination, and long-term life in high-cycle rental environments.

Key features

• Engineered for 20' x 30' Master Series High Peak tent configurations
• Includes all necessary frame tubing, fittings, and assembly pins
• High peak design enhances interior headroom and visual appeal
• Durable West Coast style components for easy part interchangeability
• No center pole for unobstructed interior space
• Heavy-duty frame built for frequent setup and teardown cycles

Compatibility and inclusions

• Designed to fit 20' x 30' Master Series High Peak tents
• Frame only — tent top, anchoring stakes, weights, and accessories sold separately
• Compatible with a range of Master Series canopy tops and hardware accessories

How to use and best practices

1. Organize frame components

Before beginning setup, lay out all frame tubing, fittings, and assembly pins in a clean staging area. Confirm all components needed for the 20' x 30' frame layout are present to keep installation smooth and efficient.

2. Assemble base and vertical supports

Connect base rails and vertical supports according to Master Series frame layout guidelines. Ensure pins and fittings are fully seated and secure to maintain structural integrity throughout the frame’s footprint.

3. Raise high peak section

Once the base and uprights are in place, assemble the high peak supports. Work with crew members to maintain even alignment, which supports proper canopy tensioning and overall performance.

4. Secure anchoring

Install stakes or approved weight systems appropriate for the surface and expected weather conditions. Proper anchoring enhances stability and safety throughout the event duration.

5. Teardown and storage

To strike the tent, reverse the setup steps. Start by removing anchoring, then disassemble frame components in reverse order of assembly. Store hardware in labeled containers so crews can quickly locate parts for future events.

Specifications

• Designed for: 20' x 30' Master Series High Peak tent configurations
• Includes: Frame tubing, fittings, and assembly pins
• Frame style: West Coast style interchangeable components
• Peak design: High peak for enhanced headroom
• Tent top: Sold separately
• Anchoring equipment: Not included

Ideal for

• Rental companies expanding mid-size frame inventory
• Outdoor weddings, festivals, and corporate events
• Trade shows, markets, and exhibition spaces
• Crew teams focused on efficient setup, teardown, and professional presentation
