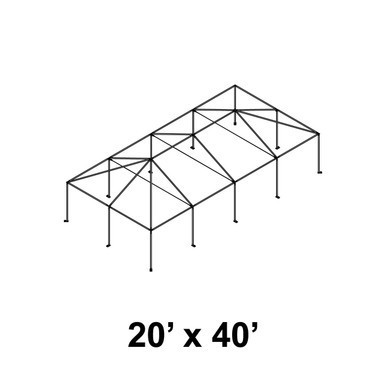

20' x 40' Master Series High Peak Frame

20' x 40' Master Series High Peak Frame tent frame kit

The 20' x 40' Master Series High Peak Frame is a commercial-grade tent frame hardware system engineered for event rental companies and installation crews that need a dependable, spacious support structure for Master Series canopy tents. This frame creates a robust 20' x 40' covered space with an elevated peak silhouette that pairs with compatible Master Series canopy tops and anchoring accessories to deliver reliable performance at weddings, festivals, corporate events, and other large outdoor functions.

Designed for frequent setup and teardown workflows, this Master Series High Peak Frame offers interior flexibility, professional presentation, and structural strength that helps crews work efficiently on site.

Why it matters

High peak frames improve headroom and water runoff while maximizing usable interior space. For rental companies and install crews, this means faster setup times, better guest comfort under canopy, and a more polished result — all while maintaining durability across multiple event cycles.

Key features

• Engineered for 20' x 40' Master Series High Peak tent configurations
• Includes all necessary frame tubing, fittings, and assembly pins
• High peak design increases interior headroom and aesthetic appeal
• West Coast style components support interchangeable parts with other Master Series hardware
• Durable frame built for frequent install and teardown cycles
• Professional hardware optimized for efficient crew workflows

Compatibility and inclusions

• Designed to fit 20' x 40' Master Series High Peak tents
• Frame only — tent top, anchoring stakes, weights, and accessories sold separately
• Compatible with a wide range of Master Series canopy tops, rigging hardware, and accessories

How to use and best practices

1. Organize frame components

Before starting setup, lay out all frame tubing sections, fittings, and assembly pins in a clean staging area. Confirm all pieces required for the 20' x 40' layout are present to keep installation efficient and error-free.

2. Assemble base and vertical supports

Connect base rails and vertical supports following Master Series frame layout guidelines. Ensure each pin and fitting is fully seated and secure to maintain structural integrity throughout the frame’s footprint.

3. Raise high peak section

Once the base and uprights are in place, assemble the high peak supports. Work with crew members to ensure even alignment, which supports proper canopy tensioning and optimal performance.

4. Secure anchoring

Install stakes or approved weight systems appropriate for the surface and expected weather conditions. Proper anchoring enhances stability and safety throughout the event duration.

5. Teardown and storage

To strike the tent, reverse the setup steps. Begin by removing anchoring, then disassemble frame components in reverse order of assembly. Store hardware in labeled containers so crews can quickly locate parts for future events and maintain organized inventory.

Specifications

• Designed for: 20' x 40' Master Series High Peak tent configurations
• Includes: Frame tubing, fittings, and assembly pins
• Frame style: West Coast style interchangeable components
• Peak design: High peak for enhanced interior headroom
• Tent top: Sold separately
• Anchoring equipment: Not included

Ideal for

• Rental companies expanding large high peak frame inventories
• Weddings, corporate events, and outdoor celebrations
• Festivals, markets, and exhibition spaces
• Crew teams focused on efficient setup, teardown, and professional presentation
