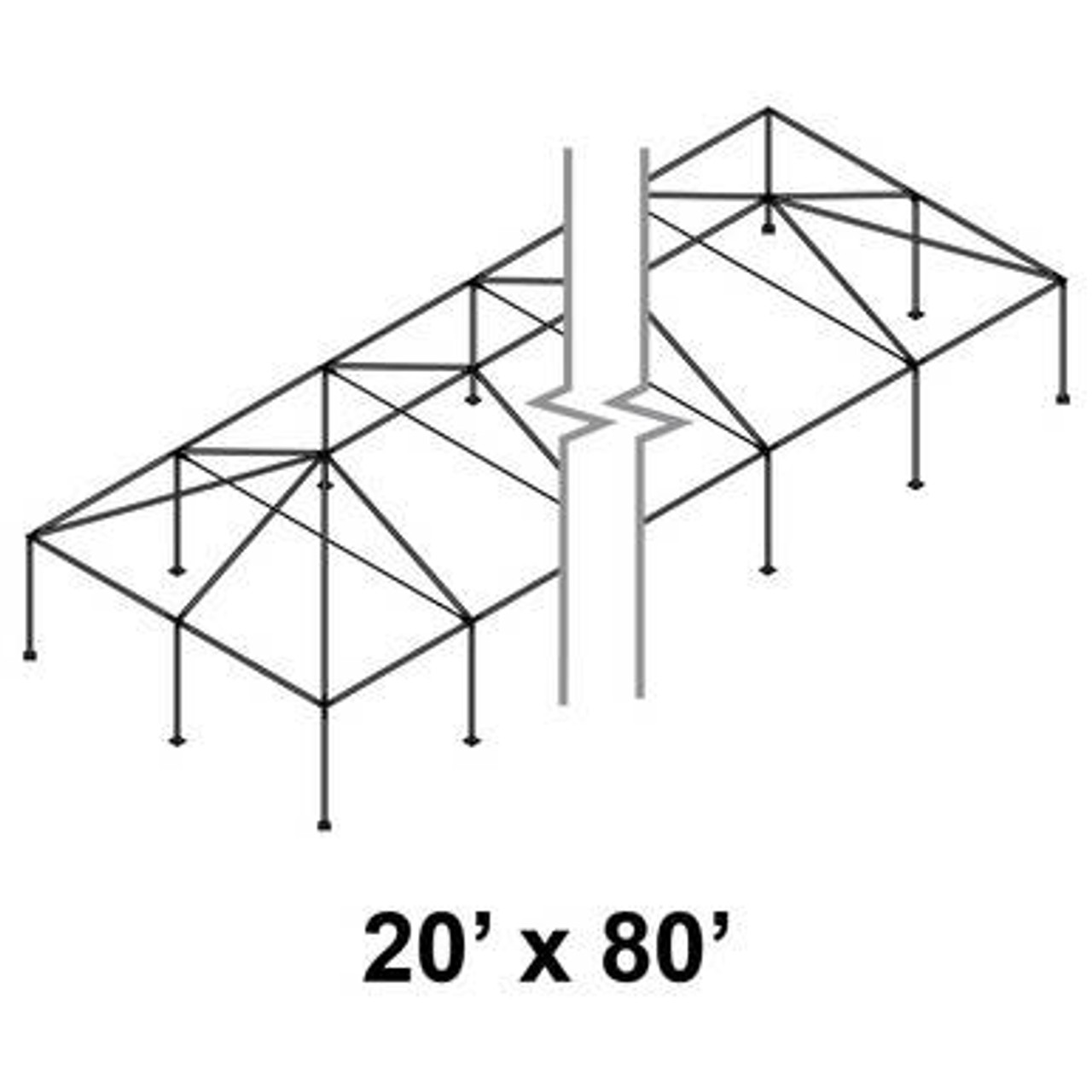

20' x 80' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit

20' x 80' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit

The 20' x 80' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit is a heavy-duty structural foundation engineered for large-scale professional applications requiring extreme linear coverage with increased vertical clearance. Providing a massive 1,600 square feet of covered area, this kit is an essential asset for rental companies managing high-capacity outdoor wedding receptions, corporate gala dinners, or expansive vendor rows. By utilizing high-strength single-tube aluminum construction, the frame remains manageable for transport despite its significant length, while providing the rigidity of a commercial-grade system. The 8-foot leg height offers a more spacious interior profile, improving airflow and visibility for high-traffic environments across the entire 80-foot span.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 20' x 80' footprint is specifically engineered for sites that require maximum linear coverage while maintaining a prestigious, open feel. Whether you are providing weather protection for a major corporate hospitality suite or performing a professional tent installation for a community festival, this single-tube kit offers the durability required for repeated professional use.

Why the 8-Foot Single Tube System Matters

In the professional event industry, the 8-foot leg height has become the preferred standard for creating a more inviting and premium atmosphere. The 20' x 80' Classic Frame Aluminum Single Tube 8' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of consumer-grade shelters. The additional head clearance is critical for accommodating taller equipment, large-scale signage, or overhead lighting rigs without a "cramped" feeling for guests. For a professional event setup, this translates to a clean, taut canopy line and a superior aesthetic impact across the entire 80-foot length. The modular nature of the frame also allows for efficient teardown and organized storage.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 8-Foot Eave Height: Elevated leg height provides superior interior clearance and improved comfort for guests and staff.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Massive 1,600 Sq. Ft. Footprint: Ideal for high-capacity dining layouts, long-format registration hubs, or protected hospitality zones.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling an 80-foot-long frame requires precise alignment and a coordinated crew of 6 to 8 people to ensure a safe tent installation.

Step 1: Inventory and Site Layout Clear the installation area and lay out the rafters, spreaders, and 8-foot legs on a protective drop cloth. Given the extreme length, organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting or "snaking" during the lift.

Step 3: Vinyl Top Placement While the frame is still low to the ground, pull your 20' x 80' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the most efficient way to manage the massive volume of fabric before the frame is raised.

Step 4: Raising the Frame With a coordinated crew distributed along the length, lift one 80-foot side of the frame and insert the 8-foot leg poles into the fittings. Repeat the process for the opposite side. It is critical to lift in unison to avoid putting undue stress on the aluminum joints over the extreme span.

Step 5: Secure Anchoring Proper anchoring is critical for safety on large structures, especially with the higher wind profile of 8-foot legs. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance against lateral forces.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 20' x 80' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 8-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• High-Capacity Event Dining: Provides a professional and protected area for large-scale guest seating with a spacious feel.
• Corporate Hospitality Suites: An ideal size for creating elite branded spaces at major sporting events or multi-day festivals.
• Extended Festival Hubs: Perfect for creating large-scale protected zones for multiple vendors or VIP guest services.
• Industrial Material Protection: A reliable solution for covering extensive rows of equipment or materials during maintenance.
