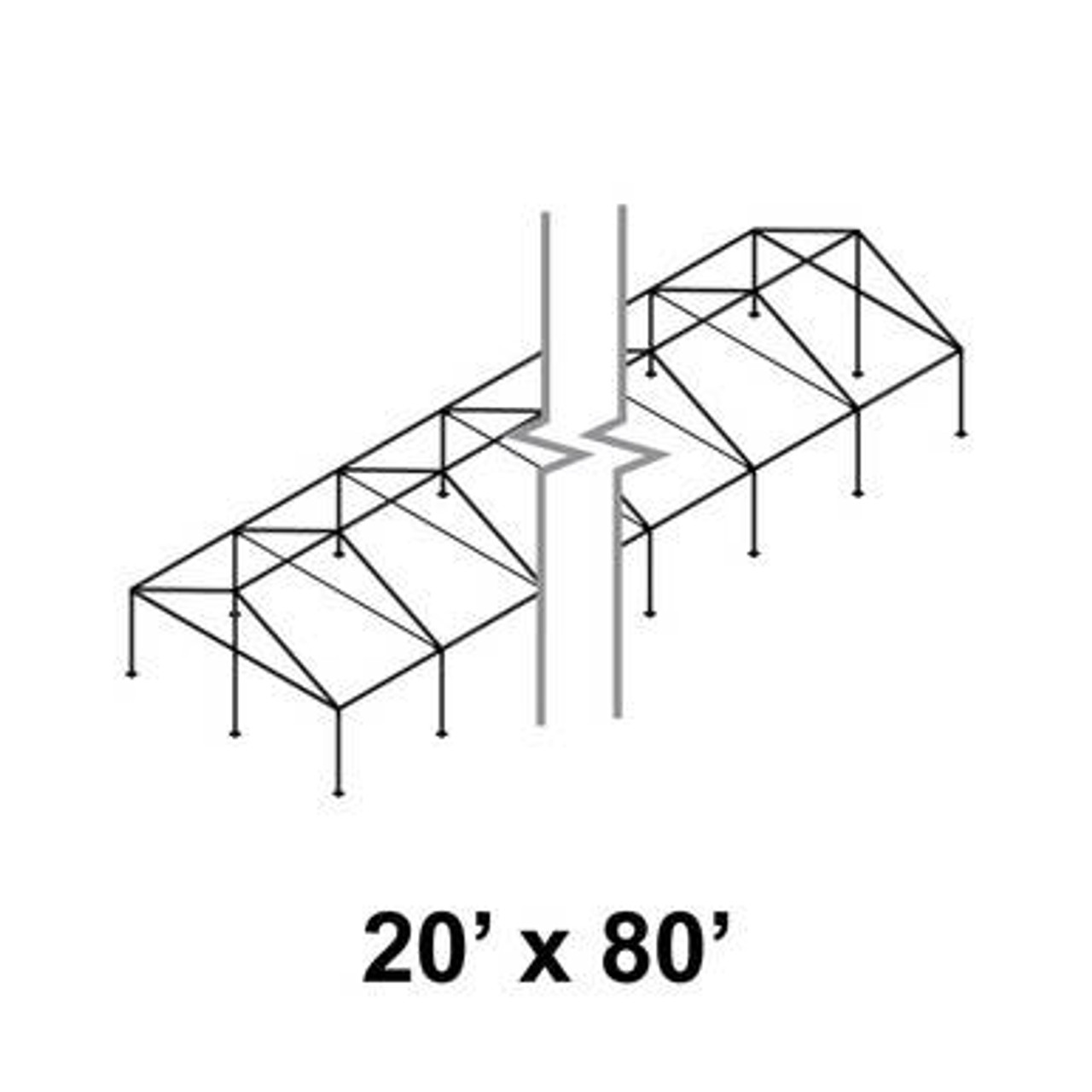

20' x 80' Gable Series Frame

20' x 80' Gable Series Frame

The 20' x 80' Gable Series Frame is an industrial-strength hardware system designed to support a massive 1,600-square-foot "house-style" event structure. For rental companies and large-scale event planners, this frame serves as the essential structural skeleton required to create a long, wide-span, gable-ended canopy. Unlike standard hip-roof frames that slope downward on all four sides, the Gable Series features vertical triangular end-caps. This architectural design provides a flat, prominent vertical surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a seamless, flush connection against existing buildings. This kit includes all the necessary heavy-duty aluminum rafters, spreaders, and reinforced steel fittings required to maintain a rigid 80-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height that runs the entire 80-foot length of the structure. Because this is a frame-supported system, it does not require center poles, maximizing the 1,600 square feet of usable space for unobstructed banquet seating, long-form vendor rows, or sheltered pedestrian corridors. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be limited. This frame is precisely calibrated to ensure the correct pitch for efficient water runoff while maintaining the sharp, modern aesthetic required for high-end logistics and rental operations.

Why the 20' x 80' Gable Series Frame Matters

The 20' x 80' Gable Series Frame matters because it offers a unique functional and visual alternative to the standard "pyramid" look of traditional large-scale frame tents. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 20-foot width combined with the 80-foot length provides a substantial "hall" feel, making it ideal for massive patio extensions or temporary corridors where a standard tent might feel too temporary. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for large-scale corporate or municipal events.

Key Features

• Clear-Span Long-Form Design: Provides a completely open 20' x 80' interior with no center poles, maximizing floor space for guests, equipment, and linear traffic.
• Gable-End Architecture: Features vertical end-caps that offer a distinct architectural look and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over the massive 80-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• High-Capacity Hospitality Corridors: Perfect for creating long, weather-protected paths between event buildings or VIP transport hubs.
• Large-Scale Building Extensions: The vertical gable ends allow the tent to be placed flush against a permanent structure for seamless transitions across an 80-foot span.
• Elongated Event Showrooms: Ideal for automotive displays or product launches where large vertical graphics are required at the entrance and exit.
• Professional Vendor Rows: Provides a "market hall" feel for festivals and street fairs, offering ample room for dual-sided vendor stalls.

Compatibility and Inclusions

The 20' x 80' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 80-foot gable inventory.
