24'' Stake Plate

24 Inch Stake Plate for Augmented Tent Anchoring

24 Inch Stake Plate tent anchoring hardware is built for installations that demand increased holding strength at each stake location. Designed to support multiple ground stakes at a single anchor point, this stake plate helps improve stability when soil conditions are poor or when weather conditions may place additional stress on the tent structure. It is commonly used by event rental companies and professional install crews managing large-scale event setup and teardown.

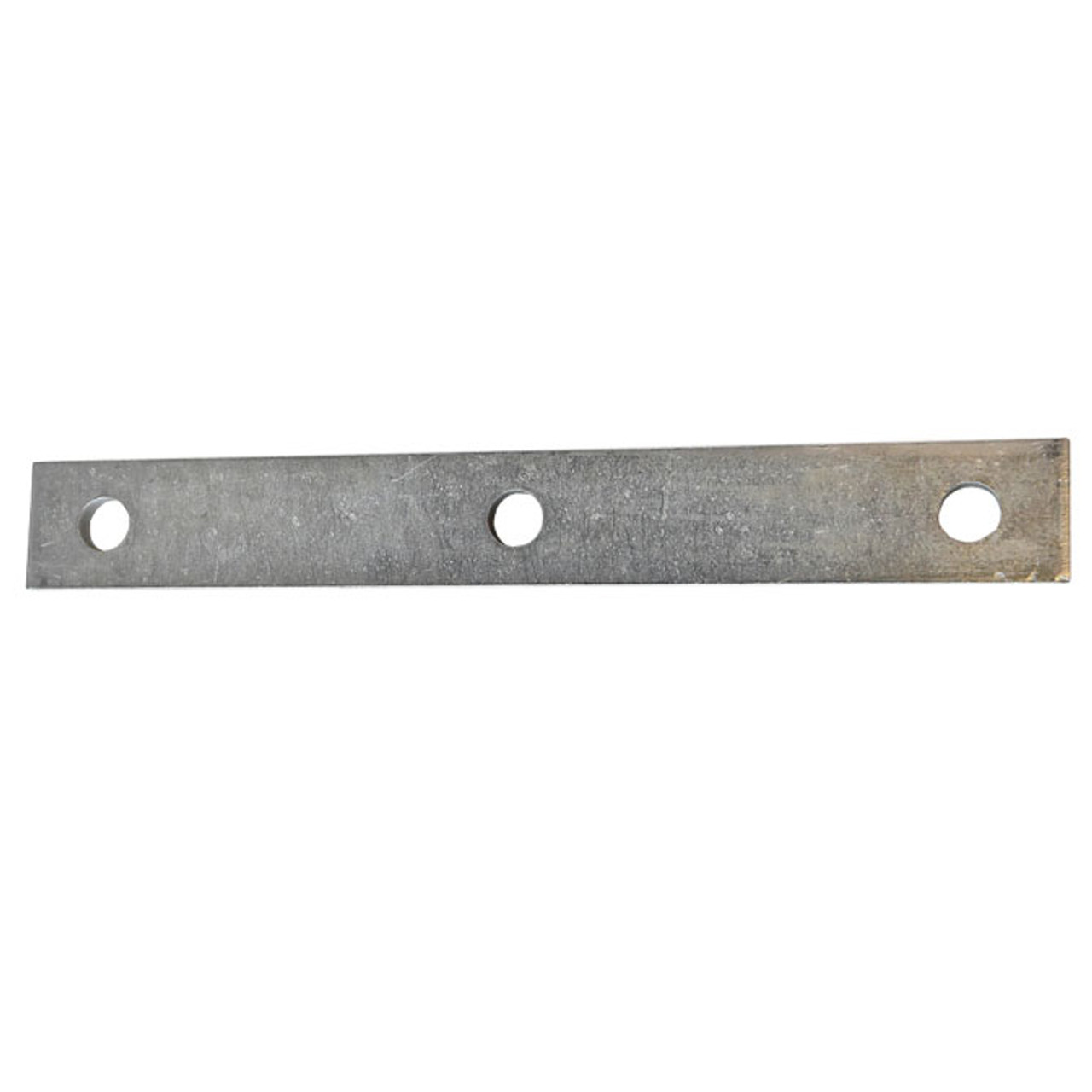

Each 24 Inch Stake Plate features three stake holes, allowing installers to reinforce a single anchoring point with additional stakes instead of relying on one stake alone. When properly installed, the plate sits parallel to the tent perimeter, creating a broader soil wedge that improves resistance and reduces movement under load.

Why This Stake Plate Matters

In challenging environments, standard staking may not provide enough holding power to safely secure a tent. The 24 Inch Stake Plate increases anchoring performance by distributing force across multiple stakes, helping crews maintain stability, reduce strain on guy lines, and improve safety during high-tension installations. This added reinforcement supports reliable tent installation in soft ground, uneven terrain, or during less-than-ideal weather conditions.

Key Features

• Three-hole design allows multiple stakes at a single anchoring location
• Improves holding power in poor or unstable soil conditions
• Installed parallel to the tent perimeter for effective load distribution
• Center hole aligns with tent guy lines for primary load connection
• Durable construction suitable for repeated event setup and teardown

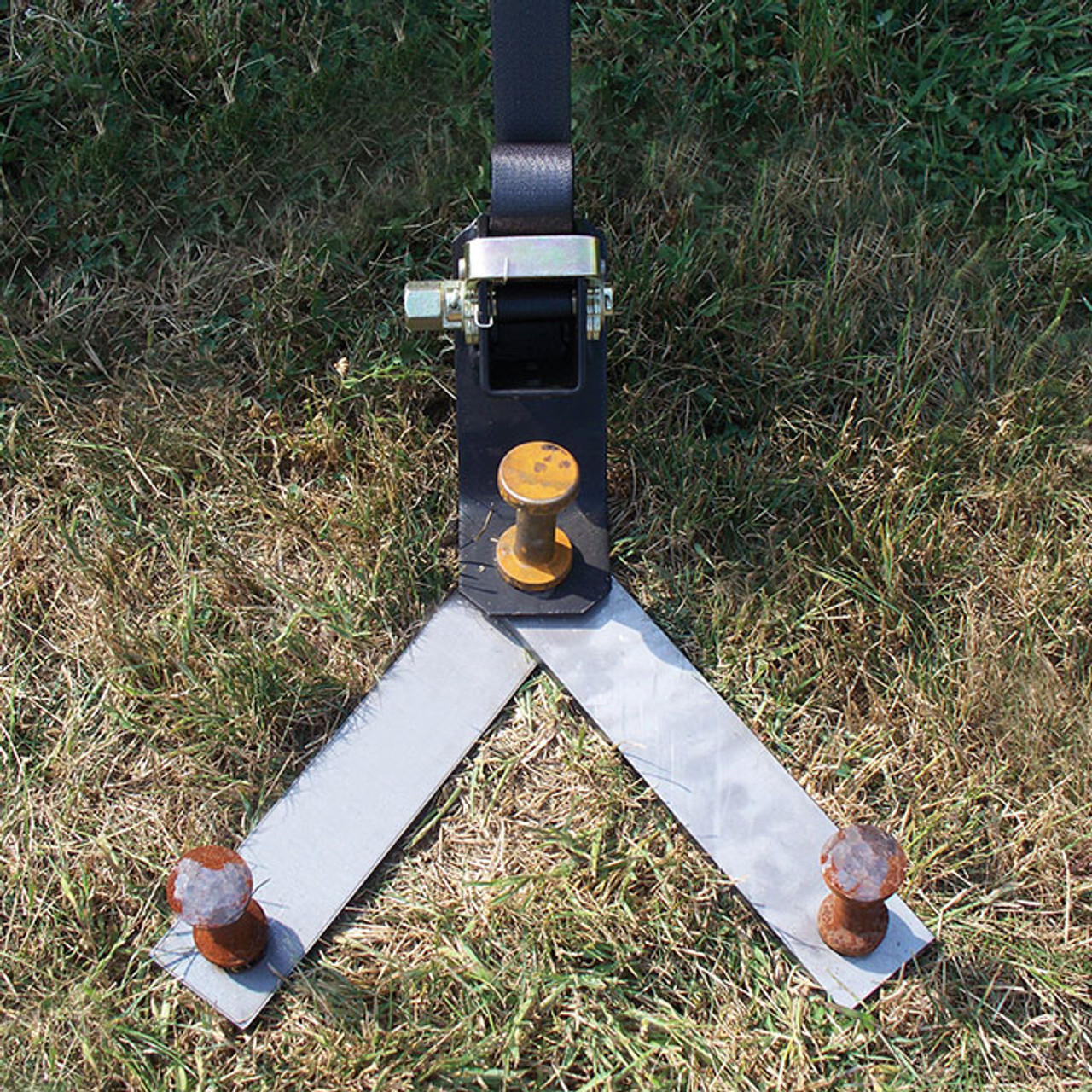

How to Use the 24 Inch Stake Plate

Step 1: Position the Plate

Place the stake plate parallel to the tent perimeter at the designated anchor point. Proper alignment ensures that all stakes contribute evenly to soil resistance and anchoring strength.

Step 2: Install the Center Stake

Drive a ground stake through the center hole of the stake plate. This stake serves as the primary anchor and should be the one connected directly to the tent using guy lines, ropes, or ratchet straps.

Step 3: Install Additional Stakes

Drive additional stakes through the remaining holes in the stake plate. These secondary stakes reinforce the center stake by adding extra soil resistance behind the primary anchor point.

Step 4: Tension and Inspect

Attach the tent guy lines to the center stake and apply proper tension. Inspect all stakes to ensure they are fully seated and stable before completing the rest of the tent installation.

Specifications

• Length: 24 inches (61 cm)
• Width: 3 inches (7.6 cm)
• Height: 0.5 inches (1.3 cm)
• Hole Diameter: 1 1/4 inches (3.2 cm)
• Weight: 9.6 lbs (4.4 kg)

Ideal For

• Event rental companies requiring reinforced tent anchoring
• Install crews working in poor or loose soil conditions
• High-wind or weather-sensitive tent installations
• Large event setup where added anchoring stability is critical

Installation Notes

The 24 Inch Stake Plate is intended to be used as part of a complete tent anchoring system. It does not replace proper site evaluation or standard staking practices but enhances anchoring performance where additional support is required. For best results, all stakes should be driven to appropriate depth and checked periodically throughout the event, especially after weather changes or ground shifts.
