30" x 5/8" Auger Stake

30 Inch by 5/8 Inch Auger Stake with Double Helix for Soft Ground Anchoring

30 Inch by 5/8 Inch Auger Stake tent anchoring hardware is designed to enhance holding power in soft or wet soil conditions where straight stakes may not provide adequate resistance. This auger stake features a double helix coil that engages the surrounding soil to resist both vertical pullout and angled loads created by tent straps or ropes. It is commonly used by event rental companies and install crews working in challenging ground conditions.

The extended length and dual-coil design help create a more secure mechanical hold in the soil. When properly installed, the auger stake reduces movement and supports more stable tent anchoring during event setup, use, and teardown.

Why Auger Anchoring Matters

Soft, sandy, or wet ground can significantly reduce the effectiveness of standard straight stakes. The double helix design of the 30 Inch Auger Stake helps prevent the stake from being pulled directly out of the ground while also resisting angled forces from tensioned straps or ropes. This added resistance supports safer installations and more reliable performance in less desirable soil conditions.

Key Features

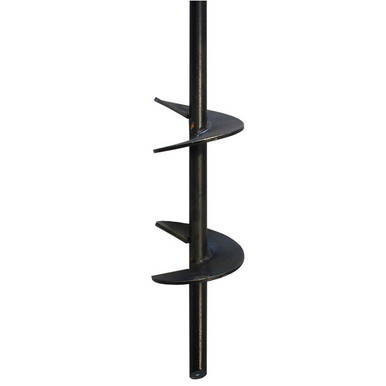

• Double helix coil enhances holding power in soft or wet soil
• Resists both vertical pullout and angled loads
• Designed for use with tent straps and ropes
• Longer length supports deeper soil engagement
• Suitable for professional event setup and anchoring workflows

How to Use the 30 Inch Auger Stake

Step 1: Position the Stake

Place the bottom of the auger stake at the designated anchoring point. Press the stake into the ground until the coils reach the soil surface.

Step 2: Drill the Stake into the Ground

Turn the stake to allow the double helix coils to drill into the soil. Continue rotating until the stake is fully seated and stable.

Step 3: Set Proper Exposure

Always install the stake so that 6 inches (152.4 mm) or less is showing above the ground. Proper depth helps ensure maximum holding strength and stability.

Step 4: Attach and Tension

Attach the tent strap or rope to the stake and apply appropriate tension. Confirm the stake remains stable under load.

Step 5: Inspect and Monitor

Inspect the stake and anchoring point before use and periodically during the event, especially if soil conditions change due to moisture or traffic.

Specifications

• Stake Length: 30 inches (0.76 m)
• Stake Diameter: 5/8 inch (15.88 mm)
• Helix Size: 4 inches double helix coil (101.6 mm)
• Weight: 4.5 lbs (2.04 kg)

Ideal For

• Soft, sandy, or wet soil conditions
• Tent anchoring where straight stakes lack holding power
• Event rental companies managing varied installation sites
• Install crews requiring enhanced ground resistance

Usage Notes

The 30 Inch by 5/8 Inch Auger Stake is intended to enhance tent anchoring performance in soil conditions that reduce the effectiveness of traditional stakes. Always install auger stakes to the recommended depth, leaving no more than 6 inches above ground. Selection should be based on load requirements, soil conditions, and weather expectations. Proper installation, routine inspection, and correct anchor selection help support safe setups, efficient teardown, and reliable performance across repeated event deployments.
