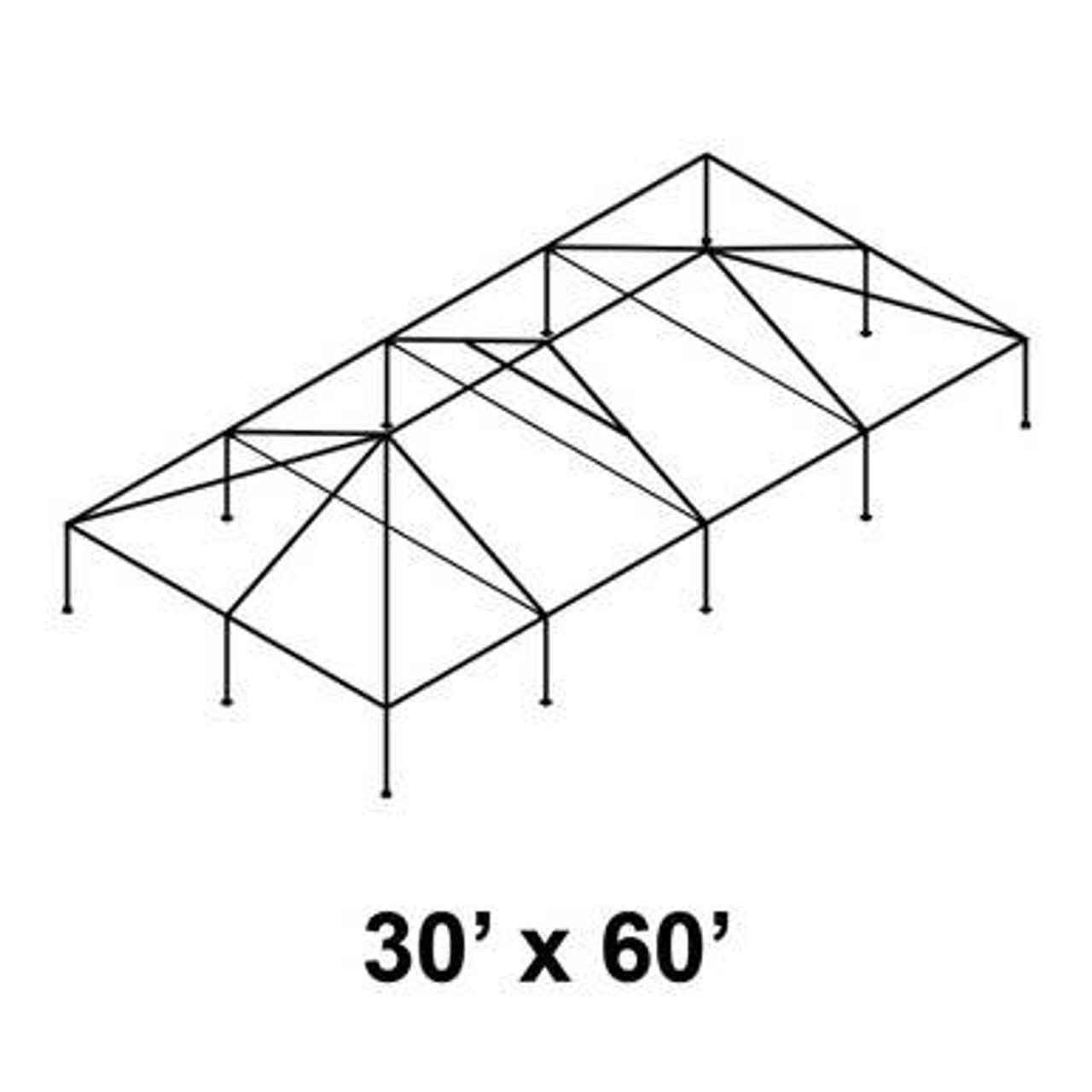

30' x 60' Classic Frame Aluminum Single Tube 9' Pole and Fitting Kit

30' x 60' Classic Frame Aluminum Single Tube 9' Pole and Fitting Kit

The 30' x 60' Classic Frame Aluminum Single Tube 9' Pole and Fitting Kit is a heavy-duty structural foundation engineered for professional applications requiring expansive, unobstructed coverage with a customized interior height. Providing 1,800 square feet of covered area, this kit is an essential asset for rental companies managing large-scale outdoor wedding receptions, corporate gala dinners, or major community festivals. By utilizing high-strength single-tube aluminum construction, the system maintains a manageable weight-to-strength ratio for efficient transport and assembly. The 9-foot leg height offers a unique mid-range profile, providing significantly more headroom and airflow than standard legs while remaining easier to handle during installation than extreme height options.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, all components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular fleet flexibility. The 30' x 60' footprint is a versatile powerhouse for sites that require substantial depth and length without the need for center poles. Whether you are performing a complex tent installation for a regional milestone or providing industrial-grade weather protection, this kit offers the durability and specialized height required for repeated professional use.

Why the 9-Foot Single Tube System Matters

In the professional event industry, a 9-foot leg height is often the "sweet spot" for high-end aesthetics and functional clearance. The 30' x 60' Classic Frame Aluminum Single Tube 9' Pole and Fitting Kit is engineered to stay square and secure, providing a stable environment that far exceeds the capabilities of consumer-grade shelters. The additional vertical clearance is ideal for accommodating tiered stage platforms, large-scale signage, or overhead climate control systems without a "cramped" feeling for guests. For a professional event setup, this translates to a clean, taut canopy line and a superior aesthetic impact across a massive 1,800 sq. ft. area. The modular nature of the frame also allows for efficient teardown and organized storage.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 9-Foot Eave Height: Specialized leg height provides superior interior clearance and improved comfort for high-traffic zones.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability and rust resistance.
• Massive 1,800 Sq. Ft. Footprint: Ideal for high-capacity dining layouts, expansive registration hubs, or protected hospitality zones.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 30' x 60' frame with 9-foot legs requires precise alignment and a coordinated crew of 6 to 8 people to ensure a safe tent installation.

Step 1: Inventory and Site Layout Clear the installation area and lay out the rafters, spreaders, and 9-foot legs on a protective drop cloth. Organize the components meticulously to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Verify that every joint is secured with R-pins or pin-and-bail fasteners to maintain structural integrity and prevent the frame from shifting during the lift.

Step 3: Vinyl Top Placement While the frame is still low to the ground, pull your 30' x 60' vinyl top over the structure. Centering the top and securing it to the perimeter spreaders at this stage is the most efficient way to manage the large volume of fabric before the frame is raised.

Step 4: Raising the Frame With a coordinated crew, lift one 60-foot side of the frame and insert the 9-foot leg poles into the fittings. Repeat the process for the opposite side. Lifting in unison is mandatory to avoid putting undue stress on the aluminum joints across the long span.

Step 5: Secure Anchoring Structures of this size have a massive wind profile, significantly influenced by the 9-foot leg height. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Tension the straps evenly to ensure the structure remains stable, square, and professional in appearance against lateral forces.

Specifications

Compatibility and Inclusions

Note: This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 30' x 60' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 9-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• High-Capacity Event Dining: Provides a professional and protected area for massive wedding receptions and corporate banquets with enhanced airflow.
• Corporate Hospitality Suites: An ideal size for creating elite branded spaces at sporting events or large-scale festivals.
• Community Festival Hubs: Perfect for creating central protected zones for vendors, registration, or VIP guest services requiring extra clearance.
• Industrial Inventory Protection: A reliable solution for covering tall equipment or creating sheltered workspaces during maintenance.
