Product Description

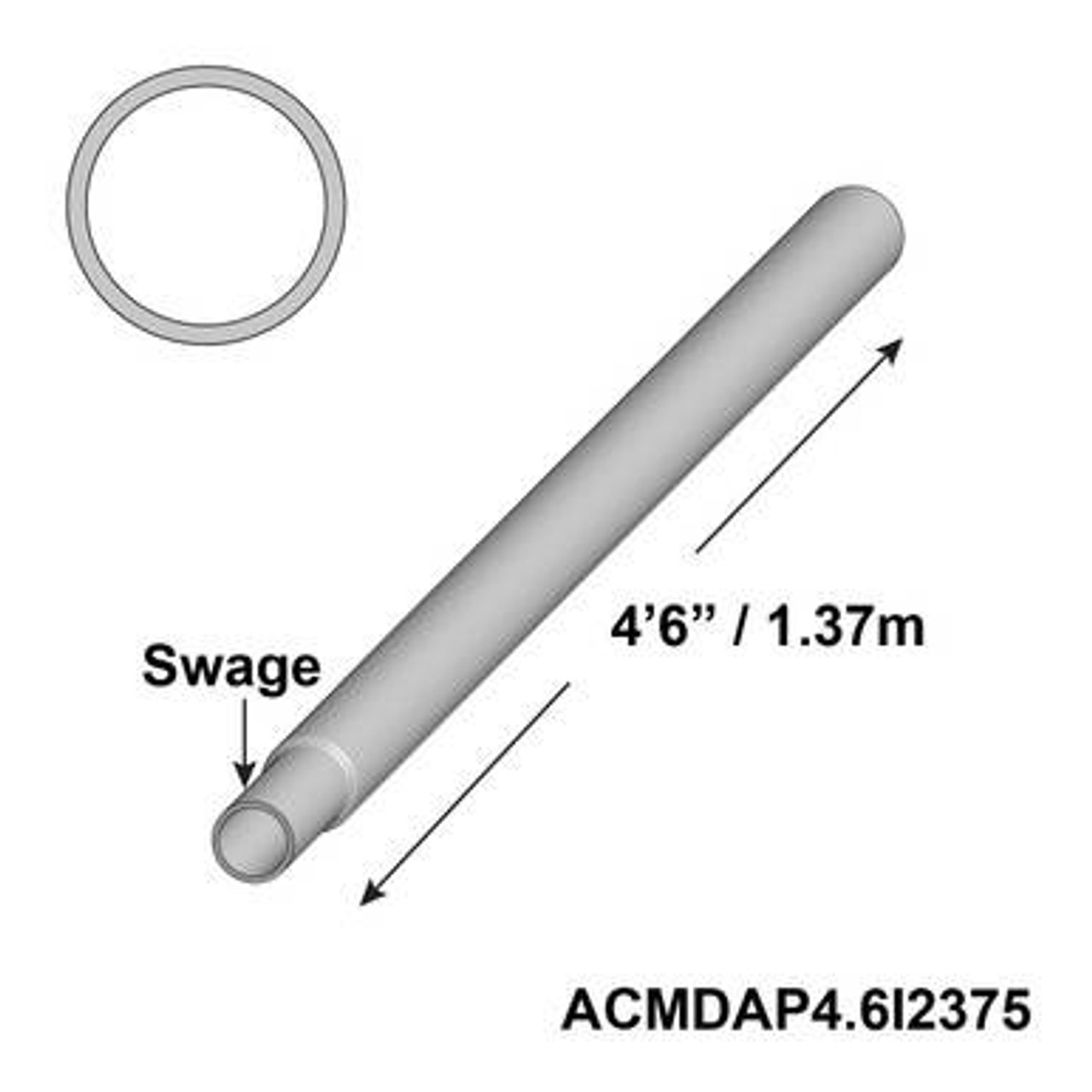

4' 6" Aluminum Insert w/6" swa
The 4' 6" (1.37 m) Medium Duty Aluminum Insert is used to expand the length of a sectional center pole. This insert is compatible with Celina Tent's 2 3/8" (60.33 mm) O.D. Center Poles. All inserts have a 6" (152.4 mm) swaged end that fits within the top piece, similar to the swage on the bottom piece. Having sectional, swaged poles eliminates the hassles and dangers associated with transporting long single-piece poles.
This piece is the center of a medium duty pole:
- Pole Top: 7' (2.13 m) - with 10" (254 mm) top pin
- Pole Insert: 4'6" (1.37 m) - with 6" (152.4 mm) swaged top
- Pole Bottom: 7' (2.13 m) - with 6" (152.4 mm) swaged top
- Total Height of Pole: 18'6" (5.64 m), 2 3/8" (60.33 mm) diameter
| Aluminum Pole Specifications | ||
| Outside Diameter | 2.375" | |
| Inside Diameter | 2.0625" | |
| Wall Thickness | 0.156" | |
| Weight | 1.2722 lbs/ft | |
| Strength | 35000 PSI | |
