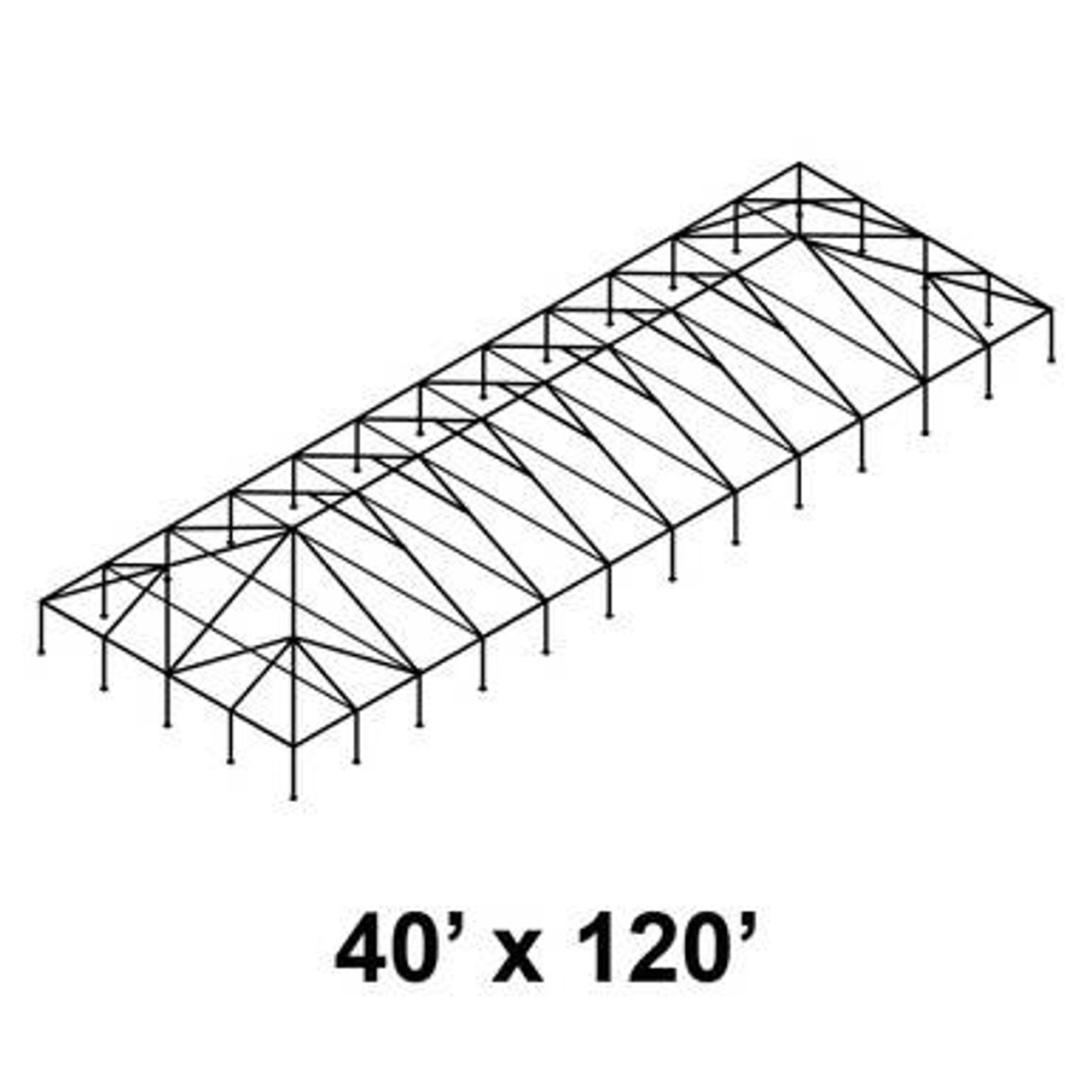

40' x 120' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

40' x 120' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

The 40' x 120' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is a large-scale frame tent system built for high-capacity event setups that require extended coverage, structural consistency, and efficient installation. With a 40-foot width and a 120-foot length, this frame tent kit delivers a substantial footprint for large weddings, corporate events, festivals, and long-span installations.

Constructed with aluminum single tube frame components and supported by 7' poles and matching fittings, this system is designed for durability and repeat use across rental fleets. It allows crews to create a continuous covered space without breaking the layout into multiple smaller tents, improving both workflow efficiency and overall event presentation.

Why This Frame Tent Kit Matters

As event size increases, maintaining alignment and efficiency across long spans becomes more challenging. This 40' x 120' frame tent system is designed to maintain consistent structural alignment across the entire length, helping crews avoid uneven tension and installation issues. By using a complete pole and fitting kit, teams can standardize their setup process, reduce labor time, and ensure reliable performance across repeated installs.

For rental companies, this long-span configuration reduces the need for multiple structures, simplifies logistics, and improves turnaround time between jobs. It also provides a more seamless guest experience with uninterrupted interior space.

Key Features

• Complete 40' x 120' frame tent kit for maximum coverage and large event layouts
• Constructed with aluminum single tube frame components for durability and manageable handling
• Includes 7' poles and required fittings for full frame assembly
• Extended 120-foot length supports continuous coverage without multiple tents
• Maintains consistent frame alignment across long-span installations
• Open interior design allows flexible layouts without center obstructions
• Supports modular tent installation and scalable configurations
• Designed for repeated setup and teardown in rental and event environments

How to Use and Install

1. Prepare the Installation Area

Ensure the site is level and large enough to accommodate the full 40' x 120' footprint. Clear any obstacles and plan anchoring points to support a smooth tent installation process.

2. Organize Frame Components

Lay out all aluminum frame sections, poles, and fittings in their approximate positions. Proper organization helps crews move efficiently and reduces setup errors.

3. Assemble the Frame Structure

Connect the single tube aluminum components using the provided fittings. Maintain proper alignment throughout the structure to ensure stability across the full 120-foot span.

4. Install 7' Poles

Position and secure the included 7' poles evenly throughout the structure. These poles provide vertical support and help maintain consistent height across the tent.

5. Raise and Anchor the Frame

Lift the assembled frame into position and secure it using appropriate staking or anchoring methods based on ground conditions. Proper anchoring is critical for safety and performance.

6. Complete Tent Setup

Install the tent top and apply proper tension across the structure. Even tensioning ensures a clean appearance and reliable performance throughout the event. Follow all standard safety practices during setup and teardown.

Specifications

• Size: 40' x 120'
• Frame Type: Aluminum single tube construction
• Pole Height: 7' poles included
• Included Components: Frame poles and fittings for full assembly
• Weight: 1,733.22 lbs
• SKU: KITCFAS04012007

Compatibility and Important Notes

• Designed for use with Classic Frame tent systems
• This kit functions as a complete frame system and requires a compatible tent top and anchoring equipment
• Supports modular expansion with compatible mid sections
• Proper staking or anchoring is required depending on installation surface
• Ensure all components are securely installed before use

Ideal For

• Large weddings, corporate events, and outdoor receptions
• Festival installations requiring extended continuous coverage
• Event rental companies scaling inventory for high-capacity setups
• Professional crews focused on efficient tent installation workflows
• Applications requiring long-span, modular frame tent systems
