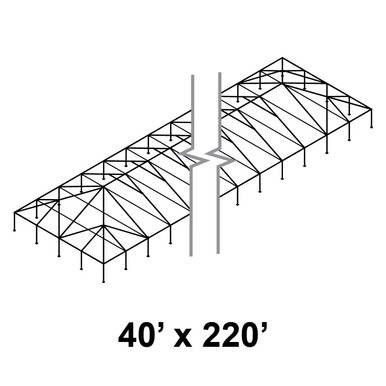

40' x 220' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

40' x 220' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

The 40' x 220' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is an extended-length frame tent system designed for maximum linear coverage and high-capacity event setups. With a full 40-foot by 220-foot footprint, this frame tent kit provides continuous coverage for large-scale installations where uninterrupted space is critical for layout efficiency and guest flow.

Built with aluminum single tube construction, this system is engineered for durability while remaining manageable for professional crews during transport, tent installation, and teardown. The included 7' poles and fittings are designed to work as a unified system, helping crews maintain alignment, structural integrity, and consistent performance across long-span builds. :contentReference[oaicite:0]{index=0}

Why This Frame Tent Kit Matters

When working with extreme tent lengths, maintaining consistent tension and alignment across the entire structure becomes essential. This 40' x 220' configuration allows crews to deploy a single continuous frame instead of combining multiple smaller tents, reducing connection points and improving overall setup efficiency.

For rental companies, this means faster installation, fewer complications during teardown, and a cleaner, more professional presentation. Long-span structures like this are especially valuable for events that require uninterrupted layouts, such as banquet seating, vendor corridors, and large-scale production setups.

Key Features

• Complete 40' x 220' frame tent kit designed for maximum linear coverage
• Constructed with aluminum single tube frame components for durability and easier handling
• Includes 7' poles and matching fittings for full frame assembly
• Engineered for consistent alignment across extended tent spans
• Supports modular tent installation and scalable event layouts
• Open interior design allows flexible floor planning without center obstructions
• Designed for repeat use in rental fleets and high-frequency installations
• Helps reduce labor time and improve efficiency during setup and teardown

How to Use and Install

1. Plan the Installation Area

Confirm the site can accommodate a 40-foot by 220-foot footprint. Ensure the ground surface is level and suitable for staking or anchoring before beginning tent installation.

2. Organize Frame Components

Lay out all aluminum frame sections, poles, and fittings in their approximate positions. Proper organization helps crews move efficiently and reduces delays during setup.

3. Assemble the Frame Structure

Connect the single tube aluminum components using the included fittings. Ensure each connection is secure and aligned correctly to maintain structural integrity across the full length of the tent.

4. Install 7' Poles

Position the 7' poles according to the layout. Even spacing and secure connections are essential for maintaining stability across the extended structure.

5. Raise and Secure the Frame

Lift the assembled structure into position and secure it using appropriate staking or anchoring methods based on site conditions. Proper anchoring is critical for long-span performance and safety.

6. Complete Tent Setup and Tensioning

Once the frame is secured, proceed with installing the tent top and applying proper tension. Consistent tension ensures a clean appearance and supports durability throughout the event.

Specifications

• Size: 40' x 220'
• Frame Type: Aluminum single tube construction
• Pole Height: 7' poles included
• Included Components: Frame poles and fittings for full assembly
• Weight: 2,937.02 lbs
• SKU: KITCFAS04022007

Compatibility and Important Notes

• Designed for use with Classic Frame tent systems
• Compatible with modular mid sections for extended configurations
• This product is a frame kit only and does not include tent tops or anchoring equipment
• Requires proper staking or anchoring depending on installation surface
• Follow standard tent installation and safety procedures during setup and teardown

Ideal For

• Event rental companies managing large-scale, long-span installations
• Festivals, exhibitions, and extended vendor layouts
• Corporate events and high-capacity outdoor gatherings
• Weddings requiring continuous coverage across large guest areas
• Professional crews focused on efficient, repeatable tent installation workflows
