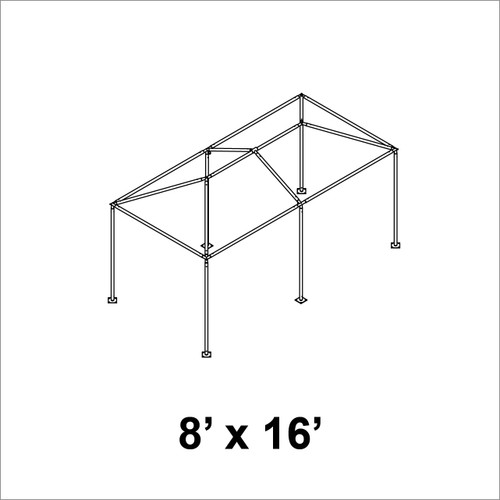

8' x 16' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

8' x 16' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit

The 8' x 16' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is a professional-grade structural solution designed for high-utility, small-to-medium footprint applications. Providing 128 square feet of covered space, this kit is an essential asset for any rental company requiring durable booths for larger ticket sales stations, extended valet points, or security checkpoints. By utilizing high-strength single-tube aluminum construction, the frame offers a rigid, commercial alternative to lightweight consumer pop-up tents. The traditional 7-foot leg height ensures a comfortable eave height for staff and guests while maintaining a compact profile that is easy to integrate into crowded event layouts.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, the components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and fleet management. The aluminum tubing provides an excellent strength-to-weight ratio, making it easy for a small crew to handle while ensuring the structure remains stable under tension. Whether you are expanding your inventory for a busy festival season or performing a tent installation for a corporate entry point, this kit delivers the professional performance required for frequent field use.

Why the 16-Foot Single Tube System Matters

In the event industry, the 16-foot length offers a versatile "middle-ground" size that provides extra workspace without requiring the footprint of a full-sized square tent. The 8' x 16' Classic Frame Aluminum Single Tube 7' Pole and Fitting Kit is engineered to withstand the rigors of professional use, providing a level of structural integrity that keeps the frame square and secure. For a professional event setup, this translates to a clean, professional appearance that inspires confidence. The modular nature of the West Coast Style frame also allows for efficient teardown and organized storage, making it a high-utility asset for any rental fleet or corporate event inventory.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing for a lightweight yet rigid structural frame.
• 7-Foot Eave Height: Standard leg height provides a professional profile and comfortable interior clearance.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns, side tees, and corners manufactured from zinc-plated steel for maximum durability.
• Versatile 128 Sq. Ft. Footprint: Specifically designed for larger kiosks, double-vendor booths, and restricted-access service areas.
• Corrosion-Resistant Materials: Anodized aluminum and plated steel components are built to resist oxidation through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling an 8' x 16' frame is a fast and straightforward process, typically requiring only two people for a safe tent installation.

Step 1: Inventory and Site Layout

Clear the installation area and lay out all rafters, spreaders, and 7-foot legs on a protective drop cloth. Organize the components to ensure all R-pins and fittings are present before beginning the event setup.

Step 2: Roof Frame Assembly

Assemble the roof framework at ground level by connecting the crowns to the rafters and the perimeter spreaders. Ensure every fitting is secured with R-pins or pin-and-bail fasteners to maintain structural integrity.

Step 3: Vinyl Top Placement

While the frame is still low to the ground, pull your 8' x 16' vinyl top over the structure. Centering and securing the top to the perimeter spreaders at this stage is the safest method to manage the fabric before the frame is lifted.

Step 4: Raising the Frame

Lift one 16-foot side of the frame and insert the 7-foot leg poles into the fittings. Repeat the process for the opposite side. Ensure all legs are seated properly in the base plates and that the frame is level.

Step 5: Anchoring

Even small-to-medium structures require secure anchoring to prevent movement. Use stake driving equipment to secure the base of each leg and attach heavy-duty ratchet straps. Tension the straps evenly to ensure the structure remains stable and the fabric top is tight.

Specifications

• Width: 8 ft (2.4m)
• Length: 16 ft (4.9m)
• Total Area: 128 sq. ft. (11.9 sq. m)
• Leg Height: 7 ft (2.1m)
• Peak Height: 9.5 ft (2.9m)
• Frame Material: 2" Anodized Aluminum Single Tube
• Fitting Material: Zinc-Plated Welded Steel
• Longest Pipe Component: 7 ft 8 in (2.3m)
• Approximate Frame Weight: 105 lbs (47.6 kg)
• Compatibility: Standard West Coast Style Frame Systems

Compatibility and Inclusions

This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 8' x 16' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 7-foot aluminum legs, and all required steel fittings (corners, side tees, and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• Multi-Person Kiosks: A professional-grade booth for double-window ticket sales or information centers.
• Valet & Hospitality Stations: Provides a durable, weather-protected shelter for staff and equipment at high-traffic entry points.
• Extended Vendor Booths: Ideal for specialized concessions or larger product displays at festivals and community fairs.
• Equipment Covers: A reliable solution for covering localized equipment rows or monitoring stations during maintenance.
