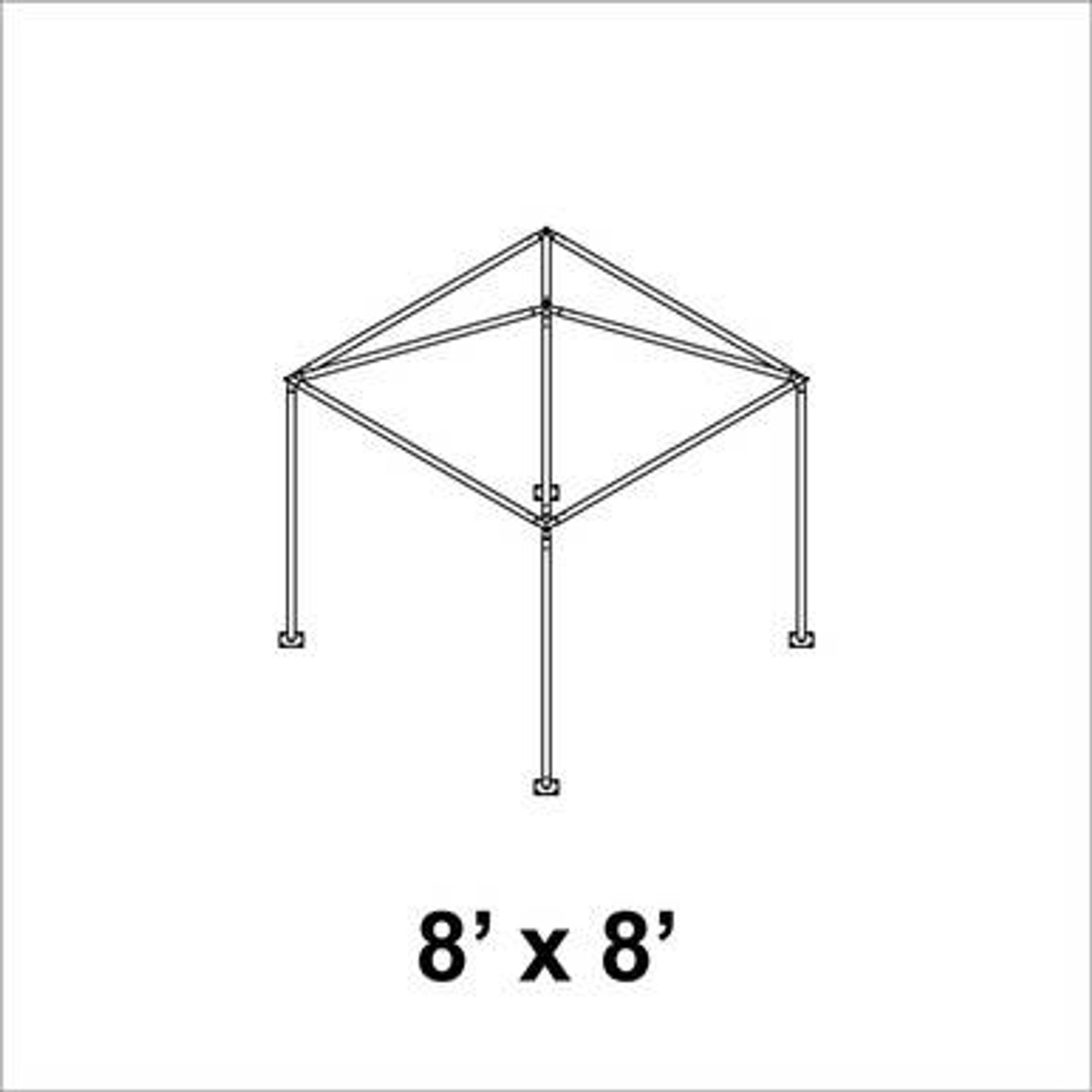

8' x 8' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit

8' x 8' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit

The 8' x 8' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit is a highly specialized structural solution designed for applications requiring extreme vertical clearance within a compact footprint. Providing 64 square feet of covered area, this kit is the professional choice for a rental company tasked with creating high-visibility signage hubs, elevated camera platforms, or weather-protected covers for tall industrial equipment. By utilizing high-strength single-tube aluminum construction, the frame remains lightweight and easy to transport, while the extraordinary 12-foot leg height creates a dramatic, towering profile that stands out in any event environment.

This kit serves as a comprehensive hardware foundation for a West Coast Style frame system. Because it adheres to industry-standard dimensions, the components are fully interchangeable with existing West Coast inventories, allowing for simplified maintenance and modular flexibility. The 12-foot height makes it ideal for specialized tent installation projects where standard 7-foot or 8-foot legs would obstruct views or interfere with tall machinery. Whether you are providing a high-profile entry marker for a festival or an industrial cover for a localized maintenance project, this single-tube kit offers professional-grade durability with an impressive vertical reach.

Why the 12-Foot Single Tube System Matters

In complex event and industrial layouts, height is often a functional necessity. The 8' x 8' Classic Frame Aluminum Single Tube 12' Pole and Fitting Kit uses 12-foot legs to provide massive overhead clearance, allowing the structure to sit above the heads of a crowd or clear tall obstacles. For a professional event setup, this added height is perfect for suspending large speakers, heavy lighting rigs, or expansive promotional banners. The modular nature of the single-tube aluminum allows for a fast teardown despite the unusual height, making it a versatile asset for specialized logistics and production teams.

Key Features

• High-Strength Single Tube Aluminum: 2-inch diameter anodized aluminum tubing provides a high strength-to-weight ratio for manageable assembly.
• Extreme 12-Foot Eave Height: Specialized leg length provides maximum vertical clearance and high-impact visibility.
• West Coast Style Compatibility: Fully interchangeable with standard West Coast Style poles, fittings, and vinyl tops.
• Heavy-Duty Welded Steel Fittings: Includes all necessary crowns and corners manufactured from zinc-plated steel to resist corrosion and structural stress.
• Compact 64 Sq. Ft. Footprint: Designed for high-profile kiosks, equipment covers, and specialized production towers.
• Durable Anodized Finish: Aluminum components are treated to maintain a professional appearance through years of outdoor exposure.

How to Use / Installation Best Practices

Assembling a 12-foot-high frame requires extra caution and a coordinated team to ensure a safe tent installation due to the increased center of gravity.

Step 1: Inventory and Site Layout

Clear the installation area and lay out all rafters, spreaders, and 12-foot legs on a protective drop cloth. Because of the extreme height, verify that the ground is perfectly level to ensure structural stability during the event setup.

Step 2: Roof Frame Assembly

Assemble the roof framework at ground level by connecting the center crown to the rafters and perimeter spreaders. Ensure every fitting is secured with R-pins or pin-and-bail fasteners. Double-check all joints, as the 12-foot legs will put more leverage on the roof connections.

Step 3: Vinyl Top Placement

While the frame is still at ground level, pull your 8' x 8' vinyl top over the structure. Centering and securing the top to the perimeter spreaders at this stage is mandatory, as the 12-foot height makes it impossible to adjust the fabric once the legs are raised.

Step 4: Raising the Frame

This step requires a crew of at least four people. Lift one side of the frame high enough to insert two 12-foot leg poles into the fittings. While two people steady the first side, the others should lift the opposite side to insert the remaining legs. Use caution to prevent the legs from kicking out during the lift.

Step 5: Critical Anchoring

With 12-foot legs, the structure is highly susceptible to wind. Immediate stake driving and anchoring with heavy-duty ratchet straps at every leg is required. Use a "double-down" anchoring method if possible, with straps pulling in opposite directions to ensure the tower remains plumb and secure.

Specifications

• Width: 8 ft (2.4m)
• Length: 8 ft (2.4m)
• Total Area: 64 sq. ft. (5.9 sq. m)
• Leg Height: 12 ft (3.6m)
• Peak Height: 14.5 ft (4.4m)
• Frame Material: 2" Anodized Aluminum Single Tube
• Fitting Material: Zinc-Plated Welded Steel
• Longest Pipe Component: 12 ft (3.6m)
• Approximate Frame Weight: 88 lbs (39.9 kg)
• Compatibility: Standard West Coast Style Frame Systems

Compatibility and Inclusions

This product is a Pole and Fitting Kit ONLY. It is designed for those who already have a compatible 8' x 8' vinyl top and anchoring hardware.

• Included: All aluminum rafters and spreaders, 12-foot aluminum legs, and all required steel fittings (corners and crowns).
• NOT Included: Vinyl tent top, anchoring stakes, ratchet straps, and base plates.
• Interchangeability: These parts meet West Coast Style standards and are compatible with most major brands using the same engineering specs.

Ideal for / Best Uses

• High-Visibility Markers: Perfect for creating "Information" or "Entrance" towers that can be seen over large crowds.
• Camera & Production Platforms: Provides a weather-protected, elevated position for film crews or event photographers.
• Tall Equipment Covers: Ideal for protecting vertical machinery, control panels, or specialized industrial monitors.
• Speaker & Lighting Towers: A durable, high-clearance solution for suspending heavy AV equipment during maintenance or live performances.
