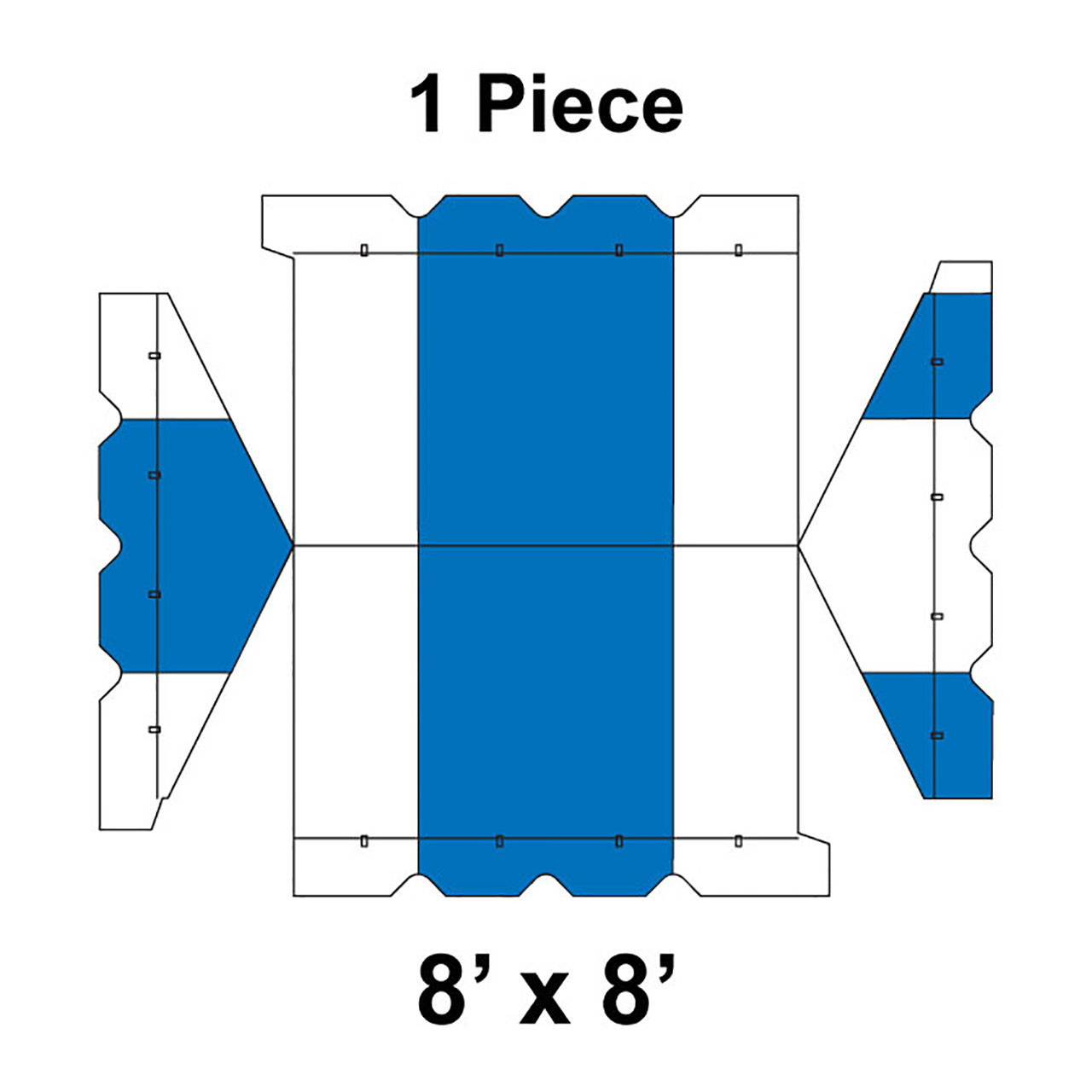

8' x 8' Gable Frame Tent, 1 Piece, 16 oz. Ratchet Top, White and Blue

8' x 8' Gable Frame Tent 1 Piece 16 oz Ratchet Top White and Blue

The 8' x 8' Gable Frame Tent 1 Piece 16 oz Ratchet Top White and Blue is a compact, professional-grade tent top designed for Classic Series gable frame tent systems. Built for event rental companies and installation crews, this one-piece tent top provides a durable, high-visibility solution for small-scale event setups, entrances, and walkway coverage.

Constructed from 16 oz blockout vinyl, this tent top is engineered for repeated use in demanding environments where reliability and appearance matter. The white and blue color combination delivers a clean, bold look that stands out in both corporate and casual event settings. Designed with a ratchet tensioning system, this top ensures a tight, secure fit across the frame, helping maintain a smooth and professional finish during every tent installation.

Why This Gable Frame Tent Top Matters

Gable frame tent designs provide a functional advantage over standard frame tent tops, especially in applications where entry points or connections between structures are required. The gable ends help direct water runoff away from openings, improving usability in outdoor environments and reducing water accumulation near entry areas.

The one-piece design simplifies setup by eliminating the need for multiple sections or lace connections. This reduces installation time and minimizes alignment issues, allowing crews to work more efficiently. Combined with the ratchet system, this ensures even tension across the tent surface, improving both performance and appearance.

Key Features

• Designed for 8' x 8' Classic Series gable frame tent systems
• One-piece tent top allows faster setup and reduced installation complexity
• Constructed from 16 oz blockout vinyl for durability and weather resistance
• Ratchet tension system ensures tight, even surface tension
• White and blue color pattern provides a clean and professional appearance
• Gable end design improves water runoff at entry points
• Supports efficient tent installation and streamlined teardown workflows
• Built for repeated use in rental and event environments

How to Use and Install

1. Position the Tent Top

Lay the one-piece gable tent top over the 8' x 8' frame structure. Ensure the top is centered and properly aligned with the frame before securing connections.

2. Align Gable Ends

Position the gable ends according to the layout of the event space. Proper alignment ensures effective water runoff and a clean presentation.

3. Attach Ratchet Straps

Secure the ratchet straps to the base plates or anchor points. Feed each strap through the ratchet assemblies and prepare for tensioning.

4. Apply Even Tension

Tighten each ratchet gradually and evenly around the tent. This helps achieve a smooth, wrinkle-free surface and consistent load distribution.

5. Anchor the Structure

Complete the installation by anchoring the tent securely using appropriate stake driving or weighted systems based on site conditions.

Specifications

• Size: 8' x 8'
• Coverage Area: 64 sq ft
• Compatibility: Classic Series gable frame tent systems
• Material: 16 oz blockout vinyl
• Color: White and blue
• Top Style: Ratchet tension system
• Design: One-piece gable tent top
• Weight: 26.06 lbs
• SKU: 008008GF1A5053

Compatibility and Important Notes

• This is a tent top only, not a complete tent
• Requires a compatible 8' x 8' gable frame system
• Frame, poles, and anchoring equipment are not included
• Designed specifically for gable-style frame configurations
• Ensure proper anchoring during installation for safety and stability

Ideal For

• Event rental companies offering compact gable tent solutions
• Walkways, entrances, and connecting structures
• Vendor booths and promotional setups
• Corporate events requiring branded or color-coordinated tents
• Install crews focused on efficient and repeatable workflows
