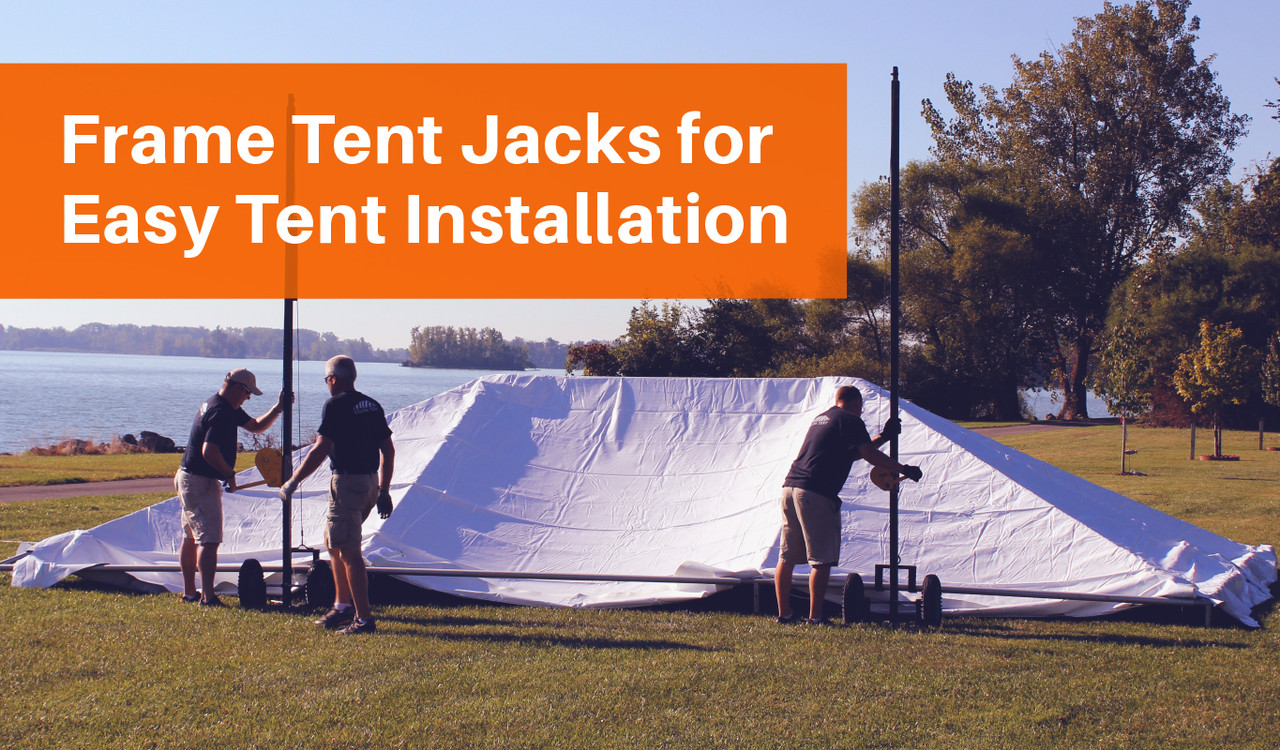

Frame Tent Jacks for Easy Tent Installation
Feb 24th 2025
When it comes to setting up large frame tents, the process can be physically demanding, even for the strongest individuals. While some installers might possess the strength to lift heavy tent frames, the reality is that repeatedly lifting and stabilizing these frames during installations can be exhausting and even risky. This is where Frame Tent Jacks come into play. These essential tools make the installation of frame tents more efficient, safer, and significantly less strenuous for installers.
What Are Frame Tent Jacks?
Frame Tent Jacks are specialized lifting devices designed to assist in raising the frame of a tent during installation. Once the top portion of the frame tent is assembled and the fabric is properly positioned, the next step is to lift the entire frame to attach the legs. Since tent frames can be extremely heavy, attempting to lift them manually can be difficult and unsafe. Frame Tent Jacks provide a controlled lifting mechanism that makes this process smoother and reduces the risk of damage to the tent frame or injury to the installers.
How Do Frame Tent Jacks Work?
Frame Tent Jacks are strategically placed at fitting locations on the tent’s perimeter tubing. These fittings are where various sections of the tent frame are connected, making them the ideal points for applying lifting force. Here’s how the process works:
-
Positioning the Jack – The hook portion of the Frame Tent Jack is secured under the perimeter tubing, right next to a fitting. This ensures stability and distributes the lifting force evenly.
-
Lifting the Tent – The winch mechanism on the jack is turned, gradually raising the frame to the desired height.
-
Attaching the Legs – Once the frame has been elevated sufficiently, the leg tubing is inserted into the fittings adjacent to the jack’s hook.
-
Lowering and Moving the Jack – After all the designated leg sections are installed, the jacks are lowered and wheeled away, allowing the remaining legs to be connected easily.
By using Frame Tent Jacks, the entire lifting process is controlled, reducing strain on installers and preventing potential damage to the tent structure.
Why Should You Use Frame Tent Jacks?
There are several advantages to using Frame Tent Jacks when setting up large tents. These include:
-
Enhanced Safety – Manually lifting heavy tent frames can lead to strain injuries or even accidents if a frame slips or collapses. Using Frame Tent Jacks ensures a controlled, steady lift, minimizing these risks.
-
Increased Efficiency – With the assistance of jacks, installation times are significantly reduced, allowing tent crews to set up structures more quickly and move on to the next task.
-
Prevention of Frame Damage – Lifting a tent frame unevenly or from the wrong location can cause bending or warping of the tubing. Frame Tent Jacks distribute the weight evenly, preserving the integrity of the frame.
-
Reduced Labor Requirements – Instead of requiring a large crew to lift a tent manually, Frame Tent Jacks enable smaller teams to handle installations with ease.
How Many Frame Tent Jacks Do You Need?
The number of Frame Tent Jacks required depends on the size of the tent being installed. Here are some general guidelines:
-
Small Tents (8’ to 10’ Wide) – These tents may not require jacks, as they can often be lifted manually by a few people.
-
Medium-Sized Tents – Tents wider than 10’ and up to around 30’ typically require at least two jacks, positioned at either end.
-
Large Tents (40’ or Longer) – A general rule is to use one Frame Tent Jack for every 20 feet of tent length. This ensures even weight distribution and a stable lift.
For particularly heavy or oversized tents, additional jacks may be needed to prevent excessive stress on any one section of the frame.
Choosing the Right Frame Tent Jack
Not all Frame Tent Jacks are created equal, and selecting the right one for your needs is crucial. When choosing a tent jack, consider the following factors:
-
Weight Capacity – Ensure the jack is rated to handle the weight of your tent frame.
-
Height Range – Check that the jack can lift the frame high enough for easy leg installation.
-
Stability and Durability – Look for jacks made from high-quality materials that offer stable support throughout the lifting process.
-
Portability – Wheeled bases make it easier to move the jacks between installation points.
CELINA offers high-quality Frame Tent Jacks designed specifically for tent installation, ensuring reliability and ease of use.
Best Practices for Using Frame Tent Jacks
To get the most out of your Frame Tent Jacks, follow these best practices:
-
Always Position Jacks at Fittings – This provides the most stable lifting points and prevents damage to the tubing.
-
Lift Evenly – If using multiple jacks, raise the tent in unison to avoid putting undue stress on the frame.
-
Secure the Tent Before Removing Jacks – Ensure all leg sections are in place before lowering the jacks and moving them away.
-
Inspect Jacks Regularly – Check winch mechanisms and other components for wear and tear to maintain safety and performance.
Conclusion
Frame Tent Jacks are indispensable tools for anyone involved in tent installations. By using these jacks, you can improve safety, efficiency, and ease of setup, making tent installations a smoother process. Whether you are a tent rental company, an event planner, or part of a setup crew, investing in high-quality Frame Tent Jacks will pay off in terms of time saved, reduced labor needs, and better overall installations.
For more tips, tricks, and equipment recommendations for tent installations, visit our Product Support Center or contact us at 844-801-9588 or Sales@GetTent.com. Let CELINA help make your next tent setup a breeze!
