Pinnacle Rail Curtain Clamp

Pinnacle Rail Curtain Clamp for Secure Rail Curtain Installation

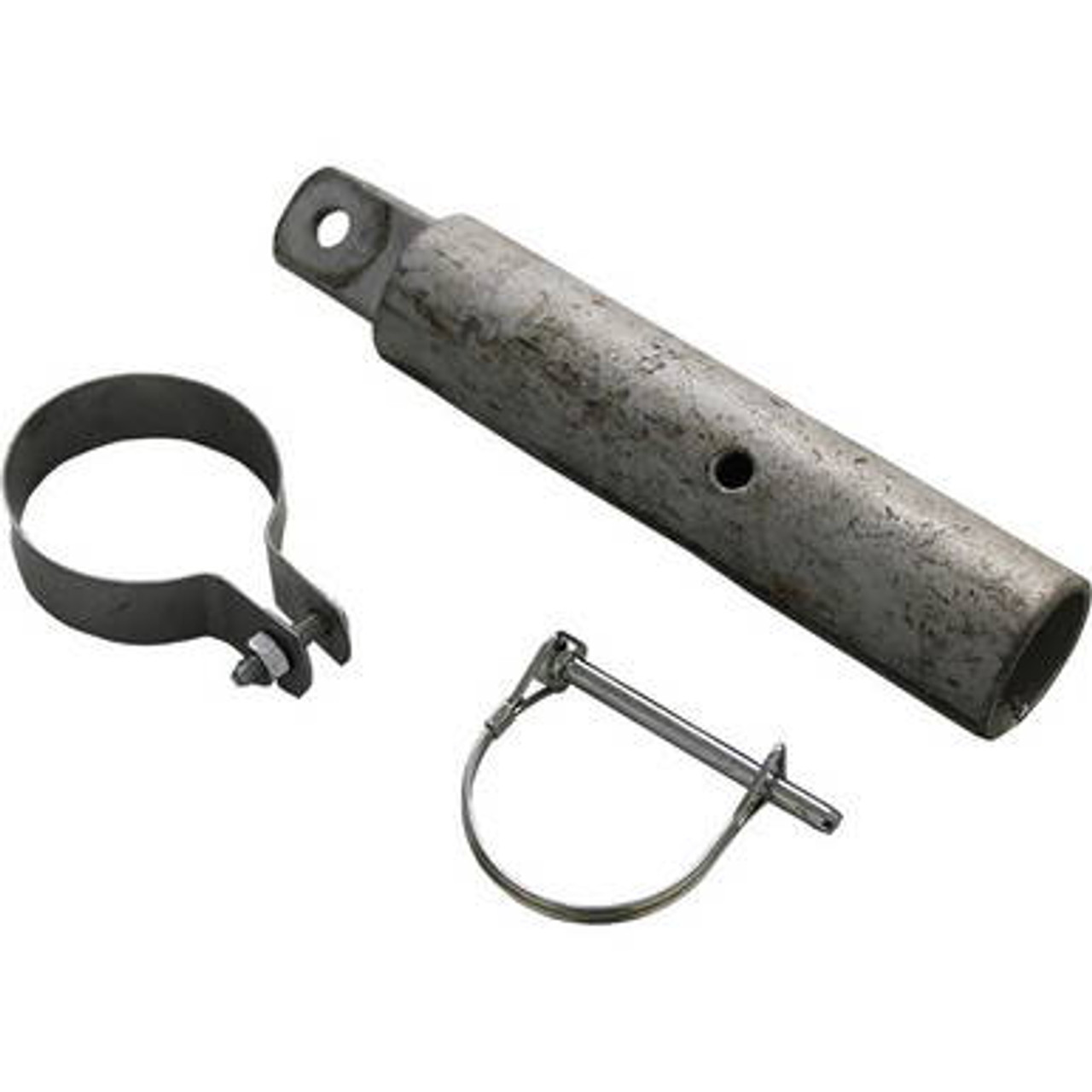

The Pinnacle Rail Curtain Clamp is a dedicated hardware component designed to secure rail curtain poles to the leg tubing of a Pinnacle Series tent. Used in combination with the Pinnacle Rail Curtain Fitting, this clamp ensures a stable and properly aligned attachment point for professional rail curtain installations.

The clamp wraps firmly around the tent leg and is fastened both to the leg tubing and the rail curtain fitting using the integrated bolt-and-nut connection. This creates a secure, load-stable connection suitable for repeated event setups.

Purpose and Function

Rail curtains are commonly used to divide interior tent spaces, create controlled access zones, or improve the overall layout and flow within large structures. The Pinnacle Rail Curtain Clamp plays a critical role by anchoring one end of the rail curtain pole to the tent leg, maintaining proper tension and alignment throughout the event.

Because each rail curtain requires two support tubes, four Pinnacle Rail Curtain Clamps are required per curtain to complete a full installation.

Key Features

• Designed specifically for Pinnacle Series tent legs
• Wrap-around clamp design for secure attachment to leg tubing
• Connects directly to the rail curtain fitting using bolt and nut
• Supports stable and aligned rail curtain installations
• Durable construction for repeated professional use

Installation Notes

• Used with Pinnacle Rail Curtain Fittings
• Each rail curtain requires two support tubes
• Four clamps are required per curtain installation

Common Applications

• Interior space division within Pinnacle tents
• Back-of-house or staff-only area separation
• Controlled access zones at large events
• Professional tent layouts requiring rail curtains

Specifications

• Clamp Diameter: 2.75" (6.99 cm)
• Weight: 0.23 lbs (0.10 kg)
• Bolt Length: 1" (2.54 cm)
• Bolt Diameter: 3/16" (0.48 cm)

What Is Included

• One Pinnacle Rail Curtain Clamp

The Pinnacle Rail Curtain Clamp is an essential component for clean, secure, and professional rail curtain installations. When used correctly with the proper fittings and support tubes, it helps maintain curtain stability and improves the overall functionality of Pinnacle tent interiors.
