1'' x 84'' Strap Top

1'' x 84'' Ratchet Assembly Top for Master Series & Pinnacle Series Tents

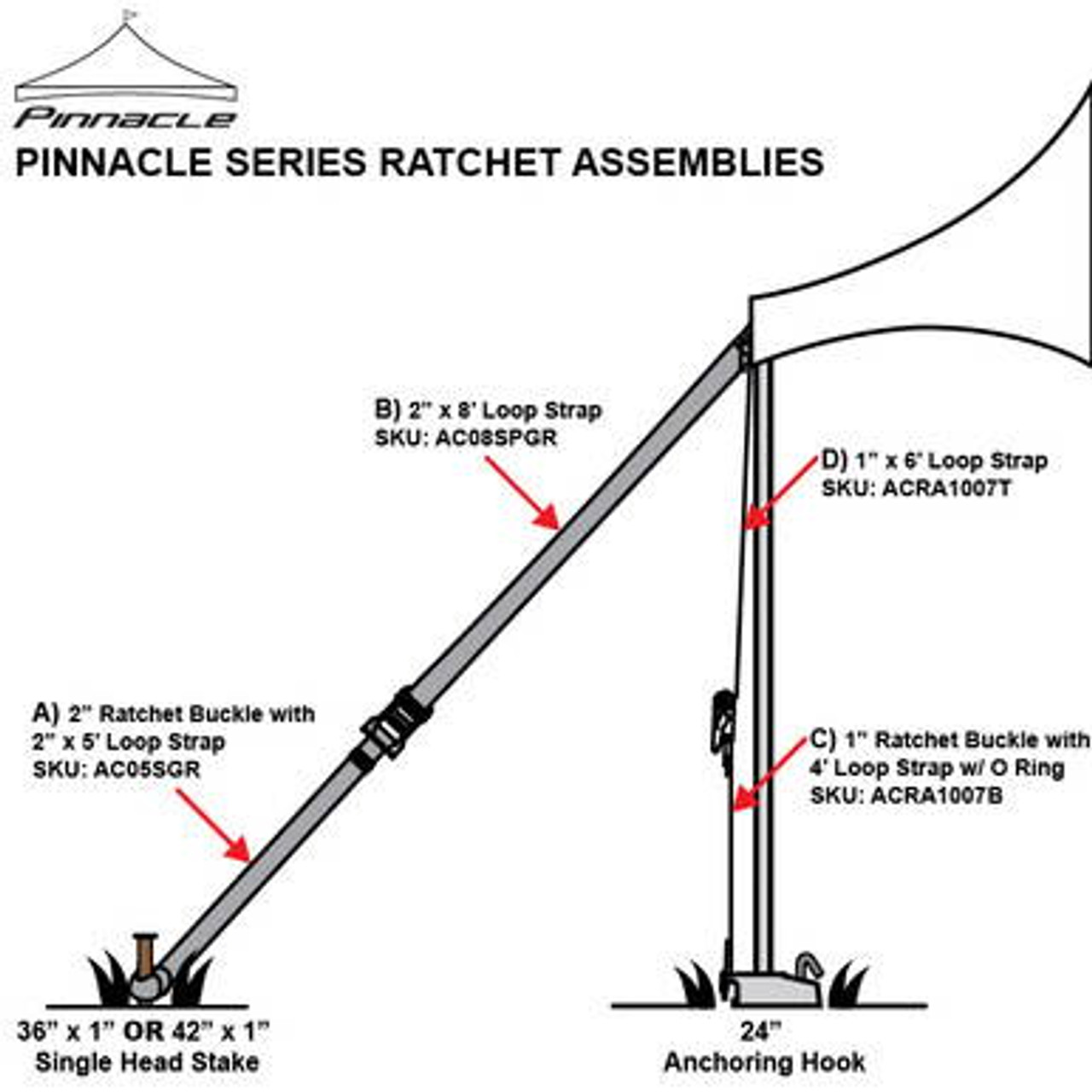

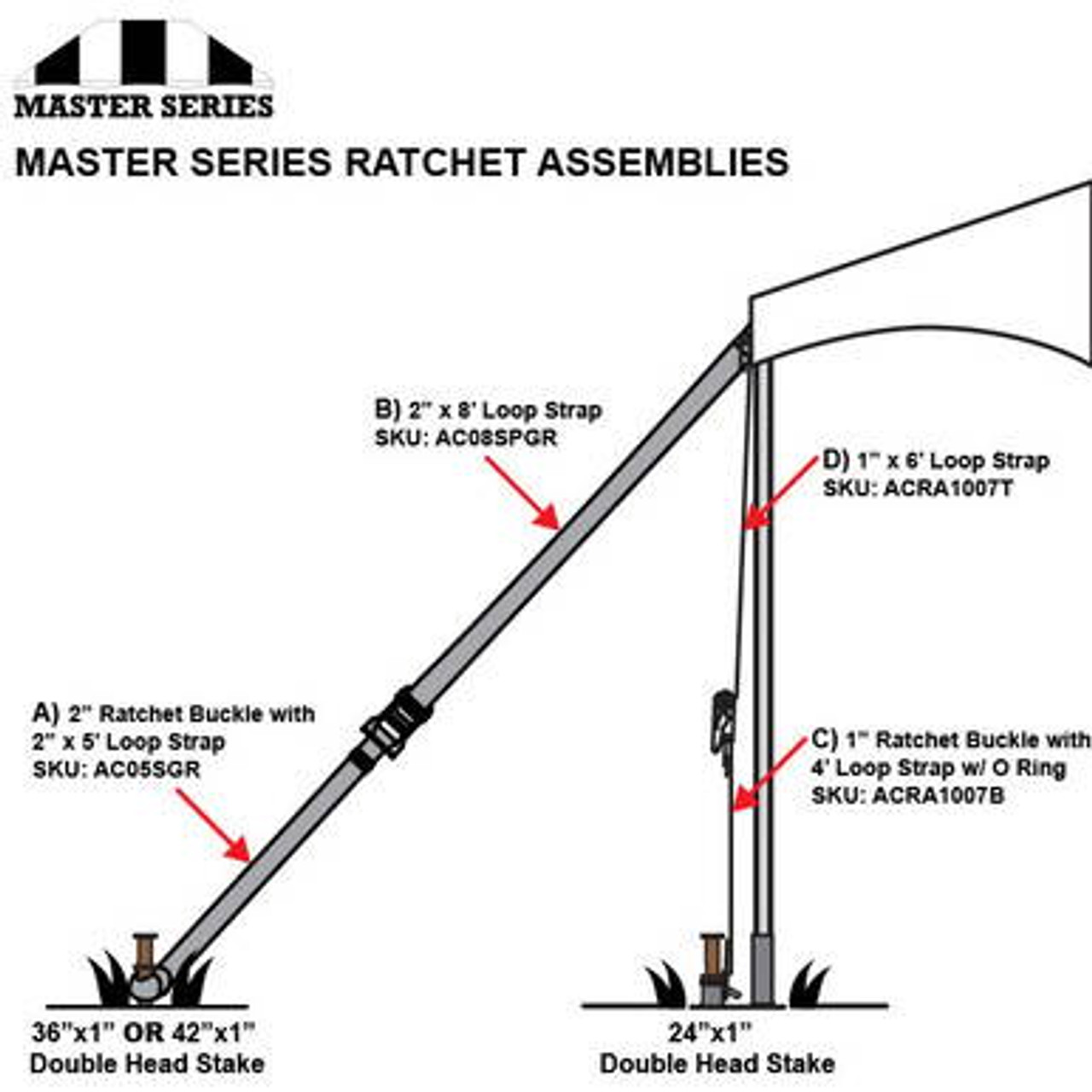

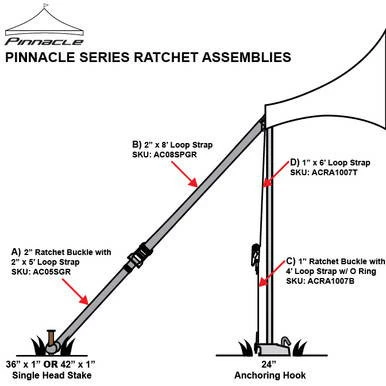

The 1'' x 84'' Ratchet Assembly Top is a core anchoring component used with Master Series Frame Tents and Pinnacle Series Cross Cable Tents. This strap functions as the top portion of a two-piece ratchet assembly, working in conjunction with a ratchet bottom to securely fasten the tent top to base plates.

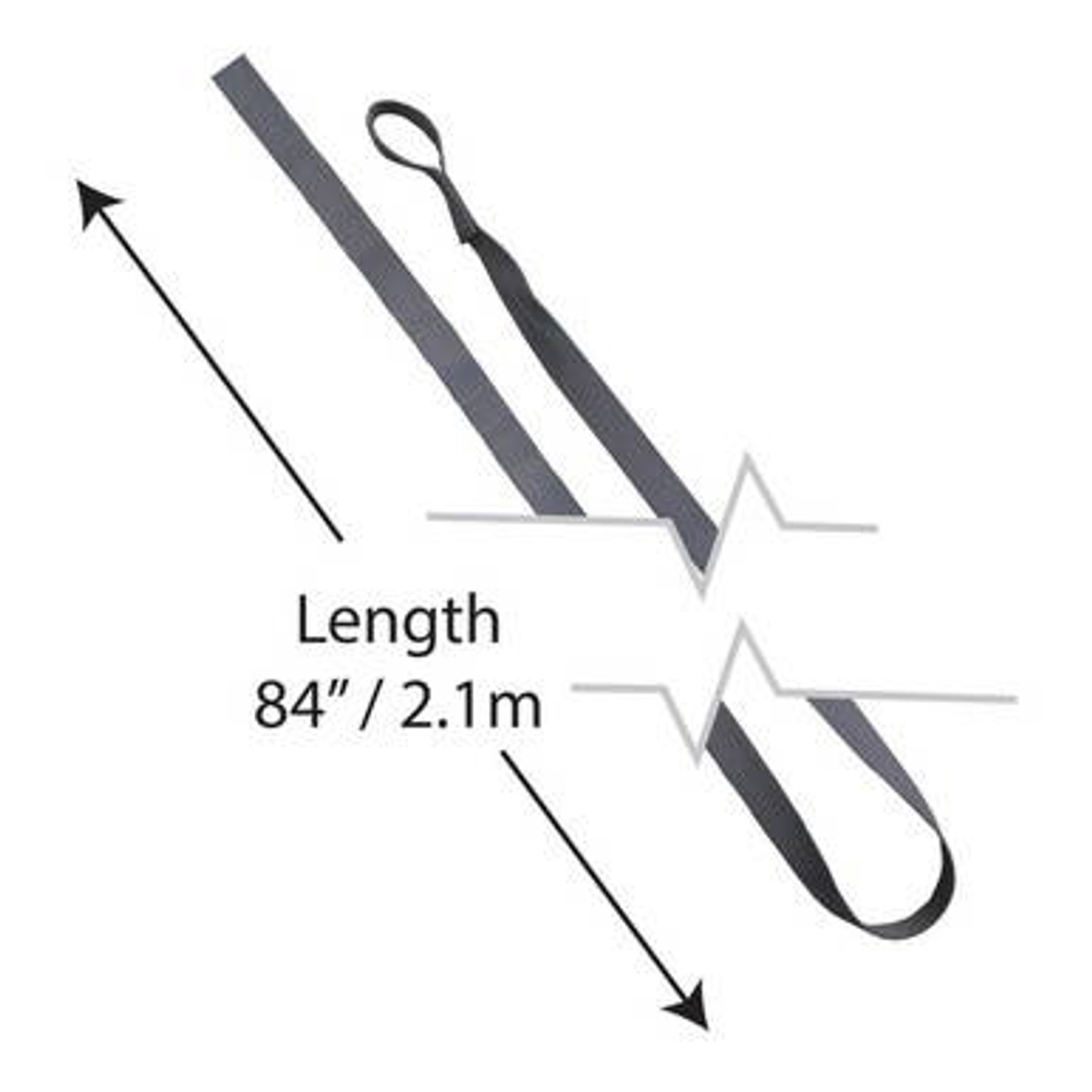

Manufactured from first-run, automotive-quality gray seat belt webbing, this strap features an 8'' sewn loop on one end and a plain strap on the other. The looped end attaches directly to the tent top, while the plain end feeds into the ratchet mechanism on the bottom assembly for controlled tensioning.

Purpose and Application

Proper anchoring is essential for maintaining tent stability and alignment. The 1'' x 84'' Ratchet Assembly Top is designed to transfer tension from the ratchet bottom up to the tent top, allowing installers to evenly secure the structure to its base plates.

This component is specifically sized for Master Series and Pinnacle Series systems, ensuring correct geometry, clean installations, and reliable performance in professional event environments.

Key Features

• Designed for Master Series Frame Tents and Pinnacle Series Cross Cable Tents
• Functions as the top portion of a two-piece ratchet assembly
• 8'' sewn loop for secure attachment to the tent top
• Plain strap end feeds directly into ratchet bottom assembly
• First-run automotive-quality seat belt webbing
• High load rating for professional anchoring applications

Specifications

• Strap Width: 1'' (25.4 mm)
• Overall Length: 84'' (2,133.6 mm)
• Loop Length: 8'' (203.2 mm)
• Load Rating: 4,000 lbs (1,814.37 kg)
• Weight: 0.15 lbs (0.07 kg)
• Material: Gray automotive-grade seat belt webbing

How It Is Used

Step 1: Attach to Tent Top

Feed the plain end of the strap through the rings sewn into the tent top, then pass it back through the 8'' sewn loop to secure it in place.

Step 2: Connect to Ratchet Bottom

Insert the plain end of the strap into the ratchet mechanism on the bottom portion of the assembly.

Step 3: Apply Tension

Operate the ratchet bottom to draw the tent top down evenly and secure it to the base plate.

Step 4: Final Check

Verify even tension across all anchoring points before completing the installation.

Ideal For

• Master Series Frame Tent installations
• Pinnacle Series Cross Cable Tent systems
• Professional tent rental inventories
• Installations requiring precise base plate anchoring

Compatibility Notes

• Designed to be used with a compatible 1'' ratchet assembly bottom
• Not intended for standalone anchoring use
• Purpose-built for CELINA Master and Pinnacle Series tent systems

What Is Included

• One 1'' x 84'' Ratchet Assembly Top with 8'' sewn loop

The 1'' x 84'' Ratchet Assembly Top is an essential component for properly anchoring Master Series and Pinnacle Series tents. Its durable construction, precise sizing, and system-specific design ensure secure, professional-grade installations every time.
