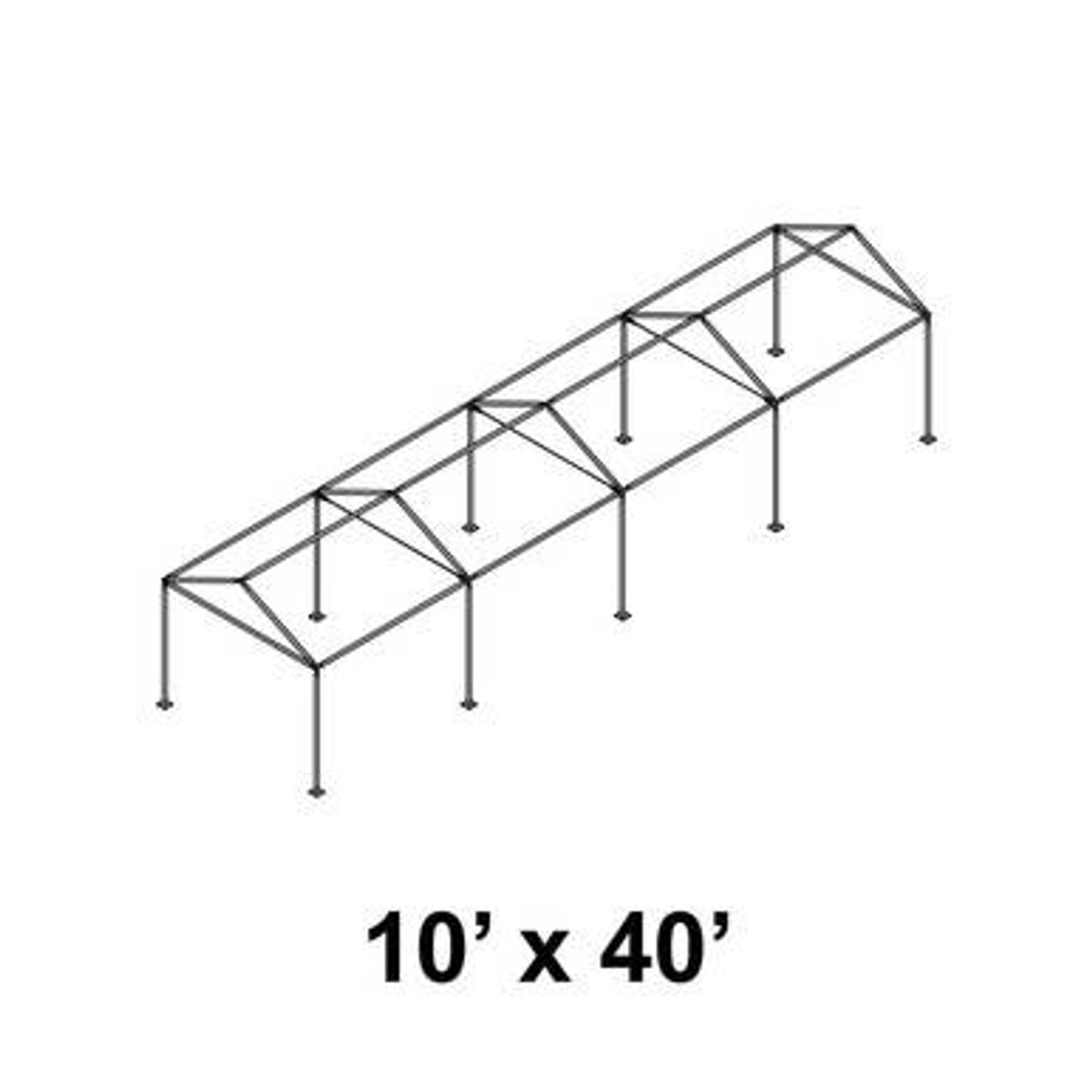

10' x 40' Gable Series Frame

10' x 40' Gable Series Frame

The 10' x 40' Gable Series Frame is a specialized commercial-grade hardware system designed to create a distinct, elongated "house-style" architectural profile. For rental companies and event planners, this frame is the essential structural skeleton required to support a 400-square-foot gable-ended canopy. Unlike traditional hip-roof frames that slope on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a seamless connection to existing buildings. This kit includes all the necessary aluminum rafters, spreaders, and heavy-duty steel fittings required to maintain a rigid 40-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the entire 40-foot length. Because this is a frame-supported system, it does not require center poles, maximizing the 400 square feet of usable space for long banquet tables, narrow vendor rows, or sheltered walkways. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and rental operations.

Why the 10' x 40' Gable Series Frame Matters

The 10' x 40' Gable Series Frame matters because it offers a unique functional and visual alternative to the standard "pyramid" look of traditional event tents. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the elongated 10-foot width is ideal for narrow spaces such as sidewalks, alleyways, or patio extensions where a wider tent would not fit. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for specialized events.

Key Features

• Clear-Span Elongated Design: Provides a completely open 10' x 40' interior with no center poles, maximizing space for linear equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over a 40-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Sheltered Walkways: Perfect for creating long, weather-protected paths for guests between event buildings or parking areas.
• Narrow Vendor Rows: The 10-foot depth is ideal for street fairs and festivals where space is restricted to sidewalks or curbs.
• Sidewalk Cafe Extensions: Provides a professional, house-like aesthetic for restaurants looking to expand outdoor seating.
• Branded Exhibition Tunnels: The gable ends and elongated shape create a high-impact "walk-through" experience for corporate activations.

Compatibility and Inclusions

The 10' x 40' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 40-foot gable inventory.
