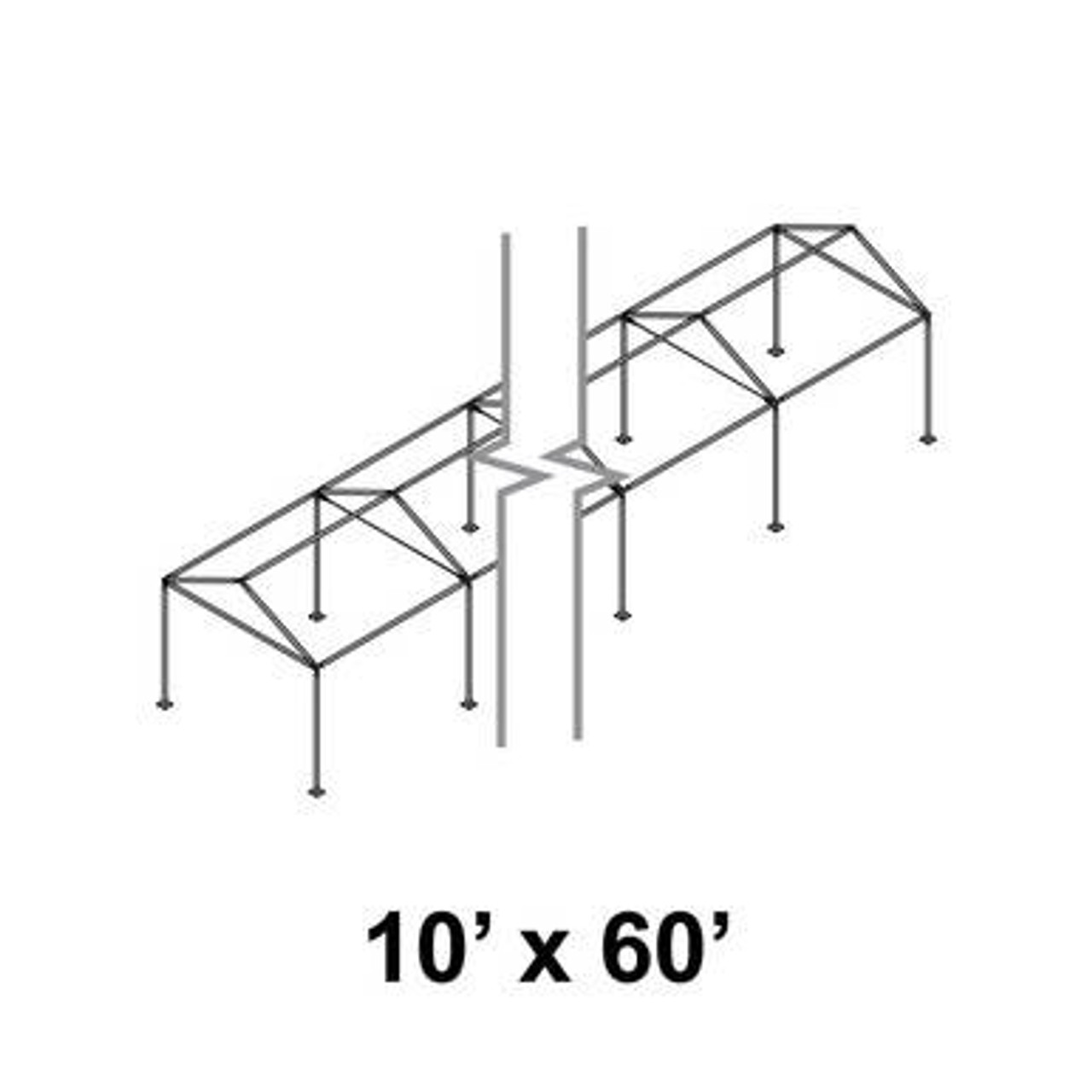

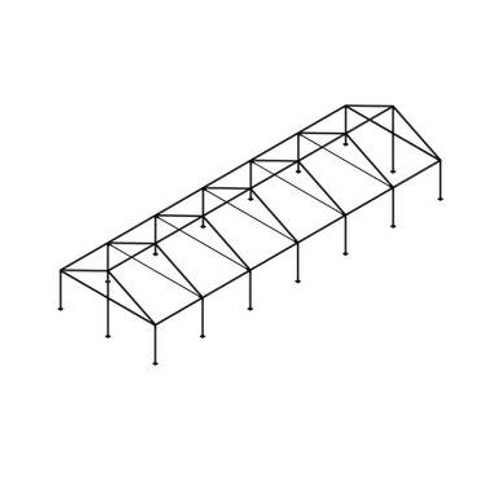

10' x 60' Gable Series Frame

10' x 60' Gable Series Frame

The 10' x 60' Gable Series Frame is a specialized commercial-grade hardware system designed to create a distinct, elongated house-style roofline for professional event shelters. For rental companies and event planners, the Gable Series offers a unique architectural alternative to standard hip-roof frames, featuring vertical end panels that allow for clean branding, high-visibility signage, or a seamless flush connection to existing buildings. This kit includes the complete 2" diameter aluminum tubing and high-strength steel fittings required to construct a rigid 600-square-foot skeleton. Engineered for the heavy-duty requirements of the rental industry, this frame provides a stable, clear-span interior without the need for center poles, maximizing the usable space for high-traffic logistics and elongated event layouts.

The Gable design is particularly valued for its "A-frame" aesthetic, providing a professional and inviting look for long vendor rows, VIP walkways, or narrow hospitality extensions. Because the frame is a West Coast Style system, it is compatible with standard 2" OD (outer diameter) components, allowing for easy maintenance and part replacement within existing inventories. This 10' x 60' configuration is optimized for rapid tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may not be possible. This frame is precisely engineered to support 16 oz. blockout vinyl tops, ensuring the structure remains stable and professional during a multi-day event setup.

Why the 10' x 60' Gable Series Frame Matters

The 10' x 60' Gable Series Frame matters because it provides a specific functional and aesthetic solution that standard peak tents cannot accommodate. The flat vertical ends (gables) make this frame the ideal choice for "linking" tents together or butting them up against a permanent structure to create a weather-protected transition. For logistics teams, the narrow 10-foot width combined with the 60-foot length is critical for sidewalk coverage, narrow alleyways, or long-form registration lines where every square foot of floor space must remain unobstructed. This frame ensures structural safety through its use of 6061-T6 aluminum, providing a lightweight yet rugged solution that simplifies teardown and transport while maintaining the durability required for repeat rental cycles.

Key Features

• Clear-Span Design: Eliminates center poles to provide 600 square feet of unobstructed interior space.
• Heavy-Duty Aluminum Tubing: Constructed from 2" OD 6061-T6 structural aluminum for an optimal strength-to-weight ratio.
• Gable Roof Profile: Features vertical end rafters that create a house-shaped silhouette, perfect for branding and building attachments.
• Interchangeable Components: Built to West Coast Style specifications, ensuring compatibility with standard commercial frame tent parts.
• Galvanized Steel Fittings: Includes high-strength welded steel fittings with a zinc-plated finish to prevent corrosion.
• Professional Versatility: Ideal for use on surfaces where staking is restricted, providing a reliable event setup via weighted ballasting.

Specifications

Ideal for / Best Uses

• Elongated Vendor Rows: The gable ends provide a flat surface for hanging banners and high-visibility branding at festivals.
• Building Extensions & Egress: Perfect for creating long, covered "porches" or entry extensions for restaurants and venues.
• VIP Walkways & Red Carpets: Provides a professional, sheltered path for guests between buildings or across long venues.
• Sidewalk Sales: A unique asset for rental companies looking to provide shelter in narrow, urban footprints.

Compatibility and Inclusions

The 10' x 60' Gable Series Frame is designed specifically for Gable Series vinyl tops and will not fit standard hip-style frame tent tops. This product includes the aluminum rafters, spreaders, legs, and steel fittings; it does NOT include the vinyl top, sidewalls, or anchoring kits. For a safe event setup, the frame must be appropriately secured using stakes or weights according to local wind load requirements. During maintenance, inspect the spring buttons and welded joints of the fittings to ensure continued structural integrity for future deployments.
