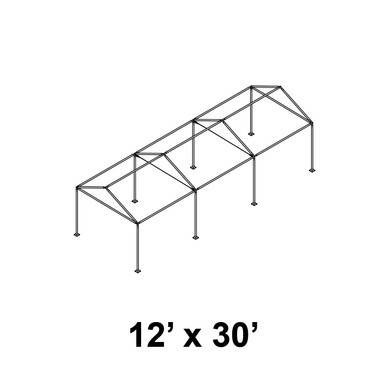

12' x 30' Gable Series Frame

12' x 30' Gable Series Frame

The 12' x 30' Gable Series Frame is a professional-grade hardware system designed to create a 360-square-foot "house-style" architectural profile. For rental companies and event planners, this frame provides the essential structural skeleton required to support an elongated gable-ended canopy. Unlike traditional hip-roof frames that slope on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a seamless, sheltered corridor between permanent structures. This kit includes all the necessary heavy-duty aluminum rafters, spreaders, and reinforced steel fittings required to maintain a rigid 30-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the entire 30-foot length. Because this is a frame-supported system, it does not require center poles, maximizing the 360 square feet of usable space for dining, vendor rows, or sheltered pedestrian walkways. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and high-capacity rental operations.

Why the 12' x 30' Gable Series Frame Matters

The 12' x 30' Gable Series Frame matters because it offers a unique functional solution for narrow spaces that require a bit more depth than a standard 10-foot wide tent. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 12-foot width is ideal for sidewalk extensions or patio areas where a 15-foot or 20-foot wide tent would be too large. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for specialized events.

Key Features

• Clear-Span Elongated Design: Provides a completely open 12' x 30' interior with no center poles, maximizing space for equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over the 30-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Sheltered Pedestrian Corridors: Perfect for creating weather-protected paths between buildings or transit hubs.
• Boutique Vendor Markets: The 12-foot depth provides extra breathing room for stalls compared to standard 10-foot setups.
• Branded Corporate Entryways: The gable ends create a high-impact entrance for product launches or VIP brand activations.
• Patio Hospitality Extensions: Provides a professional, "built-in" look for restaurants looking to expand outdoor seating in narrow urban footprints.

Compatibility and Inclusions

The 12' x 30' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 12-foot gable inventory.
