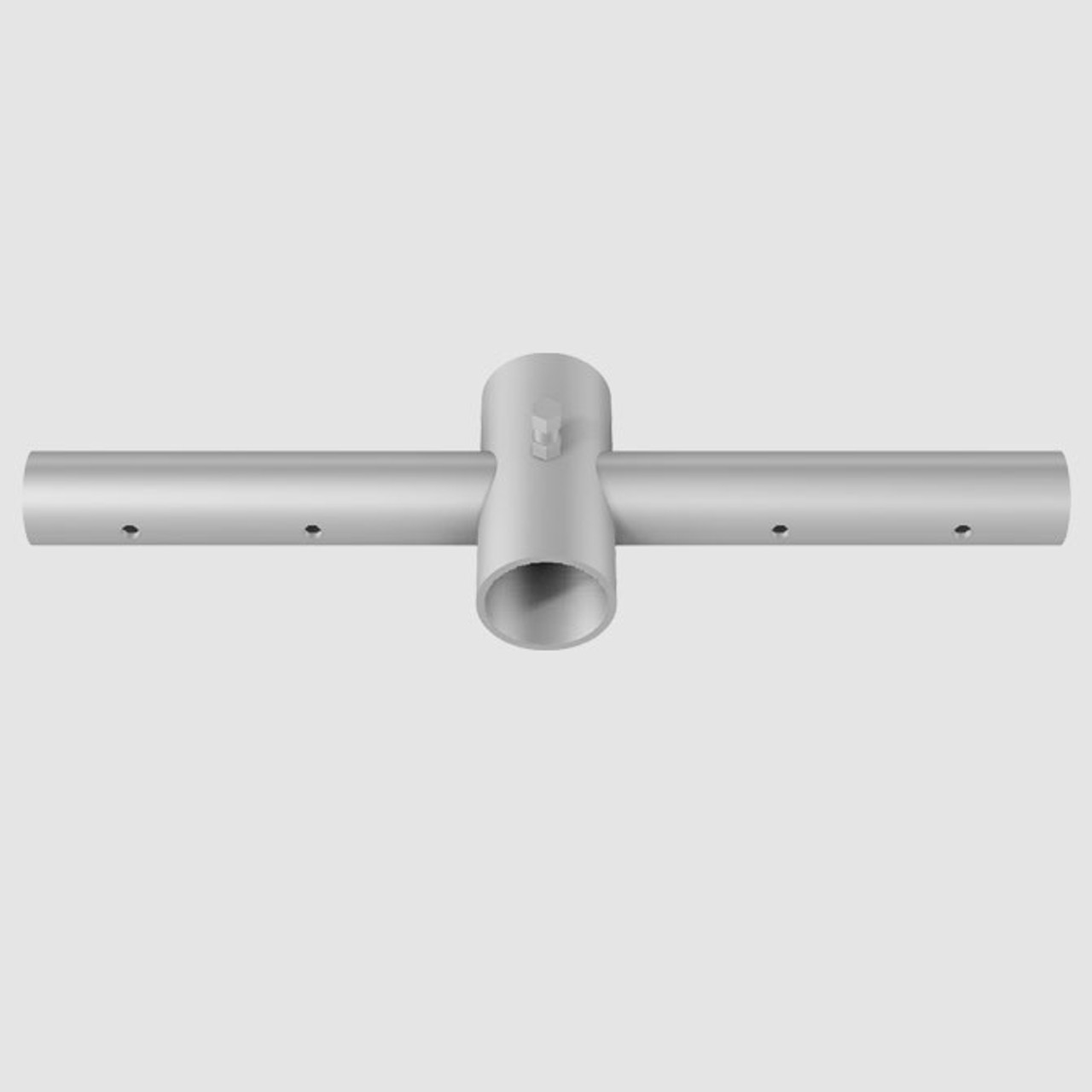

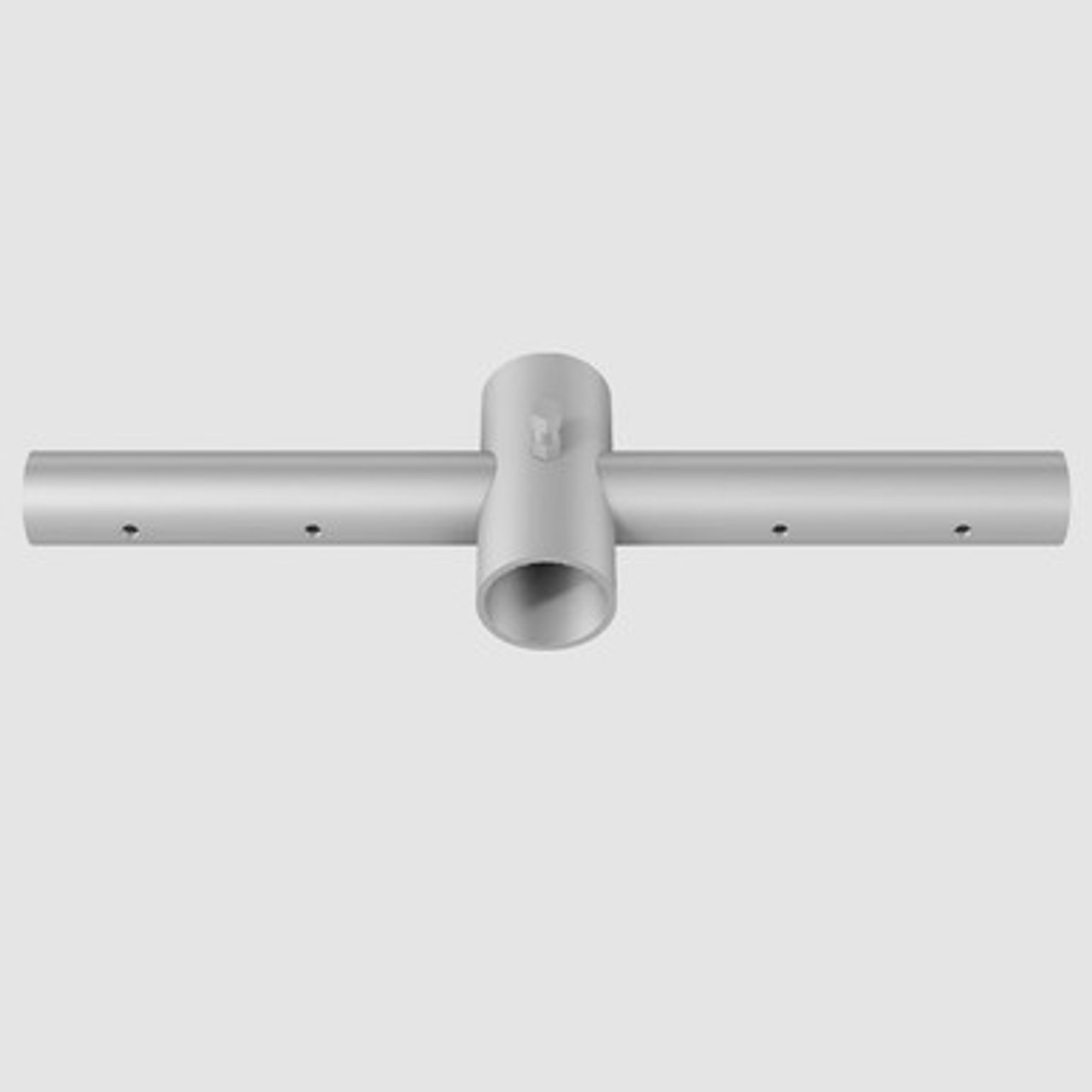

2 Way Straight Rail Fitting

2 Way Straight Rail Fitting for Classic Frame Tents

The 2 Way Straight Rail Fitting is a frame tent component designed to connect two rail skirt tubes at a single leg location in Classic Frame tent systems. Built for West Coast style frame tents, this fitting allows crews to create a continuous rail line along the perimeter of the tent or divide interior sections for more structured event layouts.

Ideal for event rental companies and installation crews, this fitting supports efficient tent installation by providing a secure and repeatable connection point. Whether you are installing sidewalls, creating partitioned areas, or reinforcing a clean perimeter finish, the 2 way straight rail fitting helps maintain alignment and consistency across your frame setup.

Why This Straight Rail Fitting Matters

Rail systems are essential for attaching sidewalls and defining tent boundaries. This fitting allows two rail tubes to connect in a straight line at a single leg, helping crews maintain a continuous rail skirt system without gaps or misalignment. The result is improved structural organization, better sidewall support, and a more professional finished appearance.

Using the correct rail fitting also improves workflow efficiency by ensuring compatibility with standard frame tent tubing and fittings, reducing installation time and minimizing adjustments during setup and teardown.

Key Features

• Designed for West Coast style Classic Frame tent systems
• Connects two rail skirt tubes at a single leg location
• Features two protrusions at 180 degrees for straight rail alignment
• Allows creation of continuous perimeter rail systems or interior divisions
• Pre-drilled holes support secure connection with pin fasteners
• Large opening accommodates 1.75" to 2.00" diameter leg tubing
• Constructed from 1.25" schedule 40 steel pipe for durability
• Zinc-coated finish helps resist corrosion and wear

How to Use and Install

1. Position the Fitting on the Leg

Slide the fitting onto the tent leg tubing at the desired height. Ensure it is positioned evenly with other rail fittings to maintain consistent alignment.

2. Align Rail Tubing

Insert the rail skirt tubes into the two opposing protrusions. The straight 180-degree design ensures a continuous rail connection along the tent perimeter.

3. Secure Connections

Align the holes in the tubing with the fitting and insert pin fasteners to lock the connections in place. Ensure all pins are fully seated before proceeding.

4. Tighten and Stabilize

Adjust the fitting position if needed and secure it firmly on the leg tubing to prevent movement during setup and use.

5. Complete Tent Setup

Continue installing remaining rail fittings, sidewalls, and frame components. Proceed with standard tent installation, including
