20' x 60' Gable Series Frame

20' x 60' Gable Series Frame

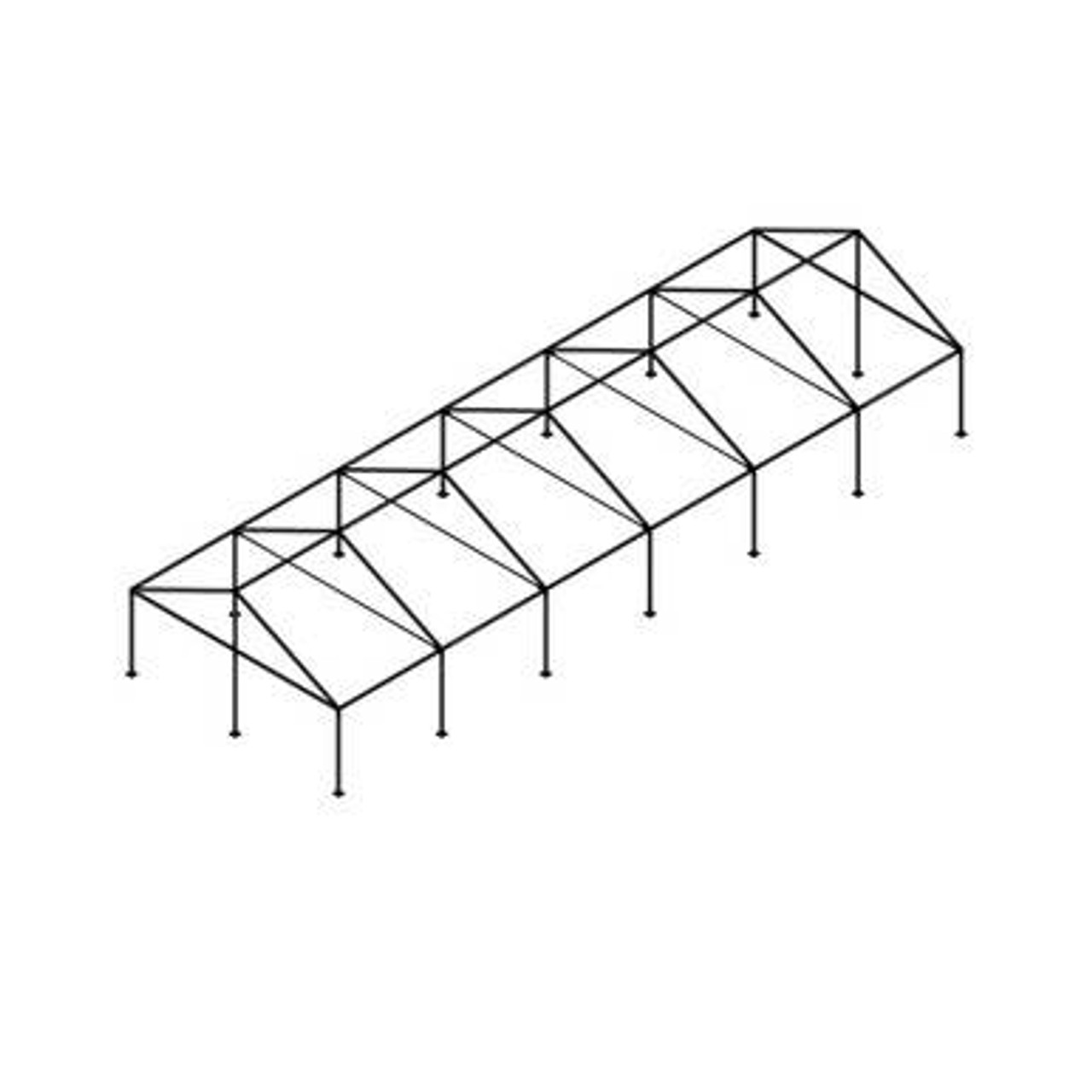

The 20' x 60' Gable Series Frame is a heavy-duty, commercial-grade hardware system designed to create a massive 1,200-square-foot "house-style" architectural profile. For rental companies and large-scale event planners, this frame serves as the essential structural skeleton for an expansive gable-ended canopy. Unlike traditional hip-roof frames that slope downward on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a clean, flush connection to existing structures. This kit includes all the necessary aluminum rafters, spreaders, and heavy-duty steel fittings required to maintain a rigid 60-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height that spans the entire length of the structure. Because this is a frame-supported system, it does not require center poles, maximizing the 1,200 square feet of usable space for large banquet seating, elongated vendor rows, or sheltered pedestrian corridors. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be restricted. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, modern lines required for high-end logistics and rental operations.

Why the 20' x 60' Gable Series Frame Matters

The 20' x 60' Gable Series Frame matters because it offers a sophisticated visual and functional alternative to the standard "pyramid" look of traditional large frame tents. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 20-foot width combined with a 60-foot length is ideal for creating long, unobstructed spaces for ceremonies, corporate presentations, or industrial storage. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for massive linear events.

Key Features

• Clear-Span Elongated Design: Provides a completely open 20' x 60' interior with no center poles, maximizing space for equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over a 60-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Large Wedding Ceremonies: The gable ends and open interior create a sophisticated, chapel-like feel for outdoor vows.
• Corporate Gala Events: Provides a professional, branded environment for award ceremonies, networking, or sheltered banquets.
• Elongated Vendor Rows: The 20-foot depth and 60-foot length are ideal for regional festivals where multiple stalls are sheltered under one roof.
• Industrial Temporary Shelters: A cost-effective, clear-span solution for long-term storage or sheltered workspace on construction sites.

Compatibility and Inclusions

The 20' x 60' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 60-foot gable inventory.
