3 Way Corner Rail Fitting

3 Way Corner Rail Fitting for Classic Frame Tents

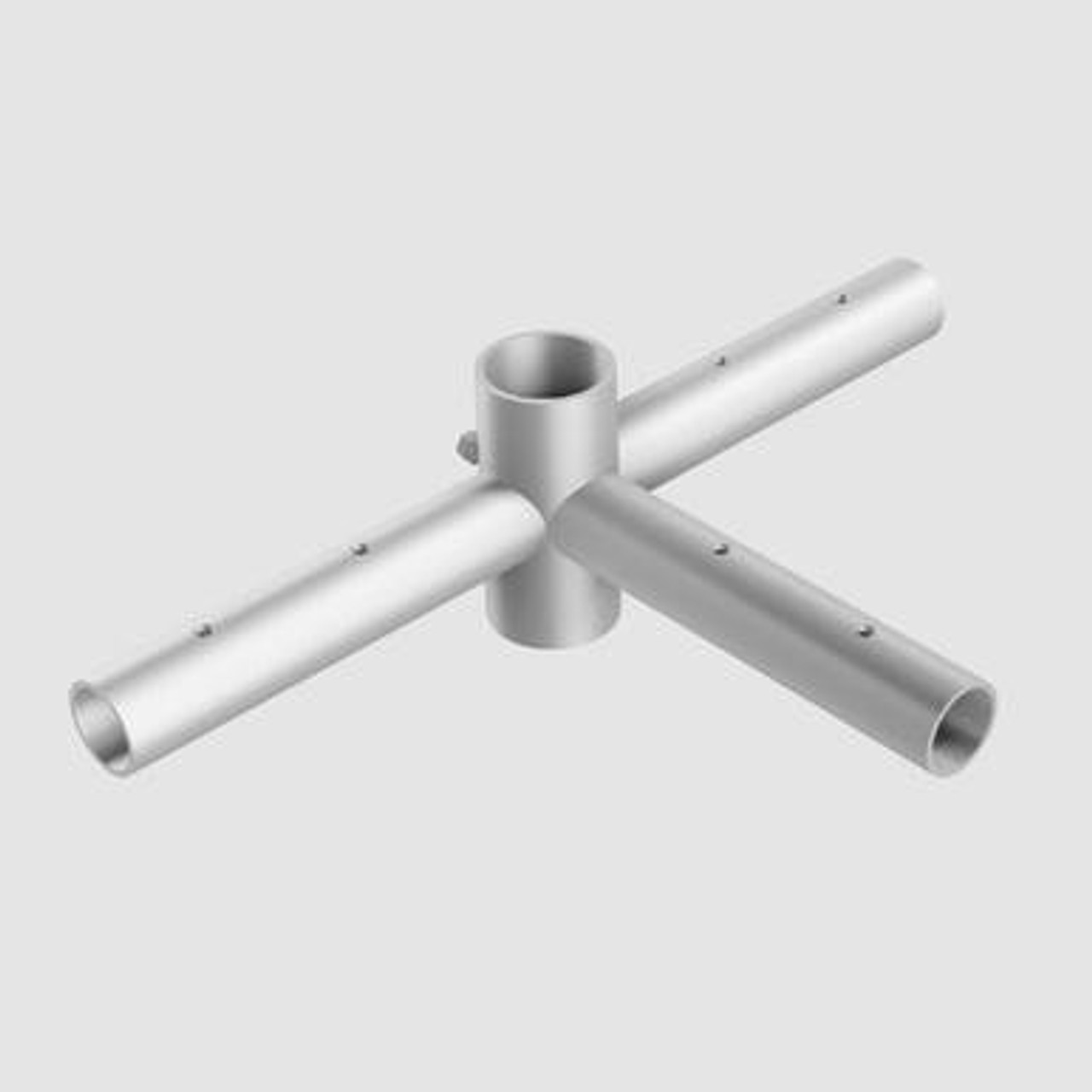

The 3 Way Corner Rail Fitting is a frame tent component designed to connect three rail skirt tubes at a single leg position in Classic Frame tent systems. Built for West Coast style frame tents, this fitting allows crews to create clean 90-degree corner connections while extending rail systems in multiple directions.

Ideal for event rental companies and installation crews, this fitting is commonly used for rail curtains, banners, and interior dividers. By creating a three-way connection point, it supports more complex layouts while maintaining alignment and consistency throughout the tent installation process.

Why This 3 Way Corner Rail Fitting Matters

Rail systems are essential for attaching sidewalls, banners, and partitioning sections within a tent. The 3 way corner rail fitting allows crews to build out these systems efficiently by connecting rail tubing at right angles from a single point. This improves structural organization and helps maintain a clean, professional layout.

In larger or more detailed event setups, this fitting makes it easier to create walkways, entrances, or divided spaces without disrupting the overall frame structure. It also reduces installation time by eliminating the need for custom adjustments or additional fittings.

Key Features

• Designed for West Coast style Classic Frame tent systems
• Connects three rail skirt tubes at 90-degree angles
• Supports installation of rail curtains, banners, and divider systems
• Allows creation of interior partitions and walkway railings
• Pre-drilled holes enable secure connection with pin fasteners
• Large opening fits around 1.75" to 2.00" diameter leg tubing
• Constructed from 1.25" schedule 40 steel pipe for durability
• Zinc-coated finish helps resist corrosion and wear

How to Use and Install

1. Position the Fitting on the Leg

Slide the fitting onto the tent leg tubing at the desired height. Ensure it aligns with other rail fittings to maintain a consistent rail system.

2. Insert Rail Tubing

Attach rail skirt tubes into each of the three protrusions. The 90-degree design allows rails to extend in multiple directions from a single point.

3. Align Connection Points

Adjust the tubing until the holes in the pipes align with the fitting. Proper alignment ensures a secure and stable connection.

4. Secure with Pins

Insert pin fasteners through the aligned holes to lock each rail into place. Ensure all pins are fully inserted before proceeding.

5. Tighten and Stabilize

Secure the fitting to the leg tubing by tightening the bolt once it is positioned correctly. This prevents movement during setup and use.

Specifications

• Product Type: 3 way corner rail fitting
• Compatibility: West Coast style Classic Frame tent systems
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc-coated for corrosion resistance
• Connection Type: Three-way 90-degree rail connection
• Leg Compatibility: Fits 1.75" to 2.00" diameter leg tubing
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Weight: 4.00 lbs
• Strength: 45,000 PSI
• SKU: F233WCRF

Compatibility and Important Notes

• Designed for use with Classic Frame tent rail systems
• Used for rail skirts, banners, and interior dividers
• This is a replacement or individual component, not a complete frame system
• Pin fasteners are required for installation and may be sold separately
• Ensure compatibility with existing tubing and fittings before use

Ideal For

• Event rental companies installing sidewalls and divider systems
• Frame tent layouts requiring multi-directional rail connections
• Walkways, entrances, and partitioned event spaces
• Install crews focused on efficient and repeatable workflows
• Applications requiring clean and secure rail system connections
