3 Way Crown

3 Way Crown for West Coast Style Frame Tent Systems

The 3 Way Crown is a critical frame tent fitting used in West Coast Style frame tent systems to connect rafters and define the structural shape at the end of smaller rectangular tents. Designed for professional event rental companies and installation crews, this crown fitting plays a key role in maintaining alignment, stability, and proper load distribution during tent installation.

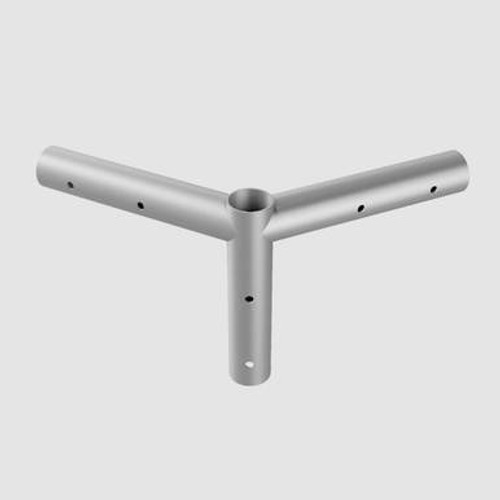

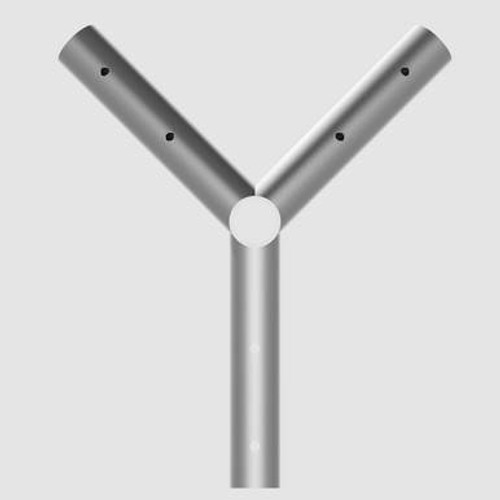

Typically used in pairs, the 3 Way Crown is installed at each end of compatible frame tents to connect two angled rafters and one horizontal spreader. This configuration helps form the tent's roof structure while ensuring consistent tension across the frame. Built from durable steel and finished with zinc plating, this fitting is engineered for repeated use in demanding setup and teardown environments.

Why This 3 Way Crown Matters

In frame tent systems, crown fittings are responsible for connecting multiple structural components while maintaining proper angles and alignment. The 3 Way Crown ensures that rafters are positioned correctly, which directly impacts the overall strength and stability of the tent. Without properly functioning crown fittings, tent installation becomes less efficient and structural integrity can be compromised.

For rental operations, having reliable replacement parts like this crown fitting helps keep inventory operational and reduces downtime between events.

Key Features

• Designed for West Coast Style frame tent systems
• Used in pairs on rectangular tents 8', 10', 12', and 15' wide
• Connects two angled rafters and one horizontal spreader
• Manufactured from 1.25 inch schedule 40 steel pipe
• Zinc plated finish provides corrosion resistance
• Supports proper frame alignment and load distribution
• Designed for repeated use in rental and event environments
• Compact fitting ideal for smaller tent configurations

How to Use and Install

1. Identify Crown Placement

Locate the end positions of the frame tent where the crown fittings will be installed. The 3 Way Crown is typically used at both ends of smaller rectangular frame tents.

2. Position the Crown Fitting

Place the crown so that the two angled protrusions point toward the corners of the tent and the horizontal connection aligns with the opposing crown.

3. Attach Rafters

Slide the rafter poles onto the angled protrusions of the crown fitting. Ensure all connection points are aligned and properly secured using pins or fasteners.

4. Connect the Spreader

Attach the horizontal spreader tube between two crown fittings. This creates the structural connection across the length of the tent.

5. Complete Frame Assembly

Continue assembling the remaining frame components according to standard tent installation procedures. Always ensure all fittings are secure before raising the structure.

Specifications

• Fitting Type: 3 Way Crown
• Application: West Coast Style frame tent systems
• Compatible Tent Widths: 8', 10', 12', and 15'
• Material: Steel construction
• Pipe Type: 1.25 inch schedule 40 steel pipe
• Outside Diameter: 1.656 in
• Inside Diameter: 1.38 in
• Wall Thickness: 0.14 in
• Weight: 4.0 lbs
• Strength: 45000 PSI
• Finish: Zinc plated for corrosion resistance
• SKU: F073WC

Compatibility and Important Notes

• Designed specifically for West Coast Style frame tents
• Used in pairs for proper structural support
• Intended for smaller rectangular tent sizes only
• Not a standalone component, must be used within a full frame system
• Ensure matching pipe size and frame type before installation

Ideal For

• Event rental companies replacing worn or damaged crown fittings
• Install crews assembling smaller frame tent systems
• Maintenance and repair of existing tent inventory
• Applications requiring reliable frame connections and alignment
• Operations focused on efficient setup and long-term durability
