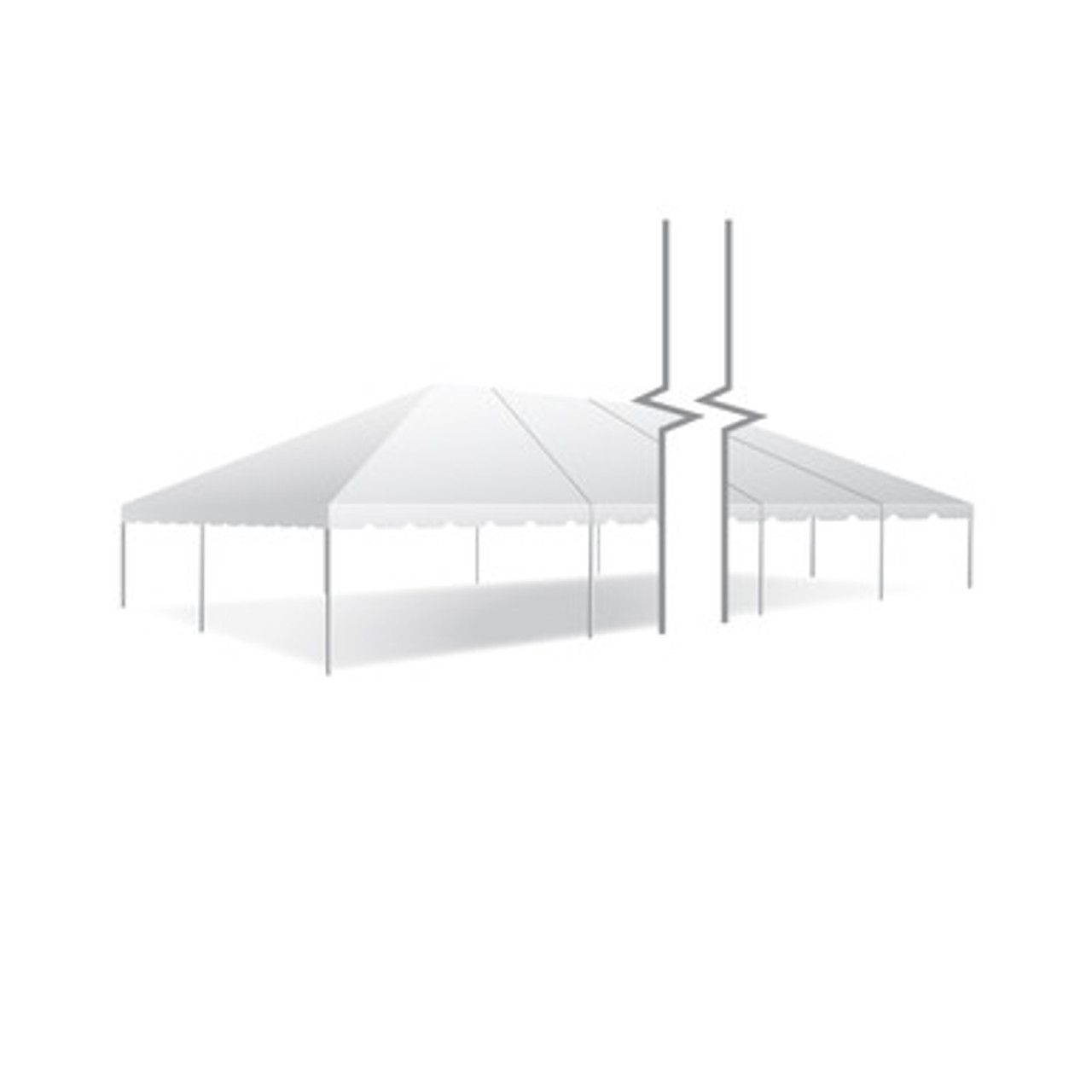

30' x 225' Classic Series Frame Tent, Sectional Tent Top, Complete

Write a Review

View Description & Specifications

sku: C06Z30X225

SKU:: C06Z30X225
UPC:
Weight:: 0.00 LBS
option|Fabric Top|~:: {"030015CFGA5050":{"030015CFGA5050":1,"030015CFMA5050":13,"030015CFLA5050":1}}
option|Fabric Top|~:: {"030015CFGA5051":{"030015CFGA5051":1,"030015CFMA5051":13,"030015CFLA5051":1}}
option|Fabric Top|~:: {"030015CFGA5052":{"030015CFGA5052":1,"030015CFMA5052":13,"030015CFLA5052":1}}
option|Fabric Top|~:: {"030015CFGA5053":{"030015CFGA5053":1,"030015CFMA5053":13,"030015CFLA5053":1}}
option|Fabric Top|~:: {"030015CFGADP":{"030015CFGADP":1,"030015CFMADP":13,"030015CFLADP":1}}
option|Fabric Top|~:: {"030015CFGADPL":{"030015CFGADPL":1,"030015CFMADPL":13,"030015CFLADPL":1}}
option|Eave Height & Tube Material/Type:: {"KITCFAS03022507":1,"KITCFET03022507":1,"KITCFAS03022508":1,"KITCFET03022508":1}
option|Stake Size (Includes Ratchet Assemblies):: {"ACTS4211":{"ACTS4211":34,"AC05SGR":34}}
option|Sidewalls|Eave Height & Tube Material/Type:KITCFAS03022507:: {"ACSW730R5050":17,"ACSW730WINCA":17,"ACSW730RDP":17,"ACSW730RDPL":17}
option|Sidewalls|Eave Height & Tube Material/Type:KITCFET03022507:: {"ACSW730R5050":17,"ACSW730WINCA":17,"ACSW730RDP":17,"ACSW730RDPL":17}
option|Sidewalls|Eave Height & Tube Material/Type:KITCFAS03022508:: {"ACSW830R5050":17,"ACSW830WINCA":17,"ACSW830RDP":17,"ACSW830RDPL":17}
option|Sidewalls|Eave Height & Tube Material/Type:KITCFET03022508:: {"ACSW830R5050":17,"ACSW830WINCA":17,"ACSW830RDP":17,"ACSW830RDPL":17}
option|Tent Liner|Yes/No:: {"FTLC3015E":{"FTLC3015E":1,"FTLC3015M":13}}

Choose Options

Current Stock:

Quantity:

Adding to cart… The item has been added

$27,324.03

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

Overview
Product Videos

Overview

Product Description

The Classic Series Frame tent is a tent which utilizes a simple frame to support the tent top, maximizing the usable space available underneath the tent. All Classic Series Frame tents use West Coast Style frames and fittings, making them interchangeable with all other frames and fittings in this style. Frame tents need to be staked to the ground or otherwise anchored for maximum stability.


Specifications

Width	30 ft. / 9.1m
Length	225 ft. / 68.6m
Area	6750 ft² / 624.3 m²
Eave Height	7' / 2.1m \| 8' / 2.4m
Overall Height	14'6" / 4.4m \| 15'6" / 4.7m
Pitch	7'6" / 2.3m
Complete Weight Aluminum	3741 Lbs. / 1697 Kg. \| 3778 Lbs. / 1714 Kg.
Complete Weight Aluminum Hybrid	4431 Lbs. / 2010 Kg. \| 4510 Lbs. / 2046 Kg.
Series / Brand	Classic
Class	Frame
Center Pole	No
Style / Shape	Traditional
Expandable	Yes
Custom Printing Available	Yes
Fabric Material	PVC Coated Polyester
Fabric Material Weight	16 oz. / yd2 / 540 gsm
Fabric Translucency	Blockout
Water Repellency	Waterproof
Flame Resistant	Yes
UV Resistant	Yes
Mold and Mildew Resistant	Yes
Frame / Pole Material	Aluminum OR Galvanized
Longest Component	21'10.5" / 6.7m
Persons required for setup	6-12
Occupancy	675 Sit Down Dinner - 1125 Cathedral Seating

Literature

Warranty

CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.

If a printing option is chosen. The following warranty will apply to printing:
Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
