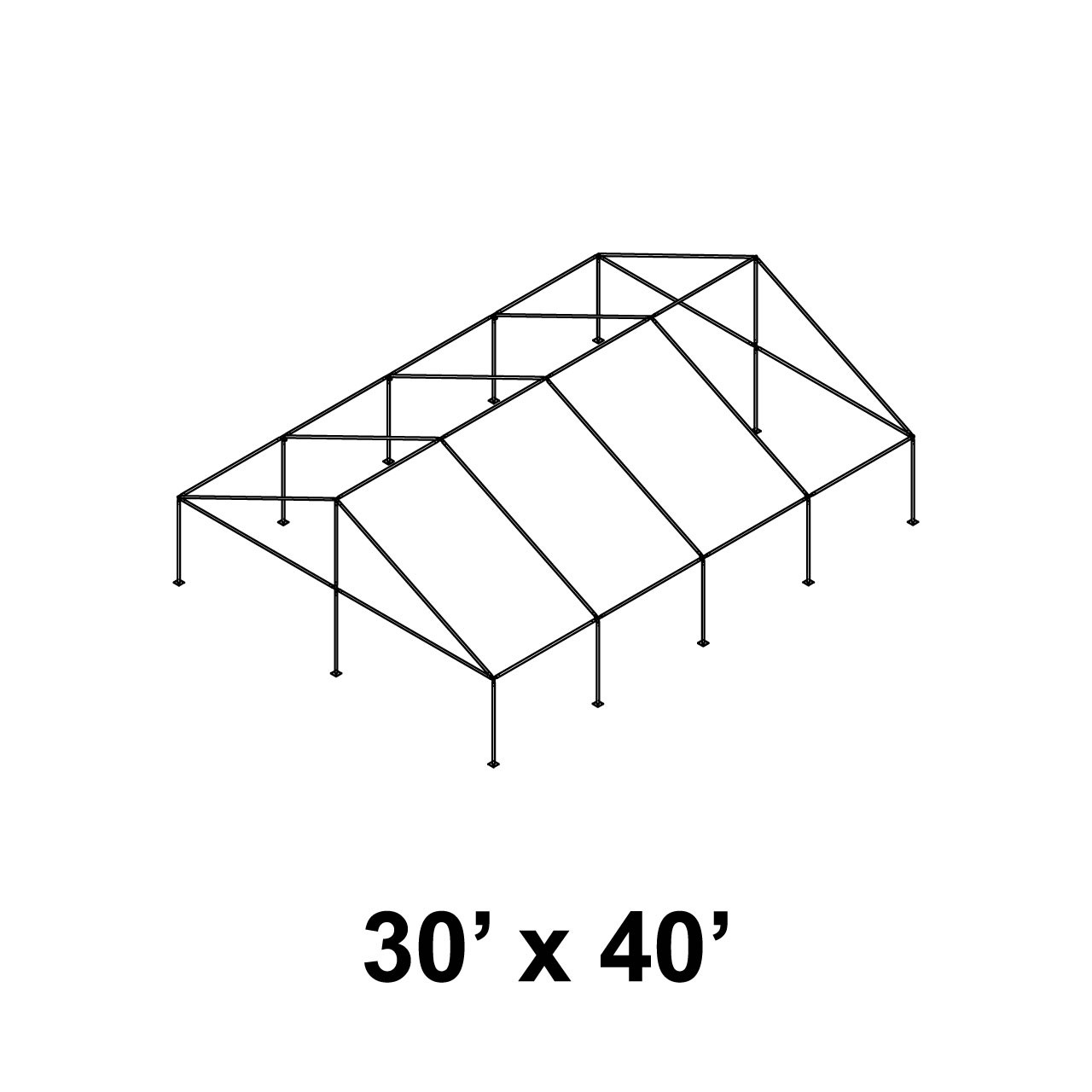

30' x 40' Gable Series Frame

30' x 40' Gable Series Frame

The 30' x 40' Gable Series Frame is a heavy-duty, commercial-grade hardware system designed to support a 1,200-square-foot clear-span event shelter with a professional "house-style" architectural profile. For rental companies and event planners, this frame provides the essential structural skeleton required to create a wide-span, gable-ended canopy. Unlike traditional hip-roof frames that slope downward on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a seamless, flush connection against building facades. This kit includes all the necessary heavy-duty aluminum rafters, spreaders, and reinforced steel fittings required to maintain a rigid 40-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the entire 40-foot length, offering significantly more interior volume at the ends than standard frame tents. Because this is a frame-supported system, it does not require center poles, maximizing the 1,200 square feet of usable space for banquet seating, presentation stages, or retail showrooms. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and rental operations.

Why the 30' x 40' Gable Series Frame Matters

The 30' x 40' Gable Series Frame matters because it provides a professional, structural solution for mid-to-large capacity events requiring a specific visual aesthetic and clear-span coverage. For businesses and rental companies, the vertical gable ends offer a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 30-foot width provides a substantial footprint that can accommodate complex floor plans, while the 40-foot length makes it ideal for corporate gatherings or creating high-end sheltered spaces at festivals. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment.

Key Features

• Clear-Span Architecture: Provides a completely open 30' x 40' interior with no center poles, maximizing space for furniture, staging, and guest movement.
• Gable-End Design: Features vertical end-caps that offer a unique architectural look and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features reinforced, welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity.
• Versatile Mounting: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Corporate Gala Events: The gable end provides a natural "backdrop" look for speakers, stages, and high-end AV equipment.
• Wedding Receptions: Creates a sophisticated, house-like structure that accommodates substantial banquet seating and dance floors.
• Branded Trade Show Hubs: The vertical ends allow for 1,200 square feet of coverage with maximum visibility for corporate logos at entry points.
• VIP Hospitality Pavilions: Provides an open, high-volume space for premium guest experiences at festivals or sporting events.

Compatibility and Inclusions

The 30' x 40' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 40-foot gable inventory.
