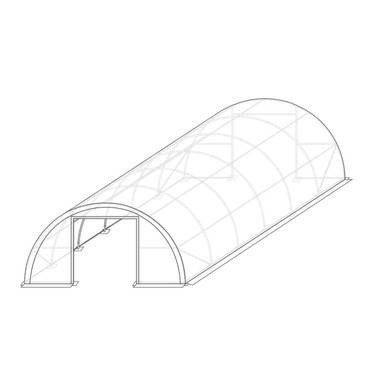

30'W x 65'L x 15'H Crestline Single Truss Arch Shelter, Arched Side
Celinas 30'W x 65'L x 15'H Crestline Single Truss Arch Shelter combines a 15 gauge, 11-arch steel frame with a durable fabric overlay to create an arched structure of unparalleled stability. The arches are spaced 6.56' apart along the length of the shelter, creating a curved surface that extends all of the way to the base plates. Perfect for industrial, commercial, and agricultural applications, Crestlines have been used as temporary storage buildings, housing for offices, workshops, or farm animals, or semi-permanent warehousing during intense factory cleaning or restoration.
Quick Reference List:
Single-Truss Arches - each arch consists of one tube
Arches Sides - frame curve extends to the ground (height decreases continually to the edge)
2.4" (60 mm) Steel Frame Tube, 1.9" (48 mm) Purlins
UV-treated, fire retardant cover
Front and back roll up zipper door
Zipper Door - zippers along the sides of the door need to be opened before the door is hoisted using a rope and pulley system
Door Dimensions: 12' 1" (3.7 m) Wide x 12' 6" (3.8 m) High
30'W x 65'L x 15'H Crestline Single Truss Arch Shelter, Arched Side
Literature
Warranty
CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
